MSKSEMIDatasheet (PDF)

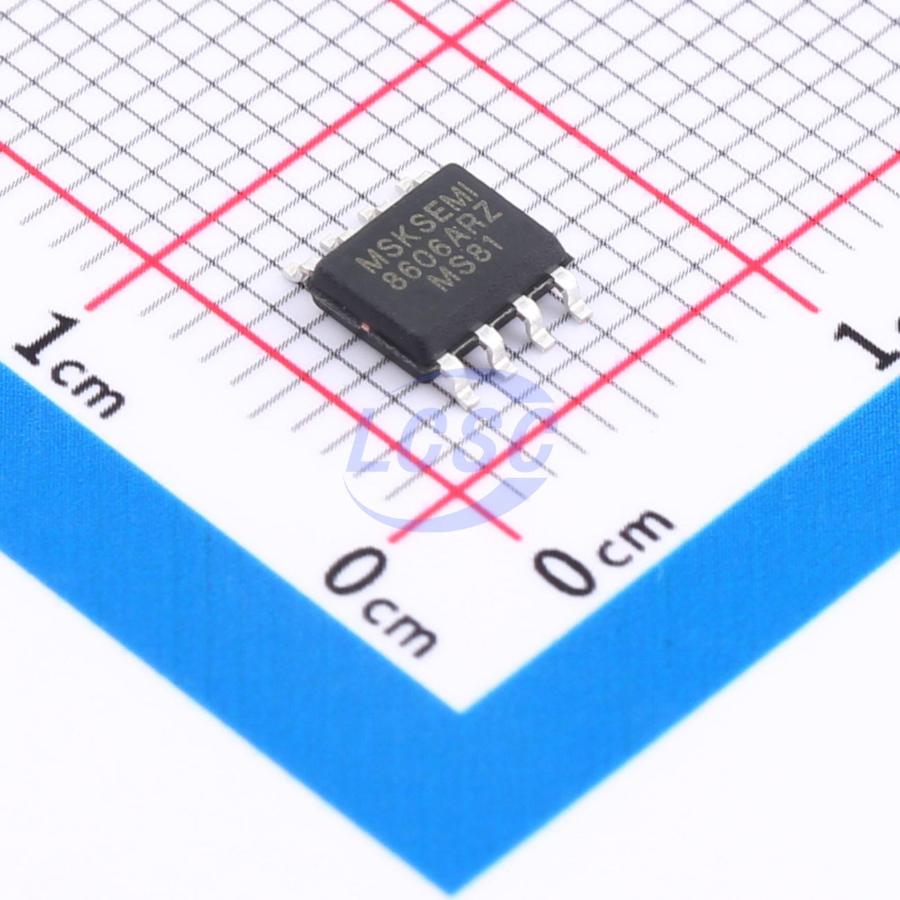

MSAD8606ARZ
26mA 2 2.5mV 6V/us 95dB 10pA 510uA 8MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSAD8606ARZ
- Store part #
- C49208533
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C49208533
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.33 | ₹161.65 |
| 50+ | ₹28.14 | ₹1,407.00 |
| 150+ | ₹26.35 | ₹3,952.50 |
| 500+ | ₹24.12 | ₹12,060.00 |
| 2,500+ | ₹23.11 | ₹57,775.00 |
| 5,000+ | ₹22.52 | ₹1,12,600.00 |
5 × ₹32.33
₹161.65
excl. GST
₹190.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MSAD8606ARZ
₹161.65 for 5 + GST
Specifications
- Output Current
- 26mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2.5mV
- Slew Rate
- 6V/us
- Input Offset Current(Ios)
- 5pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 600nV/℃
- Quiescent Current
- 510uA
- Gain Bandwidth Product
- 8MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.1V;1.1V~2.75V
- Single Supply
- 2.2V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.185 g
Overview
The MSAD860x series offers low-voltage operation and rail-to-rail input/output, along with an excellent speed-to-power ratio — delivering 8MHz bandwidth, 6.5V/μs slew rate, and 510μA quiescent current per amplifier at 5V. The op-amps are unity-gain stable and feature ultralow input bias current. The MSAD860x is designed to deliver performance in low-voltage systems. They provide rail-to-rail input/output with a maximum input offset voltage of 2.5mV. They also exhibit strong capacitive load drive capability at low supply voltages. Operating voltage range is 2.2V to 5.5V. The MSAD860x series op-amps are specified over the full temperature range of -40°C to +85°C on single or dual supplies from 2.2V to 5.5V.
Applications
- Photodiode amplification
- Active filters and buffers
- Battery-powered electronics
- Sensors
- Test equipment
Key features
- Input Offset Voltage: 2.5mV (maximum)
- Supply Current: 510μA/channel
- Supply Voltage Range: 2.2V to 5.5V
- Gain Bandwidth: 8MHz
- Slew Rate: 6.5V/μs
- Rail-to-Rail Input and Output
- Compact Packages: MSAD8605ARTZ-REEL7: SOT-23-5; MSAD8606ARZ: SOP-8; MSAD8608ARZ-REEL7: SOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP6022T-I/SN-MS#C54539956MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 5,215 | ₹41.69 · 5,215 in stock | View |
 | TLV9062IDR-MS#C54539963MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 2,025 | ₹23.28 · 2,025 in stock | View |
 | LMV722IDR-MS#C30602458MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 2,200 | ₹21.00 · 2,200 in stock | View |
