MSKSEMIDatasheet (PDF)

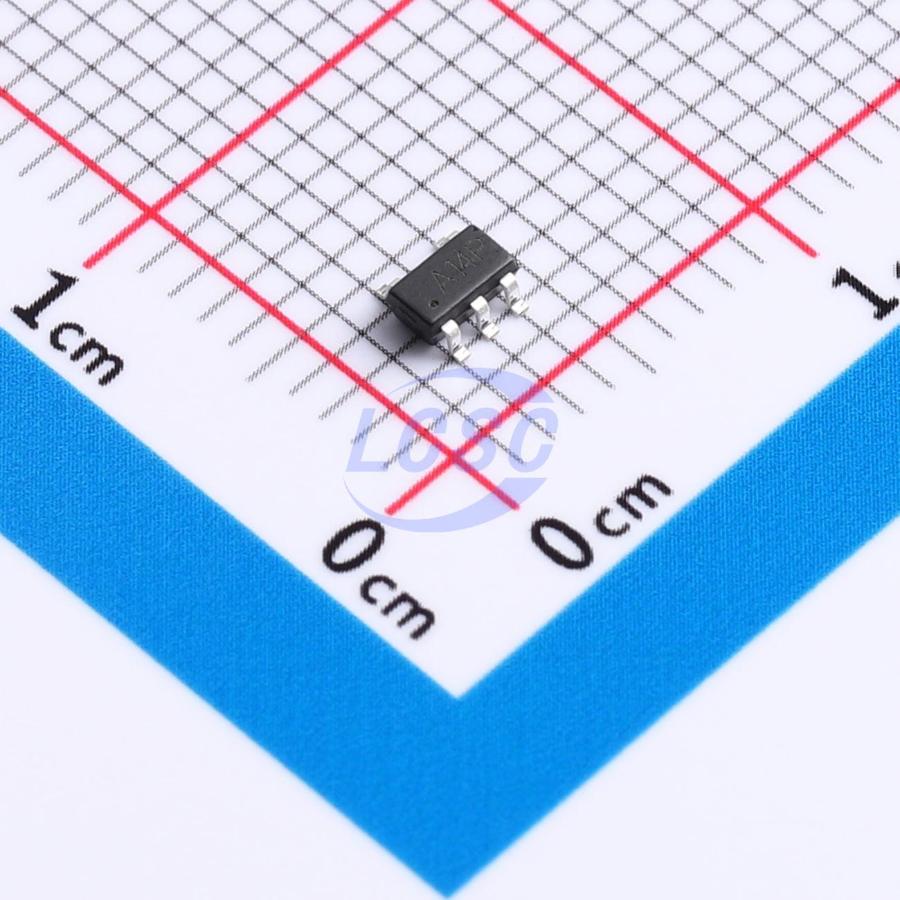

MSNCP1529ASNT1G
Step-down type 1.5MHz Adjustable 600mV~5.5V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators
SOT-23-5RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSNCP1529ASNT1G
- Store part #
- C49375212
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,640 in stock
#C49375212
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.44 | ₹127.20 |
| 50+ | ₹19.98 | ₹999.00 |
| 150+ | ₹17.64 | ₹2,646.00 |
| 500+ | ₹14.72 | ₹7,360.00 |
| 3,000+ | ₹13.42 | ₹40,260.00 |
| 6,000+ | ₹12.63 | ₹75,780.00 |
5 × ₹25.44
₹127.20
excl. GST
₹150.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSNCP1529ASNT1G
₹127.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Function
- Step-down type
- Frequency - Switching
- 1.5MHz
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2.2V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~5.5V
- Output Current
- 1A
- Quiescent Current
- 30uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
MSNCP1529ASNT1G is a compact 5V buck converter capable of delivering 1A output current. It employs a proprietary control loop to achieve fast transient load response, maintaining high conversion efficiency under both light-load and heavy-load conditions. The device features multiple protection functions, including input overvoltage protection, output short-circuit protection, overcurrent protection, and over-temperature protection. It integrates a power tree generator, bandgap voltage reference module, UVLO module, error amplifier, protection circuit, gate driver module, current sensing module, and two power MOSFETs. The product is available in a SOT23-5 package.
Applications
- Set-top boxes
- Solid-state drives
- Wireless network devices
- Security surveillance systems
- Toys
Key features
- Input operating range: 2.2-5.5V
- Input overvoltage protection threshold: 6V
- Quiescent current: 30uA
- Output current up to 1A
- Efficiency up to 95%
- OCP, short-circuit protection, and OTP
- SOT23-5 package
