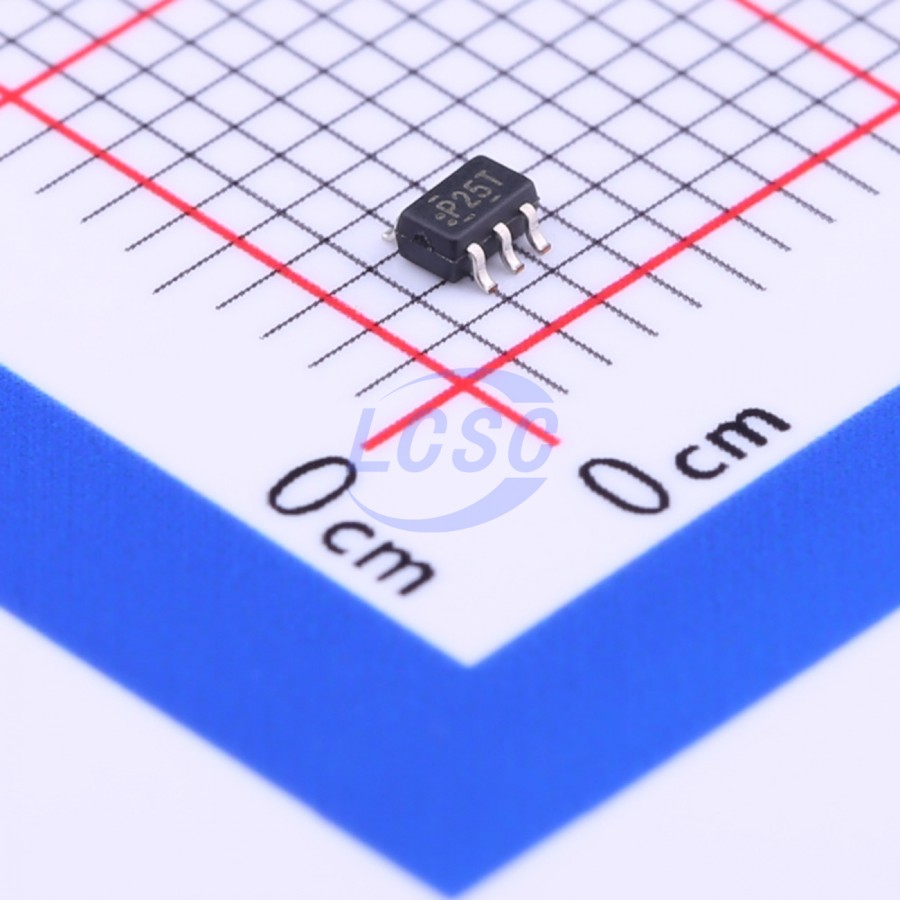

NC7SP125P5X
Buffer 1 Element 1 Bit per Element Tri-State Output SC-70-5
SC-70-5ROHS3 CompliantActive
TinyLogic ULP Buffer with 3-STATE Output
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SP125P5X
- Store part #
- C184652
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,500 in stock
#C184652
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.13 | ₹115.65 |
| 50+ | ₹19.16 | ₹958.00 |
| 150+ | ₹17.17 | ₹2,575.50 |
| 500+ | ₹15.68 | ₹7,840.00 |
| 3,000+ | ₹11.60 | ₹34,800.00 |
| 6,000+ | ₹11.01 | ₹66,060.00 |
5 × ₹23.13
₹115.65
excl. GST
₹136.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SP125P5X
₹115.65 for 5 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 2.6mA
- Voltage - Supply
- 0.9V~3.6V
- Series
- 7SP
- Current - Output Low(IOL)
- 2.6mA
- Output Type
- Tri-State
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 900nA
- Propagation Delay
- 3ns@3.3V,15pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Key features
- Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V.
- The internal circuit is composed of a minimum of inverter stages, including the output buffer, to enable ultra low static and dynamic power.
- The NC7SP125, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve best in class speed operation while maintaining extremely low CMOS power dissipation.
- 0.9V to 3.6V VCC supply operation, 3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V
- TinyLogic ULP and ULP - A with up to 50% less power consumption can extend your battery life significantly.
