NC7SV125P5X
0.9V~3.6V 1 1 1ns@3.3V,30pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS3 CompliantActive

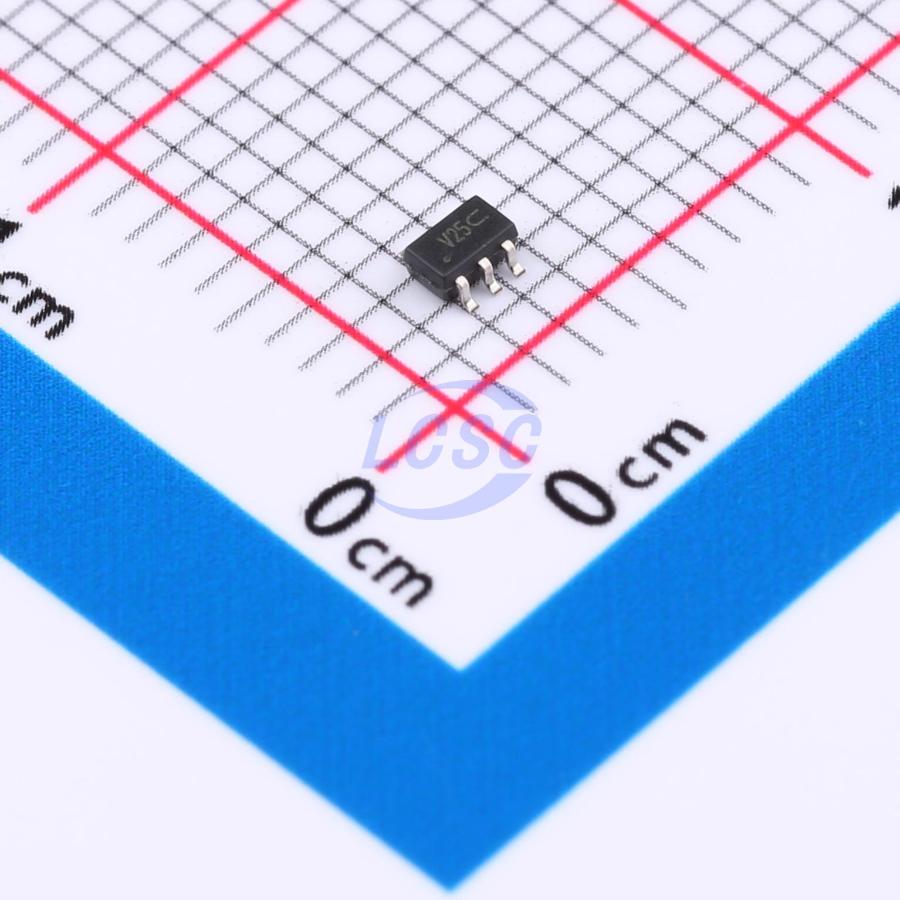

TinyLogic ULP-A Buffer with Three-State Output
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SV125P5X
- Store part #
- C891943
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,665 in stock
#C891943
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.69 | ₹118.45 |
| 50+ | ₹18.76 | ₹938.00 |
| 150+ | ₹16.66 | ₹2,499.00 |
| 500+ | ₹14.01 | ₹7,005.00 |
| 3,000+ | ₹12.85 | ₹38,550.00 |
| 6,000+ | ₹12.15 | ₹72,900.00 |
5 × ₹23.69
₹118.45
excl. GST
₹139.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SV125P5X
₹118.45 for 5 + GST
Specifications
- Voltage - Supply
- 0.9V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 900nA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 7SV
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 1ns@3.3V,30pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
The NC7SV125 is a single non−inverting 3−state buffer in tiny footprint packages. The device is designed to operate for VCC = 0.9 V to 3.6 V.
Key features
- Designed for 0.9 V to 3.6 V VCC Operation
- 1.0 ns tPD at 3.3 V (Typ)
- Inputs/Outputs Over−Voltage Tolerant up to 3.6 V
- IOFF Supports Partial Power Down Protection
- Source/Sink 24 mA at 3.3 V
- Available in SC−88A and MicroPak Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
