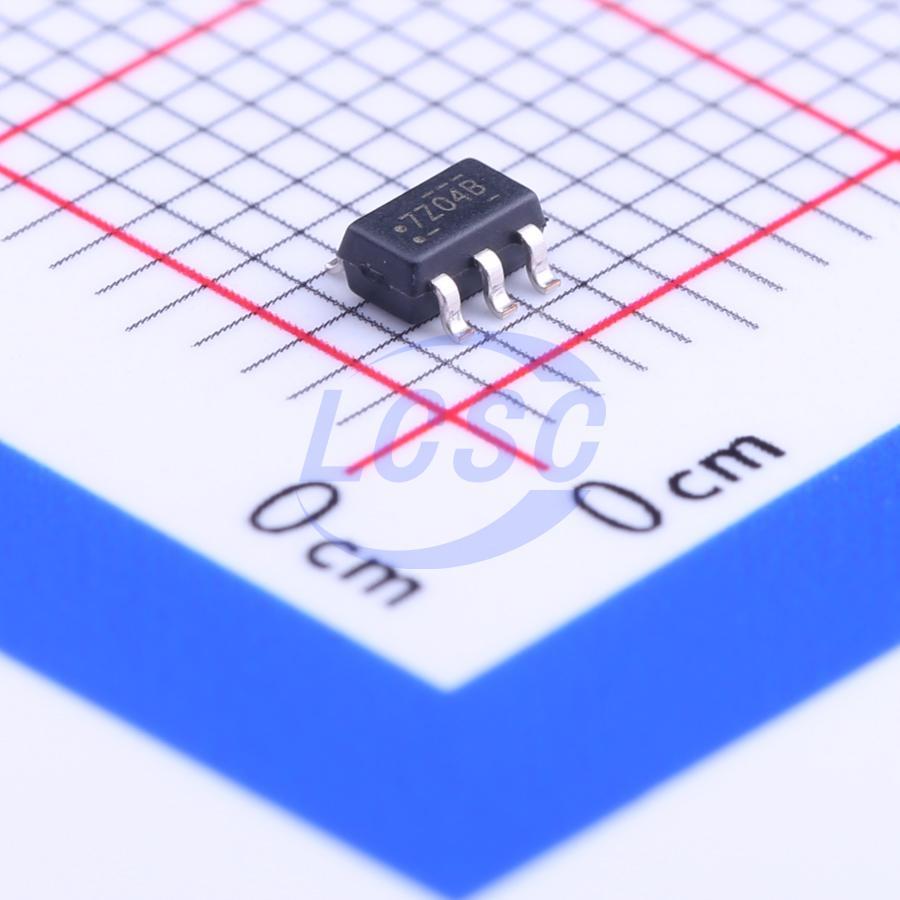

NC7SZ04M5X
StandardCMOS 1.65V~5.5V 4.3ns@5V,50pF 2uA 1 SC-74A-5 Gates and Inverters RoHS
SC-74A-5ROHS3 CompliantActive
TinyLogic UHs Inverter
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ04M5X
- Store part #
- C32090
- Package / case
- SC-74A-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,660 in stock
#C32090
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.22 | ₹92.20 |
| 100+ | ₹7.44 | ₹744.00 |
| 300+ | ₹6.55 | ₹1,965.00 |
| 3,000+ | ₹5.62 | ₹16,860.00 |
| 6,000+ | ₹5.09 | ₹30,540.00 |
| 9,000+ | ₹4.83 | ₹43,470.00 |
10 × ₹9.22
₹92.20
excl. GST
₹108.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ04M5X
₹92.20 for 10 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;240mV;300mV;400mV;550mV
- Propagation Delay
- 4.3ns@5V,50pF
- Features
- Power shutdown protection
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.55V;1.7V;2.2V;2.9V;4.4V;1.29V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
The NC7SZ04 is a single inverter from ON Semiconductor’s Ultra−High Speed (UHS) series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra−high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65 V to 5.5 V VCC operating range. The inputs and output are high−impedance when VCC is 0 V. Inputs tolerate voltages up to 5.5 V, independent of VCC operating voltage.
Key features
- Ultra−High Speed: tPD 2.4 ns (Typical) into 50 pF at 5 V VCC
- High Output Drive: ±24 mA at 3 V VCC
- Broad VCC Operating Range: 1.65 V to 5.5 V
- Matches Performance of LCX when Operated at 3.3 V VCC
- Power Down High−Impedance Inputs / Outputs
- Over−Voltage Tolerance Inputs Facilitate 5 V to 3 V Translation
- Proprietary Noise / EMI Reduction Circuitry
- Ultra−Small MicroPak Packages
- Space−Saving SC−74A and SC70 Packages
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
