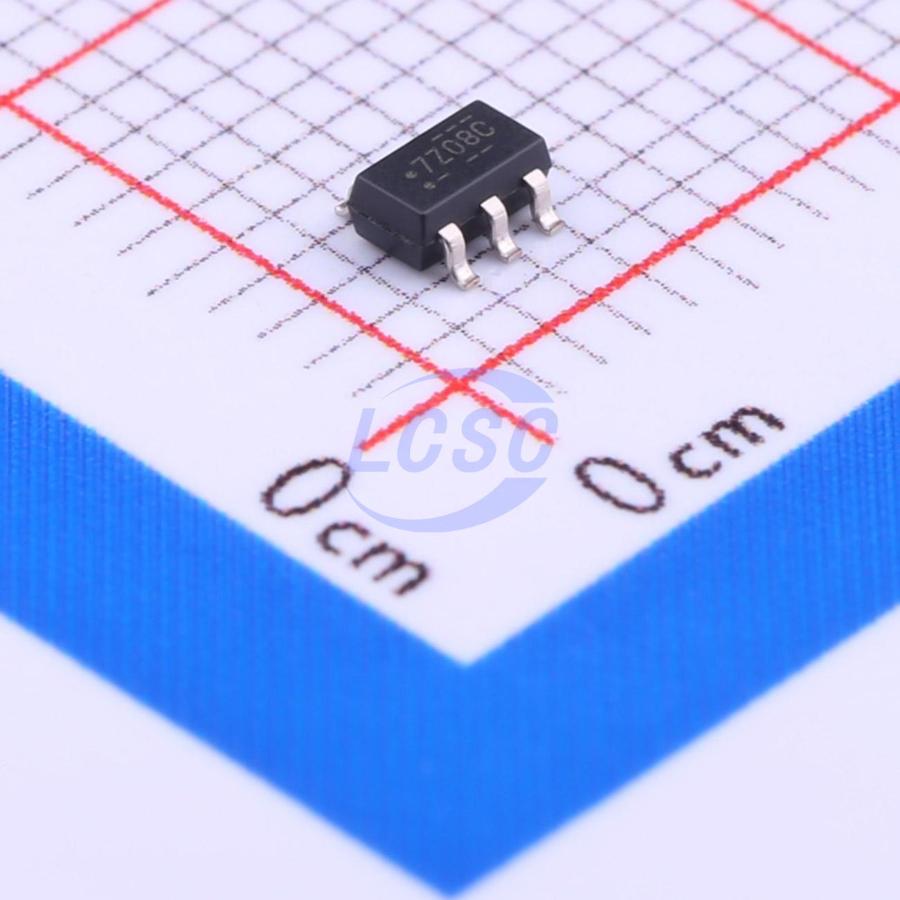

TinyLogic UHS 2-Input AND Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ08M5X
- Store part #
- C32411
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,100 in stock
#C32411
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.89 | ₹88.90 |
| 100+ | ₹7.17 | ₹717.00 |
| 300+ | ₹6.30 | ₹1,890.00 |
| 3,000+ | ₹5.46 | ₹16,380.00 |
| 6,000+ | ₹4.95 | ₹29,700.00 |
| 9,000+ | ₹4.68 | ₹42,120.00 |
10 × ₹8.89
₹88.90
excl. GST
₹104.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ08M5X
₹88.90 for 10 + GST
Specifications
- Features
- Local shutdown mode;Overvoltage-tolerant input
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 7SZ Series
- Output Logic Level - High
- 1.55V;1.7V;2.2V;2.9V;4.4V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 4.5ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The NC7SZ08 is a single 2- Input AND Gate from the Ultra High Speed Series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage.
Key features
- Space saving SOT23 or SC70 5-lead package
- Ultra small MicroPak Pb-Free loadloss package
- Ultra High Speed, tPD 2.7ns Typ. into 50pF at 5V VCC
- High Output Drive; ±24mA at 3V VCC
- Broad VCC Operating Range; 1.65V to 5.5V
- Matches the performance of LCX when operated at 3.3V VCC
- Power down high impedance inputs/output
- Overvoltage tolerant inputs facilitate 5V to 3V translation
- Patented noise/EMI reduction circuitry implemented
- All packages are Pb-Free
