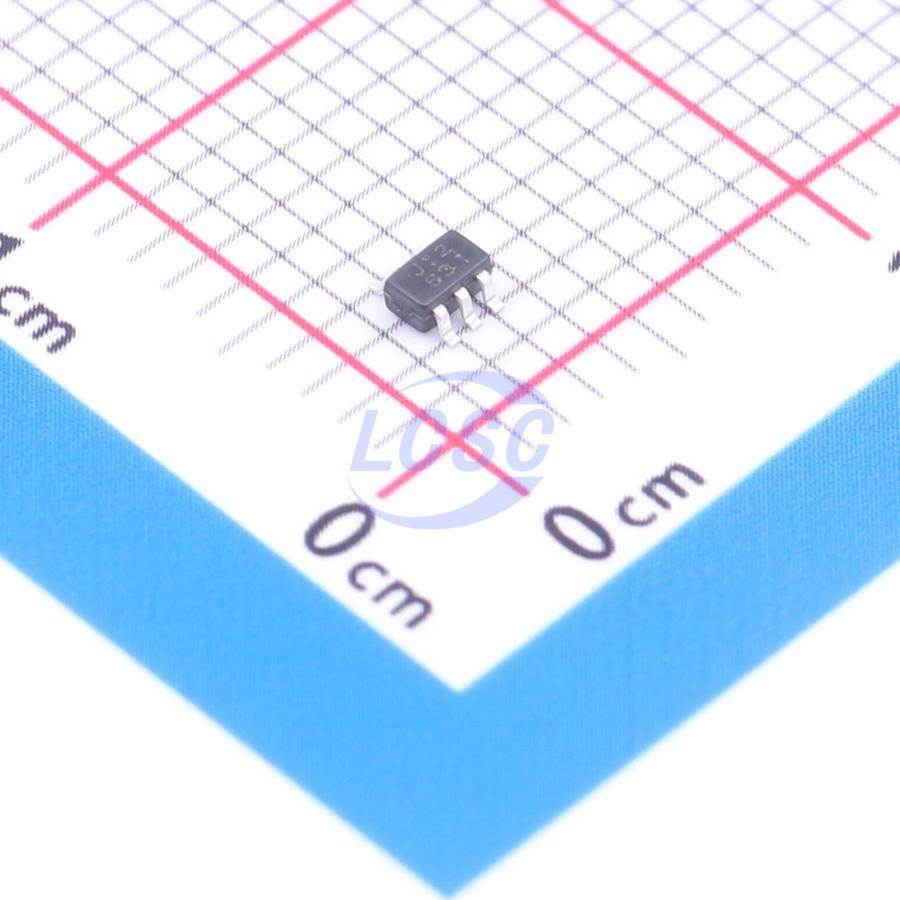

TC7SZ08FU-TP
10uA 1.65V~5.5V 3.4ns@5V,15pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC7SZ08FU-TP
- Store part #
- C54195036
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C54195036
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.34 | ₹63.40 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.34
₹63.40
excl. GST
₹74.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ08FU-TP
₹63.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 3.4ns@5V,15pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
TC7SZ08 is a single 2-input AND gate. The device is designed for operation with Vcc ranging from 1.65 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. TC7SZ08 performs the Boolean function Y = A × B in positive logic. This CMOS device maintains low quiescent power consumption over a wide Vcc operating range while providing high output drive capability. TC7SZ08 is available in SOT23-5 and SOT353 packages.
Applications
- Active Noise Cancellation (ANC)
- Blood Pressure Monitor
- Embedded PC
- SSD: Client and Enterprise
- TV: LCD/Digital and HDTV
- Tablet: Enterprise
- Video Analytics: Server
- Wireless Headset, Keyboard and Mouse
- Power Supply: Telecom/Server AC/DC Controller
Key features
- Wide supply voltage range: 1.65 V to 5.5 V
- Maximum propagation delay of 3.6 ns at VCC = 3.3 V
- Low power consumption, maximum ICC of 10 μA
- Output drive current of ±24 mA at VCC = 3.3 V
- Latch-up performance exceeds 100 mA per JESD 78 Class II
- ESD protection exceeds JESD 22
- Human Body Model 2000 V (A114-A)
- Charged Device Model 1000 V (C101)
- Operating temperature range: -40°C to 125°C
- Available packages: SOT23-5 and SOT353
