NC7SZ126M5X
1.65V~5.5V 1 1 2.6ns@5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS3 CompliantActive

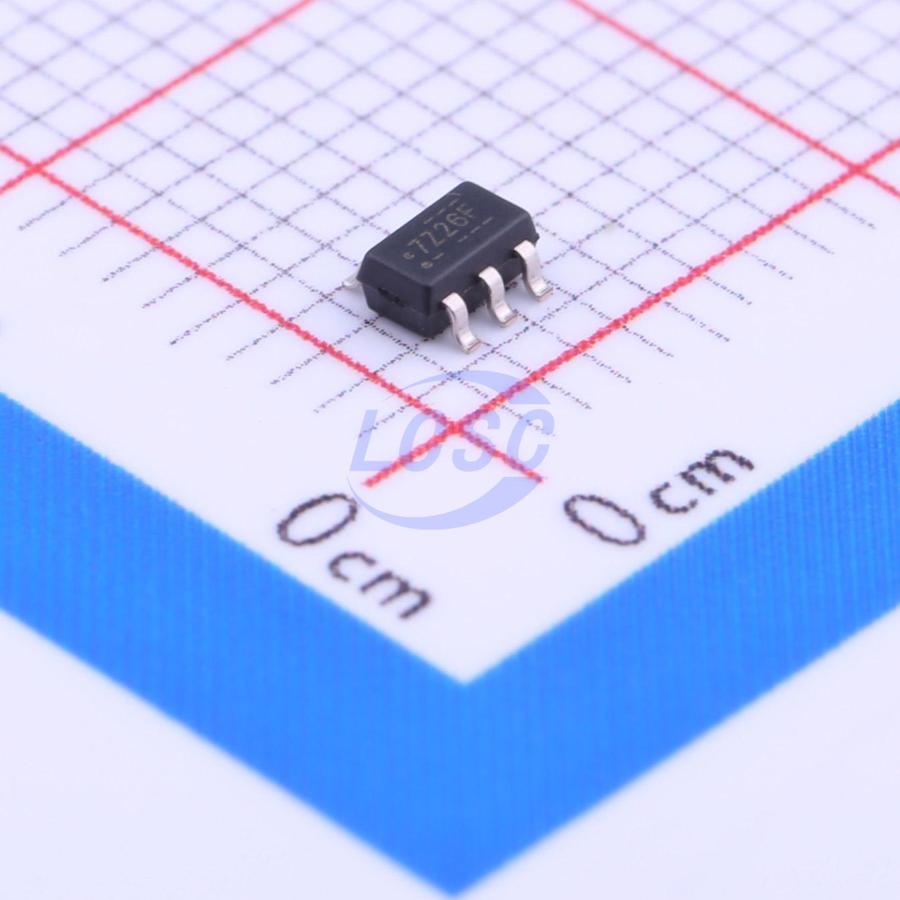

TinyLogic UHS Buffer with 3-STATE Output
- Manufacturer
- onsemi
- Manufacturer part #
- NC7SZ126M5X
- Store part #
- C7421
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,710 in stock
#C7421
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹12.37 | ₹12.37 |
| 10+ | ₹9.67 | ₹96.70 |
| 30+ | ₹8.32 | ₹249.60 |
| 100+ | ₹7.30 | ₹730.00 |
| 500+ | ₹6.50 | ₹3,250.00 |
| 1,000+ | ₹6.09 | ₹6,090.00 |
1 × ₹12.37
₹12.37
excl. GST
₹14.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ126M5X
₹12.37 for 1 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 20uA
- Function
- Power-off isolation;Level shifting
- Current - Output High(IOH)
- 32mA
- Series
- 7SZ
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.6ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.041 g
Overview
The NC7SZ126 is a single buffer with 3-STATE output from the Ultra High Speed Series. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V range. The inputs and output are high impedance above ground when VCC is 0V. Inputs tolerate voltages up to 6V independent of VCC operating voltage. The output tolerates voltages above VCC in the 3-STATE condition.
Key features
- Space saving SOT23 or SC70 5-lead package
- Ultra small MicroPak leadless package
- Ultra High Speed; tPD 2.6 ns Typ into 50 pF at 5V VCC
- High Output Drive; ±24 mA at 3V VCC
- Broad VCC Operating Range; 1.65V to 5.5V
- Matches the performance of LCX when operated at 3.3V VCC
- Power down high impedance inputs/output
- Overvoltage tolerant inputs facilitate 5V to 3V translation
- Patented noise/EMI reduction circuitry implemented
