TOSHIBADatasheet (PDF)

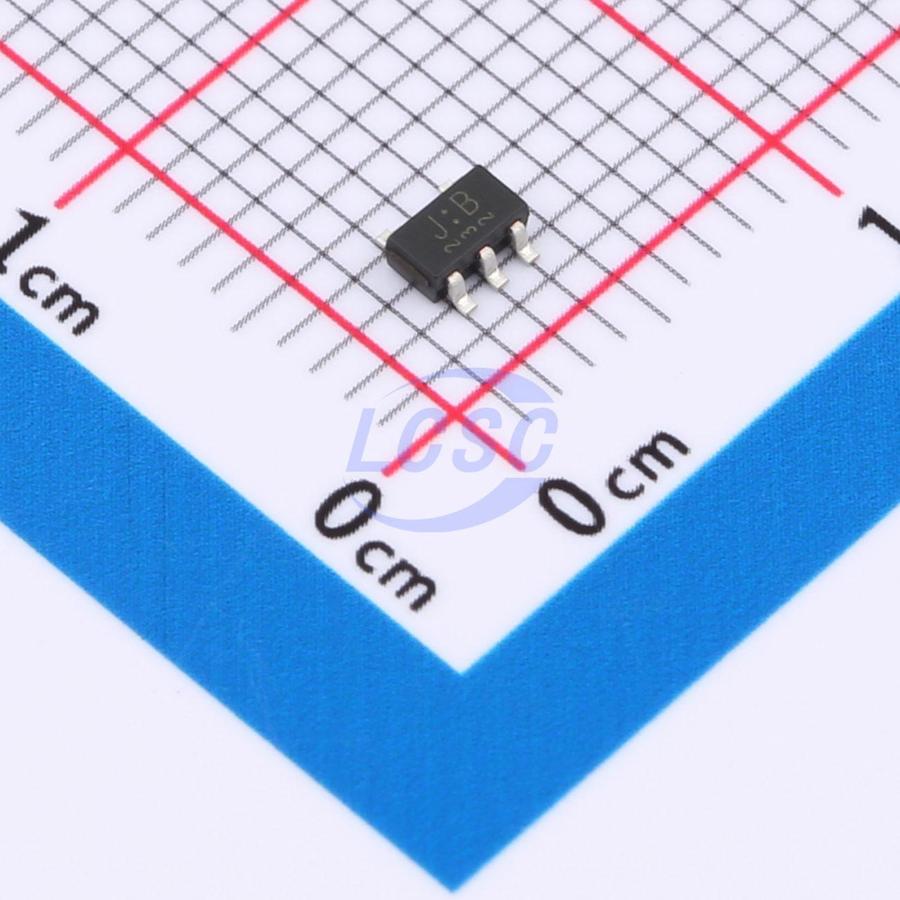

TC7SZ125F,LJ(CT
1.8V~5.5V 1 1 2.6ns@5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-23-5ROHS3 CompliantActive
CMOS Digital Integrated Circuits, Bus Buffer with 3-State Output
- Manufacturer
- TOSHIBA
- Manufacturer part #
- TC7SZ125F,LJ(CT
- Store part #
- C2675515
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,885 in stock
#C2675515
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.08 | ₹70.40 |
| 50+ | ₹12.17 | ₹608.50 |
| 150+ | ₹11.35 | ₹1,702.50 |
| 500+ | ₹10.32 | ₹5,160.00 |
| 3,000+ | ₹9.87 | ₹29,610.00 |
| 6,000+ | ₹9.59 | ₹57,540.00 |
5 × ₹14.08
₹70.40
excl. GST
₹83.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SZ125F,LJ(CT
₹70.40 for 5 + GST
Specifications
- Voltage - Supply
- 1.8V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 2uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 32mA
- Series
- TC7SZ
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.6ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
Bus Buffer with 3-State Output
Key features
- AEC-Q100 (Rev. H)
- Wide operating temperature range: T opr = -40 to 125 °C
- High output current: ±24 mA (min) at V CC = 3.0 V
- Super high speed operation: t pd = 2.6 ns (typ.) at V CC = 5.0 V, C L = 50 pF
- Operation voltage range: V CC = 1.65 to 5.5 V
- 5.5 V tolerant inputs
- 5.5 V power down protection output
- Matches the performance of TC74LCX series when operated at 3.3 V V CC
