NC7SZ86P5X
10uA 1.65V~5.5V 6ns@3.3V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive

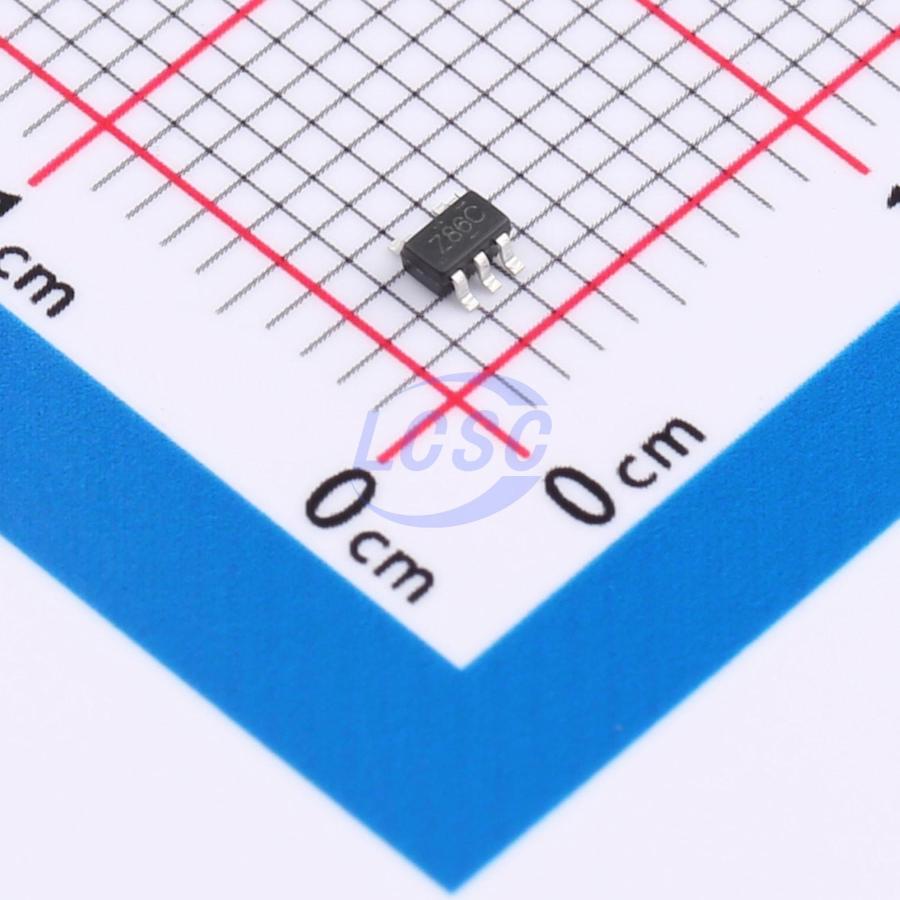

Single 2-Input Exclusive-OR Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7SZ86P5X
- Store part #
- C19829609
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,530 in stock
#C19829609
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.31 | ₹63.10 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.34 | ₹1,302.00 |
| 3,000+ | ₹3.85 | ₹11,550.00 |
| 6,000+ | ₹3.45 | ₹20,700.00 |
| 9,000+ | ₹3.25 | ₹29,250.00 |
10 × ₹6.31
₹63.10
excl. GST
₹74.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7SZ86P5X
₹63.10 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Propagation Delay
- 6ns@3.3V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
This single 2-input exclusive-OR gate is designed for 1.65-V to 5.5-V VCC operation. The NC7SZ86 performs the Boolean function Y = A⊕B or ΔY = A(overline)B + AB(overline) in positive logic. A common application is as a true/complement element. If the input is low, the other input is reproduced in true form at the output. If the input is high, the signal on the other input is reproduced inverted at the output. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
