TECH PUBLICDatasheet (PDF)
NC7WZ07P6X
Schmitt trigger 1.65V~5.5V 2 2 2.2ns@3.3V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive

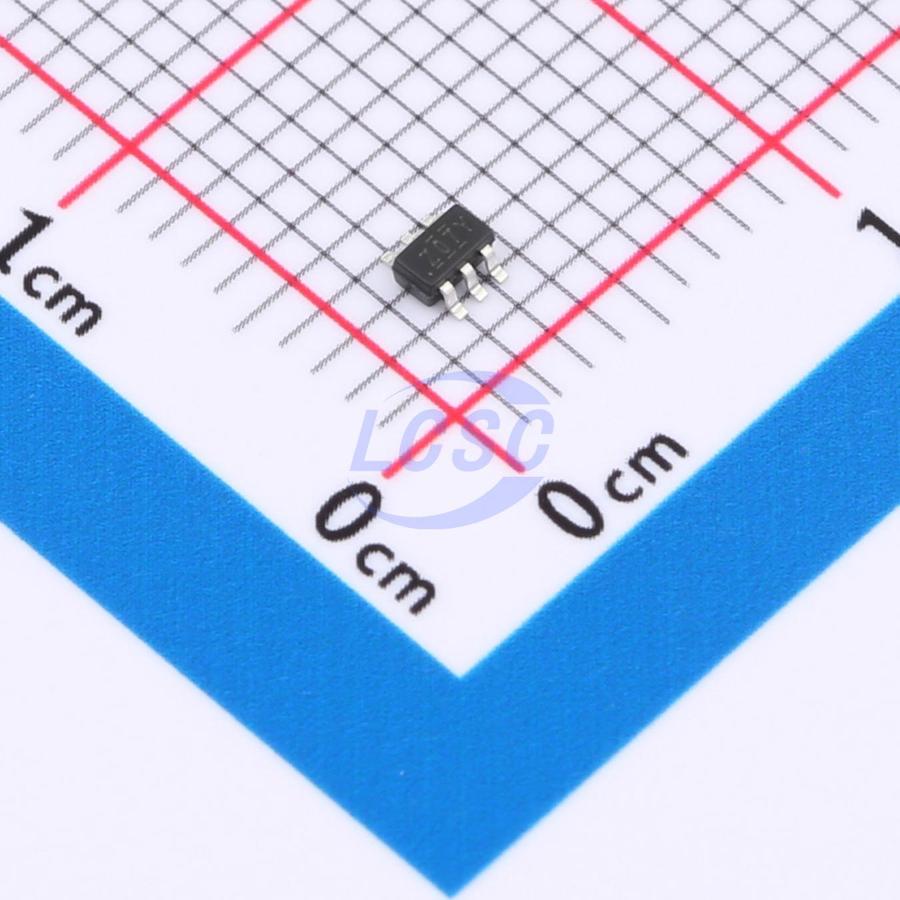

Dual Schmitt-Trigger Buffer
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7WZ07P6X
- Store part #
- C19829570
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,480 in stock
#C19829570
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.30 | ₹63.00 |
| 100+ | ₹5.48 | ₹548.00 |
| 300+ | ₹5.08 | ₹1,524.00 |
| 3,000+ | ₹4.78 | ₹14,340.00 |
| 6,000+ | ₹4.52 | ₹27,120.00 |
| 9,000+ | ₹4.41 | ₹39,690.00 |
10 × ₹6.30
₹63.00
excl. GST
₹74.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7WZ07P6X
₹63.00 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Level shifting;Power-off isolation
- Current - Output High(IOH)
- 24mA
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 2.2ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
NC7WZ07P6X is a high-performance, low-power, low-voltage, Si-gate CMOS device which provides two independent buffers with Schmitt trigger action. It is capable of transforming slowly changed input signals into sharply defined, jitter-free output signals.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Ilsolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operate From 1.65V to 5.5V
- 5 V tolerant input/output for interfacing with 5 V logic
- ±24mA output drive (VCC = 3.3V)
- CMOS low-power consumption and high noise immunity
- Supports Partial-Power-Down Mode Operation
- Latch-up performance exceeds 100mA
- Specified from -40°C to +125°C
- ESD Protection Exceeds JESD22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
