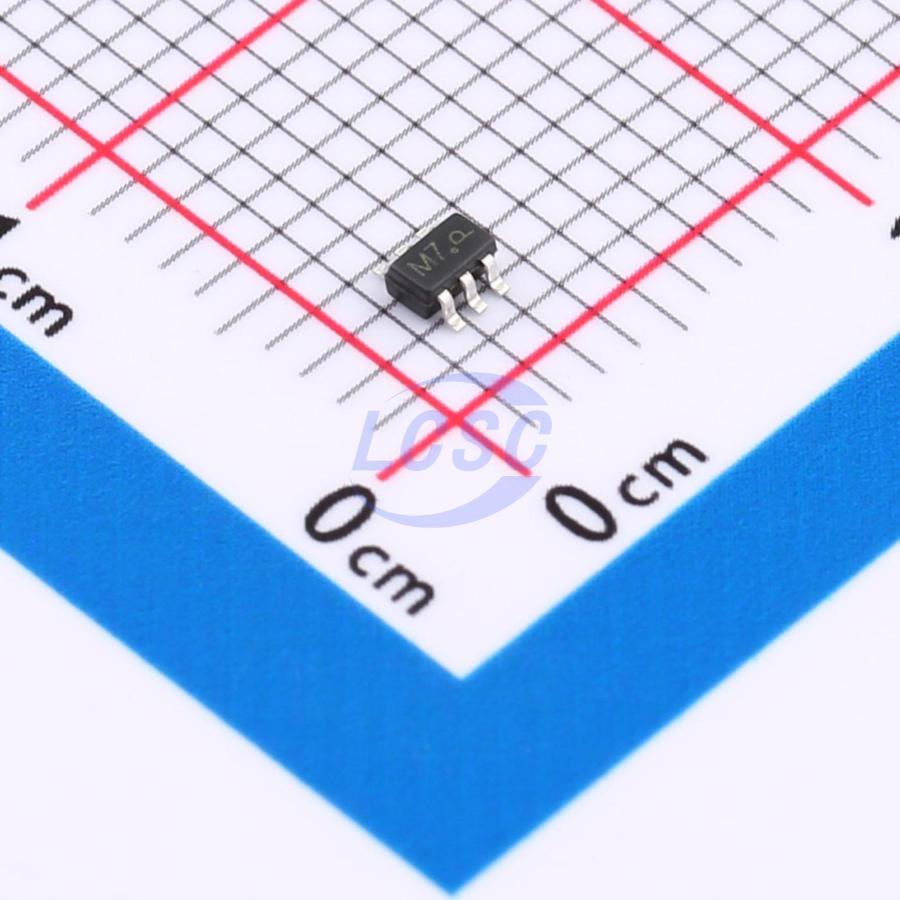

NL27WZ07DFT2G-TP
1.65V~5.5V 2 2 1.5ns@5V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
BUFFERS WITH OPEN-DRAIN OUTPUTS
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NL27WZ07DFT2G-TP
- Store part #
- C41408014
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,540 in stock
#C41408014
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.75 | ₹77.50 |
| 100+ | ₹6.03 | ₹603.00 |
| 300+ | ₹5.19 | ₹1,557.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.02 | ₹24,120.00 |
| 9,000+ | ₹3.77 | ₹33,930.00 |
10 × ₹7.75
₹77.50
excl. GST
₹91.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL27WZ07DFT2G-TP
₹77.50 for 10 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 24mA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 24mA
- Output Type
- Open-drain
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 1.5ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The NL27WZ07 provides two non-inverting buffers With open-drain output and can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions. This device has power-down protective circuit to preventing device from destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power: Telecom/Server AC/DC Supply: Single
- Controller: Analog and Digital
Key features
- Wide Supply Voltage Range From 1.65V To 5.5V. Inputs Can Be Driven From Either 3.3V or 5V Devices.
- ±24-mA Output Drive at 3.3V
- Low Power Dissipation: Ptot = 300mW(Max)
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC2G07C6#C42460202TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 2,810 | ₹12.52 · 2,810 in stock | View |
 | NC7WZ07P6X#C19829570TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 8,450 | ₹6.30 · 8,450 in stock | View |
 | NC7WZ17P6X#C19829572TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 9,365 | ₹9.01 · 9,365 in stock | View |
 | TP74LVC2G17C6#C42460206TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 2,920 | ₹12.58 · 2,920 in stock | View |
 | NC7WZ14P6X#C19829571TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 1,880 | ₹8.85 · 1,880 in stock | View |
