onsemiDatasheet (PDF)

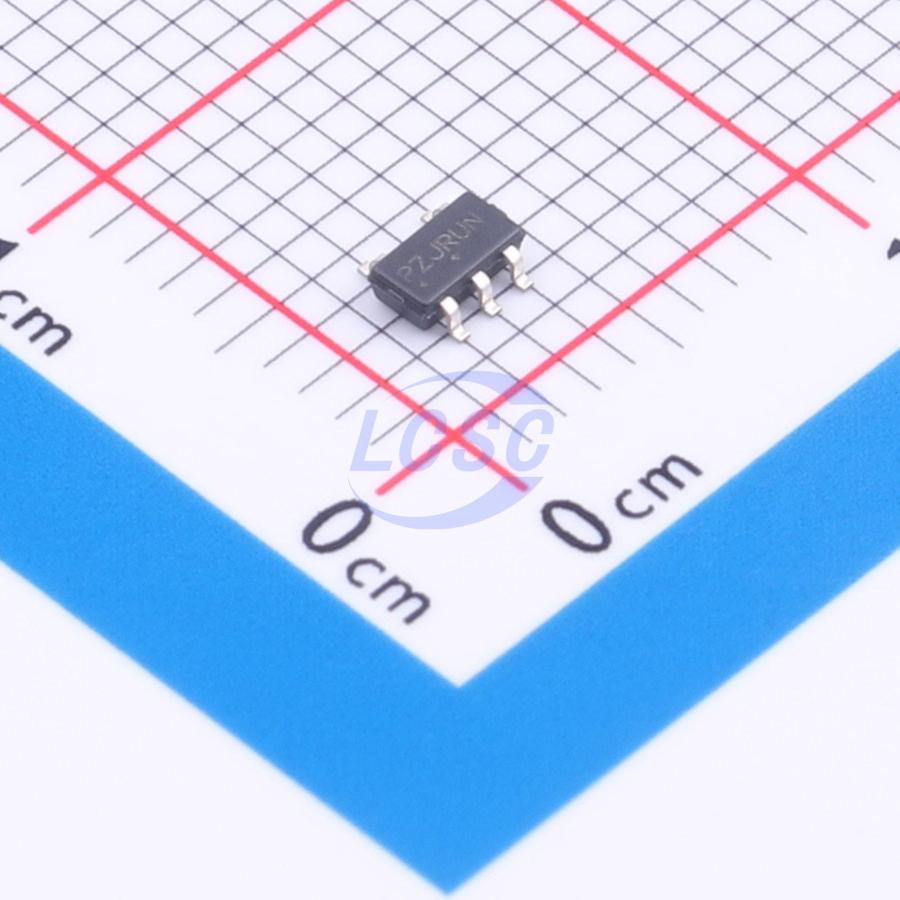

NCP715SN33T1G
3.3V Positive Fixed TSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOP-5ROHS3 CompliantActive
Linear Voltage Regulator Ultra-Low lq, Wide Input Voltage, Low Dropout
- Manufacturer
- onsemi
- Manufacturer part #
- NCP715SN33T1G
- Store part #
- C892745
- Package / case
- TSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
43 in stock
#C892745
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.52 | ₹57.52 |
| 10+ | ₹56.02 | ₹560.20 |
| 30+ | ₹55.16 | ₹1,654.80 |
| 100+ | ₹54.30 | ₹5,430.00 |
1 × ₹57.52
₹57.52
excl. GST
₹67.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP715SN33T1G
₹57.52 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 3.2uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 50mA
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection;Short Circuit Protection;Enable control;Input under-voltage protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.132 g
Overview
The NCP715 is 50 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low ground current consumption (4.7 μA over the full output load range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Applications
- Portable Equipment
- Communication Systems
Key features
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 1.2 V to 5.3 V
- Ultra Low Quiescent Current: Max. 4.7 μA Over Full Load and Temperature
- ±2% Accuracy Over Full Load, Line and Temperature Variations
- PSRR: 52 dB at 100 kHz
- Noise: 190 μVRMS from 200 Hz to 100 kHz
- Thermal Shutdown and Current Limit protection
- Available in XDFN6 1.5 x 1.5 mm, SC−70 (SC−88A) and TSOP−5 Packages
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLV70133DBVRM3#C22163349TI · SOT-23-5 | TI | SOT-23-5 | 85 | ₹108.17 · 85 in stock | View |
 | TLV70133DBVR#C779345TI · SOT-23-5 | TI | SOT-23-5 | 1,344 | ₹85.08 · 1,344 in stock | View |
 | TLV70433DBVT#C94776TI · SOT-23-5 | TI | SOT-23-5 | 220 | ₹22.66 · 220 in stock | View |
 | TLV70433DBVR#C94917TI · SOT-23-5 | TI | SOT-23-5 | 1,06,995 | ₹14.53 · 1,06,995 in stock | View |
 | PJ72AL33SE#C41367952PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 420 | ₹9.16 · 420 in stock | View |
