onsemiDatasheet (PDF)

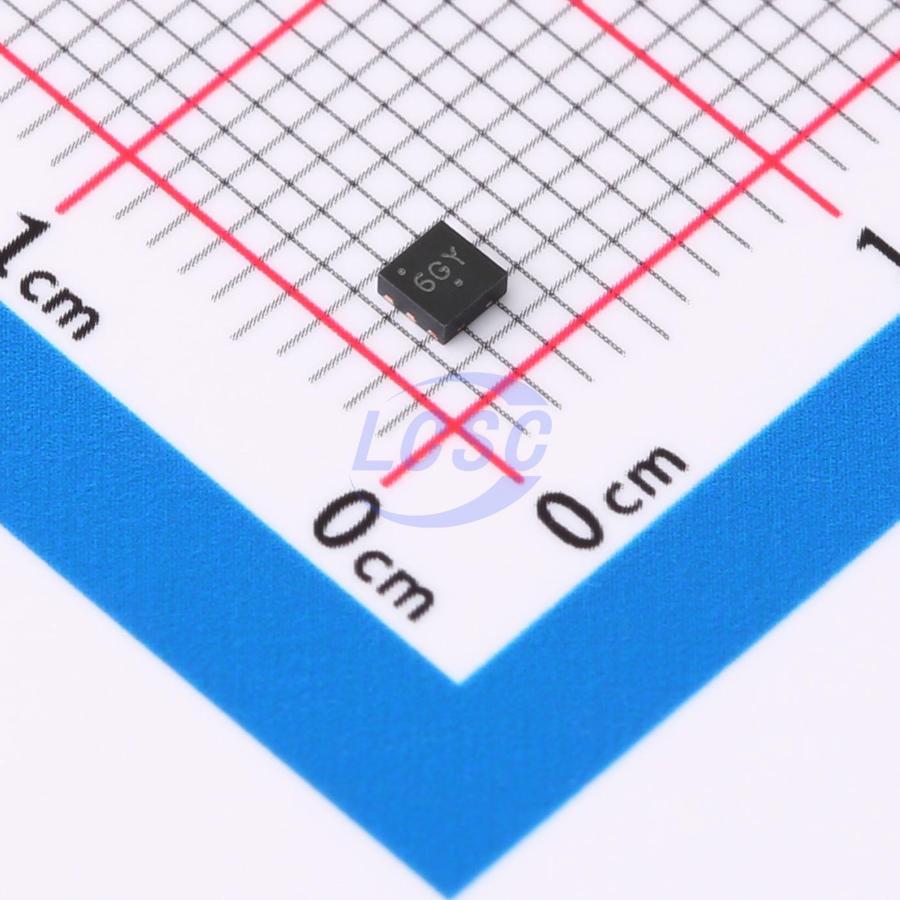

NCP716MT33TBG
3.3V Positive Fixed WDFN-6-EP(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WDFN-6-EP(2x2)ROHS3 CompliantActive
80 mA Ultra-Low lq, Wide Input Voltage Low Dropout Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCP716MT33TBG
- Store part #
- C892754
- Package / case
- WDFN-6-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C892754
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.51 | ₹72.51 |
| 10+ | ₹56.45 | ₹564.50 |
| 30+ | ₹49.72 | ₹1,491.60 |
| 100+ | ₹41.04 | ₹4,104.00 |
| 500+ | ₹37.12 | ₹18,560.00 |
| 1,000+ | ₹34.95 | ₹34,950.00 |
1 × ₹72.51
₹72.51
excl. GST
₹85.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCP716MT33TBG
₹72.51 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.2uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 80mA
- Output Type
- Fixed
- Features
- Input under-voltage protection;Thermal shutdown;Over Current Protection;Enable control
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.059 g
Overview
The NCP716 is 80 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low ground current consumption (4.7 μA over the full output load range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Applications
- Portable Equipment
- Communication Systems
Key features
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 1.2 V to 5.0 V
- Ultra Low Quiescent Current: Max. 4.7 μA over Temperature
- ±2% Accuracy over Full Load, Line and Temperature Variations
- PSRR: 60 dB at 100 kHz
- Noise: 200 μVRMS from 200 Hz to 100 kHz
- Thermal Shutdown and Current Limit Protection
- Available in WDFN6, 2x2x0.8 mm Package
- This is a Pb−Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCV8716MT33TBG#C893308onsemi · WDFN-6(2x2) | onsemi | WDFN-6(2x2) | 200 | ₹105.68 · 200 in stock | View |
 | AP7375Q-33FDCW-7#C28043222DIODES · DFN2020-6 | DIODES | DFN2020-6 | 2,674 | ₹41.85 · 2,674 in stock | View |
 | AP7375-33FDCW-7#C44209887DIODES · U-DFN2020-6 | DIODES | U-DFN2020-6 | 1,690 | ₹32.28 · 1,690 in stock | View |
| AP7583Q-33FDZW-7#C5553353DIODES · WDFN2020-6 | DIODES | WDFN2020-6 | 54 | ₹115.88 · 54 in stock | View | |
 | AP7387Q-33FDCW-7#C5845193DIODES · UDFN2020-6 | DIODES | UDFN2020-6 | 120 | ₹367.15 · 120 in stock | View |
