onsemiDatasheet (PDF)

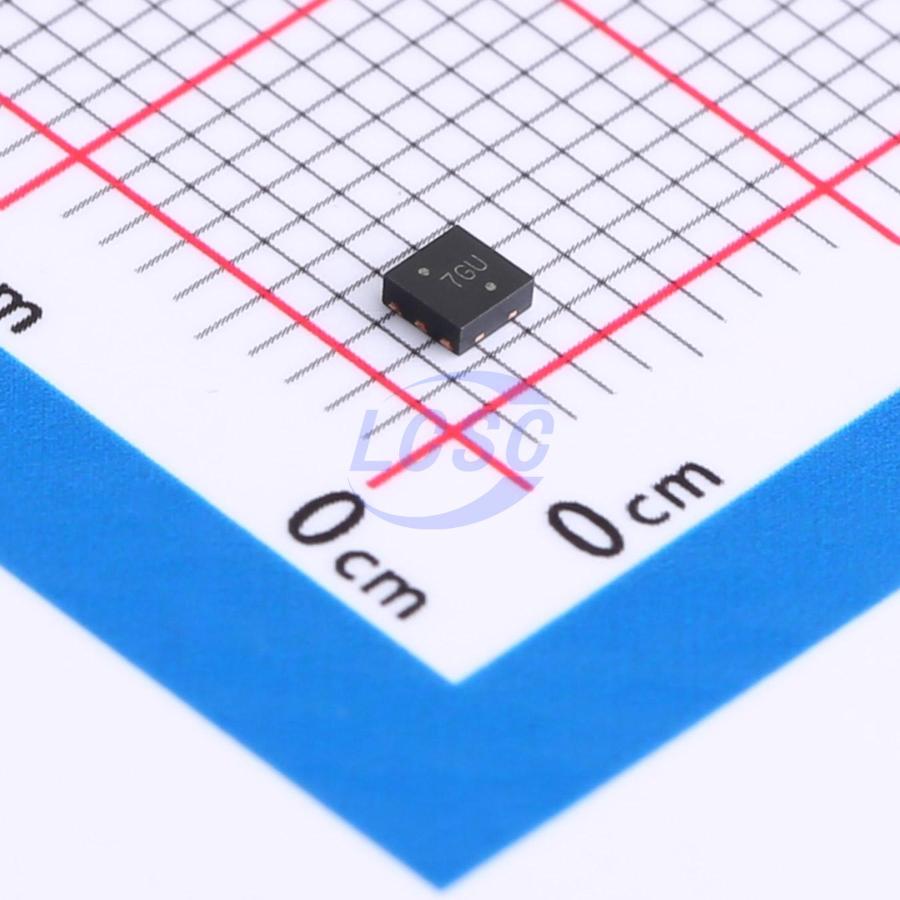

NCV8716MT33TBG
3.3V Positive Fixed WDFN-6(2x2) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
WDFN-6(2x2)ROHS3 CompliantActive
Low Dropout Regulator, Ultra-Low lq, Wide Input Voltage
- Manufacturer
- onsemi
- Manufacturer part #
- NCV8716MT33TBG
- Store part #
- C893308
- Package / case
- WDFN-6(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C893308
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.68 | ₹105.68 |
| 10+ | ₹103.29 | ₹1,032.90 |
| 30+ | ₹101.77 | ₹3,053.10 |
| 100+ | ₹100.24 | ₹10,024.00 |
1 × ₹105.68
₹105.68
excl. GST
₹124.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV8716MT33TBG
₹105.68 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 3.4uA
- Output Configuration
- Positive
- Output Current
- 80mA
- Operating Voltage
- 24V
- Output Type
- Fixed
- Features
- Thermal shutdown;Over Current Protection;Input under-voltage protection
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
The NCV8716 is 80 mA LDO Linear Voltage Regulator. It is a very stable and accurate device with ultra−low ground current consumption [4.7 μA over the full output load range) and a wide input voltage range (up to 24 V). The regulator incorporates several protection features such as Thermal Shutdown and Current Limiting.
Applications
- Portable Equipment
- Communication Systems
Key features
- Operating Input Voltage Range: 2.5 V to 24 V
- Fixed Voltage Options Available: 1.5 V to 5.0 V
- Ultra Low Quiescent Current: Max. 5.8 μA over Temperature
- ±2% Accuracy over Full Load, Line and Temperature Variations
- PSRR: 60 dB at 100 kHz
- Noise: 200 μVRMS from 200 Hz to 100 kHz
- Thermal Shutdown and Current Limit Protection
- Available in wDFN6, 2x2x0.8 mm Package
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature Range
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCP716MT33TBG#C892754onsemi · WDFN-6-EP(2x2) | onsemi | WDFN-6-EP(2x2) | 15 | ₹72.51 · 15 in stock | View |
 | AP7375Q-33FDCW-7#C28043222DIODES · DFN2020-6 | DIODES | DFN2020-6 | 2,674 | ₹41.85 · 2,674 in stock | View |
 | AP7375-33FDCW-7#C44209887DIODES · U-DFN2020-6 | DIODES | U-DFN2020-6 | 1,690 | ₹32.28 · 1,690 in stock | View |
| AP7583Q-33FDZW-7#C5553353DIODES · WDFN2020-6 | DIODES | WDFN2020-6 | 54 | ₹115.88 · 54 in stock | View | |
 | TPS70933QDRVRQ1#C2872343TI · WSON-6-EP(2x2) | TI | WSON-6-EP(2x2) | 74 | ₹228.30 · 74 in stock | View |
