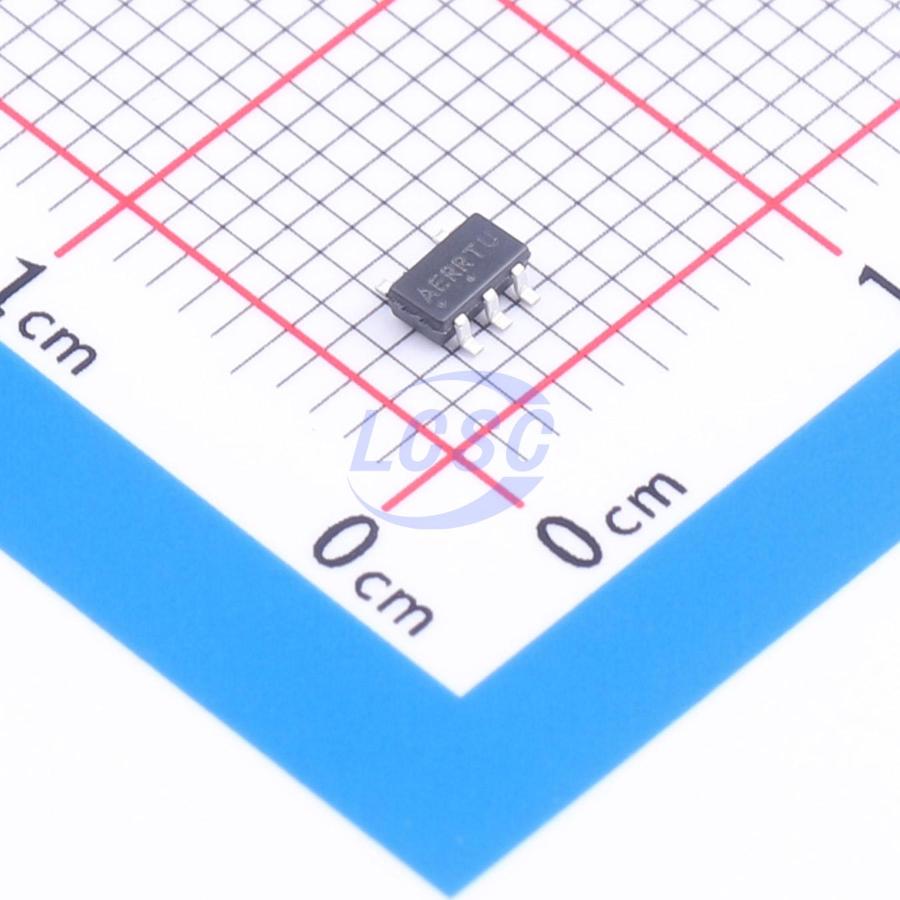

NCS20081SN2T1G

11mA 1 4mV 400V/ms 1.5nA 73dB 42uA Rail-to-Rail Input, Rail-to-Rail Output TSOP-5-1.5mm Instrumentation, Op Amps, Buffer Amps RoHS

TSOP-5-1.5mmROHS3 CompliantActive

Manufacturer: onsemi
Manufacturer part #: NCS20081SN2T1G
Store part #: C892868
Package / case: TSOP-5-1.5mm
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

230 in stock

#C892868

Stock & price checked 35 h ago

Quantity	Unit price	Pack price
1+	₹90.64	₹90.64
10+	₹73.29	₹732.90
30+	₹64.62	₹1,938.60
100+	₹55.95	₹5,595.00
500+	₹50.74	₹25,370.00
1,000+	₹48.14	₹48,140.00

Quantity (min 1)

1 × ₹90.64

₹90.64

excl. GST

₹106.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCS20081SN2T1G

₹90.64 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 11mA
Number of Channels: 1
Vos - Input Offset Voltage: 4mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 1.5nA
Common Mode Rejection Ratio(CMRR): 73dB
Input Offset Voltage Drift(Vos TC): 1uV/℃
Quiescent Current: 42uA
Features: ESD protection
Input Voltage Noise Density: 30nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.042 g
