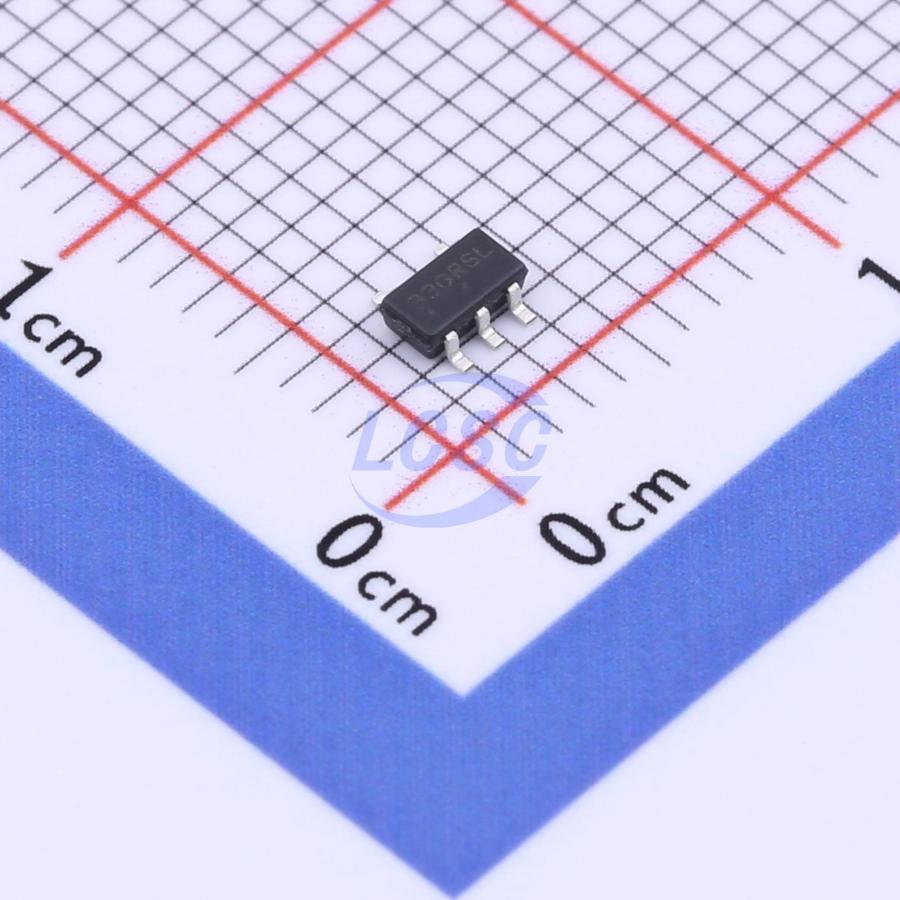

NCS333ASN2T1G

5mA 1 3.5uV 0.15V/us 123dB 60pA 17uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output TSOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

TSOT-23-5ROHS3 CompliantActive

Zero-Drift Operational Amplifier

Manufacturer: onsemi
Manufacturer part #: NCS333ASN2T1G
Store part #: C603847
Package / case: TSOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,036 in stock

#C603847

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹62.67	₹62.67
10+	₹48.57	₹485.70
30+	₹42.51	₹1,275.30
100+	₹35.13	₹3,513.00
500+	₹31.66	₹15,830.00
1,000+	₹29.71	₹29,710.00

Quantity (min 1)

1 × ₹62.67

₹62.67

excl. GST

₹73.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCS333ASN2T1G

₹62.67 for 1 + GST

Specifications

Output Current: 5mA
Number of Channels: 1
Vos - Input Offset Voltage: 3.5uV
Slew Rate: 0.15V/us
Input Offset Current(Ios): 50pA
Operating Temperature: -40℃~+105℃
Common Mode Rejection Ratio(CMRR): 123dB
Ib - Input Bias Current: 60pA
Input Offset Voltage Drift(Vos TC): 30nV/℃
Quiescent Current: 17uA
Gain Bandwidth Product: 350kHz
Features: Zero drift / auto-zero;EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 62nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.051 g

Overview

The NCS333/2333/4333 family of zero−drift op amps feature offset voltage as low as 10 μV over the 1.8 V to 5.5 V supply voltage range. The zero−drift architecture reduces the offset drift to as low as 0.07 μV/°C and enables high precision measurements over both time and temperature. This family has low power consumption over a wide dynamic range and is available in space saving packages. These features make it well suited for signal conditioning circuits in portable, industrial, automotive, medical and consumer markets.

Applications

Automotive
Battery Powered/ Portable Application
Sensor Signal Conditioning
Low Voltage Current Sensing
Filter Circuits
Bridge Circuits
Medical Instrumentation

Key features

Gain−Bandwidth Product:
270 kHz (NCx2333)
350 kHz (NCx333, NCx333A, NCx4333)
Low Supply Current: 17 μA (typ at 3.3 V)
Low Offset Voltage:
10 μV max for NCS333, NCS333A
30 μV max for NCV333A, NCx2333 and NCx4333
Low Offset Drift: 0.07 μV/°C max for NCS333/A
Wide Supply Range: 1.8 V to 5.5 V
Wide Temperature Range: -40°C to +125°C
Rail−to−Rail Input and Output
Available in Single, Dual and Quad Packages
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
