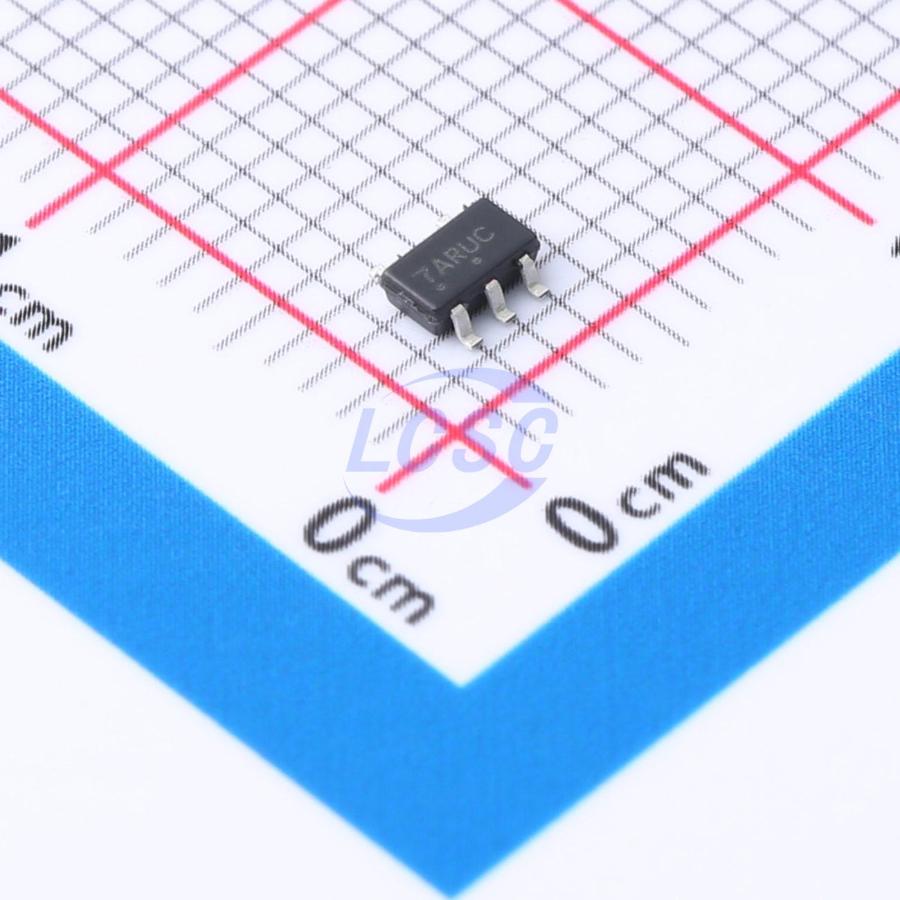

NCV21871SN2T1G

5mA 1 45uV 0.1V/us 123dB 60pA 350kHz 20uA Rail-to-Rail Input, Rail-to-Rail Output TSOP-5-1.5mm Instrumentation, Op Amps, Buffer Amps RoHS

TSOP-5-1.5mmROHS3 CompliantActive

Zero-Drift Operational Amplifier

Manufacturer: onsemi
Manufacturer part #: NCV21871SN2T1G
Store part #: C892905
Package / case: TSOP-5-1.5mm
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,883 in stock

#C892905

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹84.86	₹84.86
10+	₹75.77	₹757.70
30+	₹71.32	₹2,139.60
100+	₹66.88	₹6,688.00
500+	₹64.13	₹32,065.00
1,000+	₹62.64	₹62,640.00

Quantity (min 1)

1 × ₹84.86

₹84.86

excl. GST

₹100.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCV21871SN2T1G

₹84.86 for 1 + GST

Specifications

Output Current: 5mA
Number of Channels: 1
Vos - Input Offset Voltage: 45uV
Slew Rate: 0.1V/us
Input Offset Current(Ios): 50pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 123dB
Ib - Input Bias Current: 60pA
Input Offset Voltage Drift(Vos TC): 400nV/℃
Gain Bandwidth Product: 350kHz
Quiescent Current: 20uA
Features: Zero drift / auto-zero
Input Voltage Noise Density: 62nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.042 g

Overview

The NCS21871, NCS21872 and NCS21874 family of zero−drift op amps feature offset voltage as low as 45 μV over the 1.8 V to 5.5 V supply voltage range. The zero−drift architecture reduces the offset drift to as low as 0.4 μV/°C and enables high precision measurements over both time and temperature. This family has low power consumption over a wide dynamic range and is available in space saving packages. These features make it well suited for signal conditioning circuits in portable, industrial, automotive, medical and consumer markets.

Applications

Automotive
Battery Powered/ Portable Application
Sensor Signal Conditioning
Low Voltage Current Sensing
Filter Circuits
Bridge Circuits
Medical Instrumentation

Key features

Gain−Bandwidth Product: 270 kHz to 350 kHz
Low Supply Current: 17 μA (typ at 3.3 V)
Low Offset Voltage: 45 μV max
Low Offset Drift: 0.4 μV/°C max
Wide Supply Range: 1.8 V to 5.5 V
Wide Temperature Range: -40°C to +125°C
Rail−to−Rail Input and Output
Available in Single, Dual and Quad Packages
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
NCS21871SN2T1G#C892877onsemi · TSOP-5-1.5mm	onsemi	TSOP-5-1.5mm	90	₹143.76 · 90 in stock	View
NCS333ASN2T1G#C603847onsemi · TSOT-23-5	onsemi	TSOT-23-5	4,036	₹62.67 · 4,036 in stock	View
OPA330AIDBVR#C38649TI · SOT-23-5	TI	SOT-23-5	1,444	₹132.05 · 1,444 in stock	View
HGV333M5/TR#C507202HGSEMI · SOT-23-5	HGSEMI	SOT-23-5	15	₹53.42 · 15 in stock	View
TLV333IDBVT#C75209TI · SOT-23-5	TI	SOT-23-5	19	₹66.14 · 19 in stock	View
