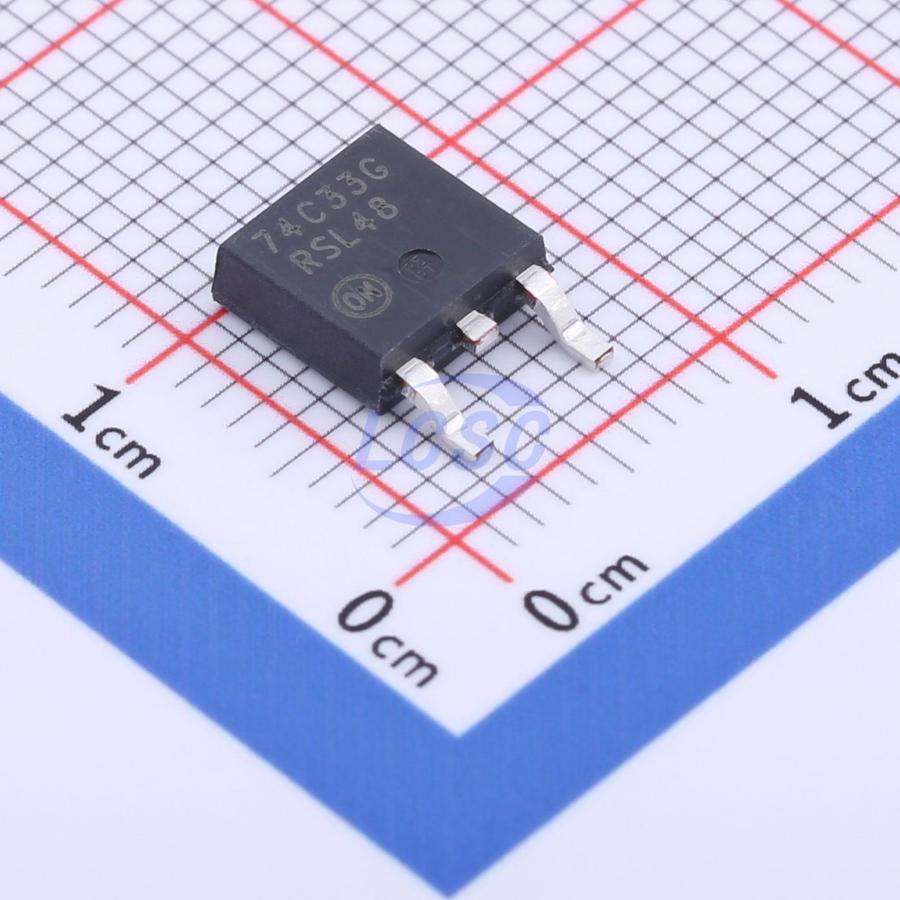

NCV4274CDT33RKG
Linear Voltage Regulator IC Positive Fixed 1 Output 400mA TO-252(DPAK)
TO-252(DPAK)ROHS3 CompliantActive
400 mA Low Dropout (LDO) Regulator
- Manufacturer
- onsemi
- Manufacturer part #
- NCV4274CDT33RKG
- Store part #
- C603927
- Package / case
- TO-252(DPAK)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,106 in stock
#C603927
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.53 | ₹83.53 |
| 10+ | ₹81.36 | ₹813.60 |
| 30+ | ₹80.05 | ₹2,401.50 |
| 100+ | ₹78.53 | ₹7,853.00 |
1 × ₹83.53
₹83.53
excl. GST
₹98.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV4274CDT33RKG
₹83.53 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 250uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 400mA
- Features
- Reverse polarity voltage protection;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.372 g
Overview
The NCV4274C is a precision micro−power voltage regulator with an output current capability of 400 mA available in the DPAK, D2PAK and SOT−223 packages. The output voltage is accurate within ±2.0% with a maximum dropout voltage of 0.5 V with an input up to 40 V. Low quiescent current is a feature drawing only 125 μA with a 1 mA load. This part is ideal for automotive and all battery operated microprocessor equipment. The regulator is protected against reverse battery, short circuit, and thermal overload conditions. The device can withstand load dump transients making it suitable for use in automotive environments.
Key features
- 3.3 V, 5.0 V, ±2.0% Output Options
- Low 125 μA Quiescent Current at 1 mA load current
- 400 mA Output Current Capability
- Fault Protection
- +60 V Peak Transient Voltage with Respect to GND -42 V Reverse Voltage Short Circuit Thermal Overload
- Very Low Dropout Voltage
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TLE42744D V33#C539707Infineon · TO-252-3 | Infineon | TO-252-3 | 1,188 | ₹173.80 · 1,188 in stock | View |
 | NCV4274ADT33RKG#C145520onsemi · TO-252-2(DPAK) | onsemi | TO-252-2(DPAK) | 3 | ₹177.89 · 3 in stock | View |
| TLE4274D V33#C539713Infineon · TO-252-3 | Infineon | TO-252-3 | 14 | ₹143.20 · 14 in stock | View | |
 | BD433M5FP-CE2#C442601ROHM · TO-252 | ROHM | TO-252 | 1,918 | ₹103.22 · 1,918 in stock | View |
 | BD733L5FP-CE2#C509724ROHM · TO-252 | ROHM | TO-252 | 2,864 | ₹138.21 · 2,864 in stock | View |
