onsemiDatasheet (PDF)

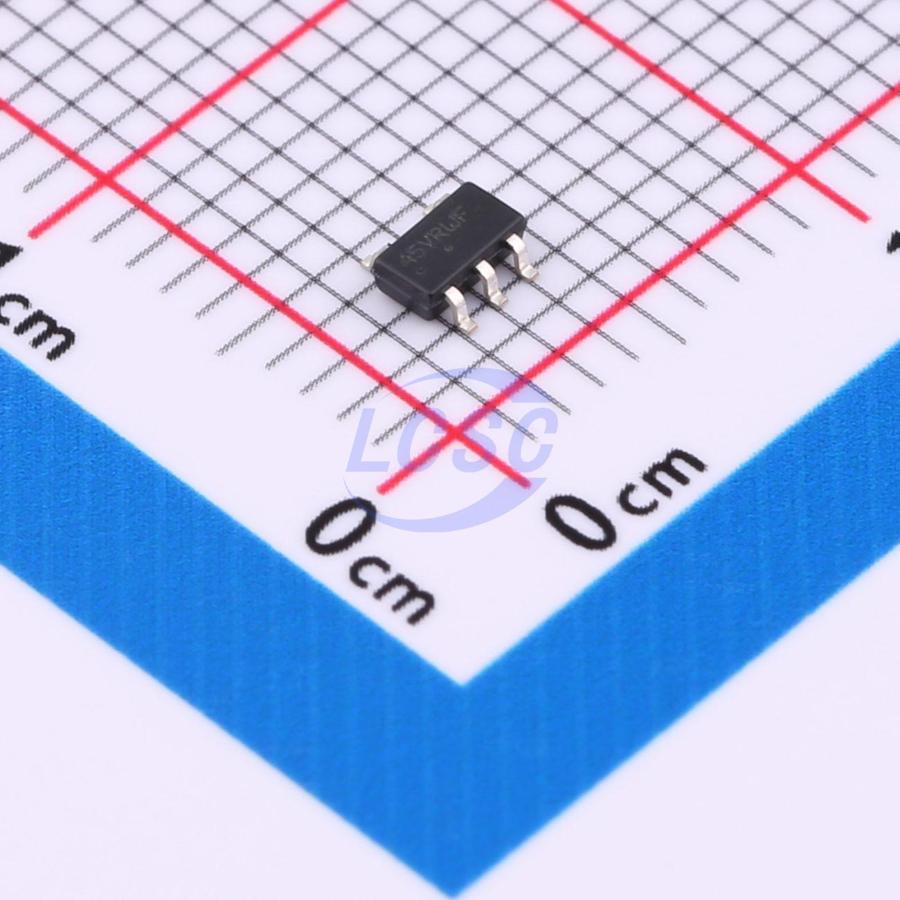

NCV4294CSN50T1G
5V Positive Fixed TSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TSOP-5ROHS3 CompliantActive
Low Dropout Voltage Regulator 30 mA
- Manufacturer
- onsemi
- Manufacturer part #
- NCV4294CSN50T1G
- Store part #
- C603939
- Package / case
- TSOP-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,599 in stock
#C603939
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.04 | ₹84.04 |
| 10+ | ₹75.11 | ₹751.10 |
| 30+ | ₹70.54 | ₹2,116.20 |
| 100+ | ₹66.19 | ₹6,619.00 |
| 500+ | ₹63.57 | ₹31,785.00 |
| 1,000+ | ₹62.26 | ₹62,260.00 |
1 × ₹84.04
₹84.04
excl. GST
₹99.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCV4294CSN50T1G
₹84.04 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 170uA
- Output Configuration
- Positive
- Operating Voltage
- 45V
- Output Current
- 30mA
- Features
- Reverse polarity voltage protection;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
The NCV4294C is a monolithic integrated low dropout voltage regulator with an output current capability of 30 mA available in the TSOP–5 package. The output voltage is accurate within ±4.0% with a maximum dropout voltage of 250 mV with an input up to 45 V. Low quiescent current is a feature typically drawing only 160 μA with a 1 mA load. This part is ideal for automotive and all battery operated microprocessor equipment. The regulator is protected against reverse battery, short circuit and thermal overload conditions.
Applications
- Microprocessor Systems Power Supply
Key features
- Output Voltage Options: 3.3 V, 5.0 V
- Output Voltage Accuracy: ±4.0%
- Output Current: up to 30 mA
- Low Quiescent Current (typ. 160 μA @ 1 mA)
- Low Dropout Voltage (typ. 65 mV @ 20 mA)
- Wide Input Voltage Operating Range: up to 45 V
- Protection Features: Current Limitation, Thermal Shutdown, Reverse Polarity Protection and Reverse Bias Protection
- AEC−Q100 Grade 1 Qualified and PPAP Capable
- This is a Pb−Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| NCV4295CSN50T1G#C892950onsemi · TSOP-5 | onsemi | TSOP-5 | 21 | ₹71.12 · 21 in stock | View | |
 | NCV4296-2CSN50T1G#C892951onsemi · TSOP-5 | onsemi | TSOP-5 | 1,967 | ₹56.19 · 1,967 in stock | View |
 | RS3009-5.0XF5-G#C42459563RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 60 | ₹32.16 · 60 in stock | View |
 | SK6513SS5E-50#C5120326Suntek · SOT-23-5 | Suntek | SOT-23-5 | 5,865 | ₹25.68 · 5,865 in stock | View |
 | LTP3559-50NXT5#C5124527Linearin · SOT-23-5L | Linearin | SOT-23-5L | 2,792 | ₹51.44 · 2,792 in stock | View |
