onsemi

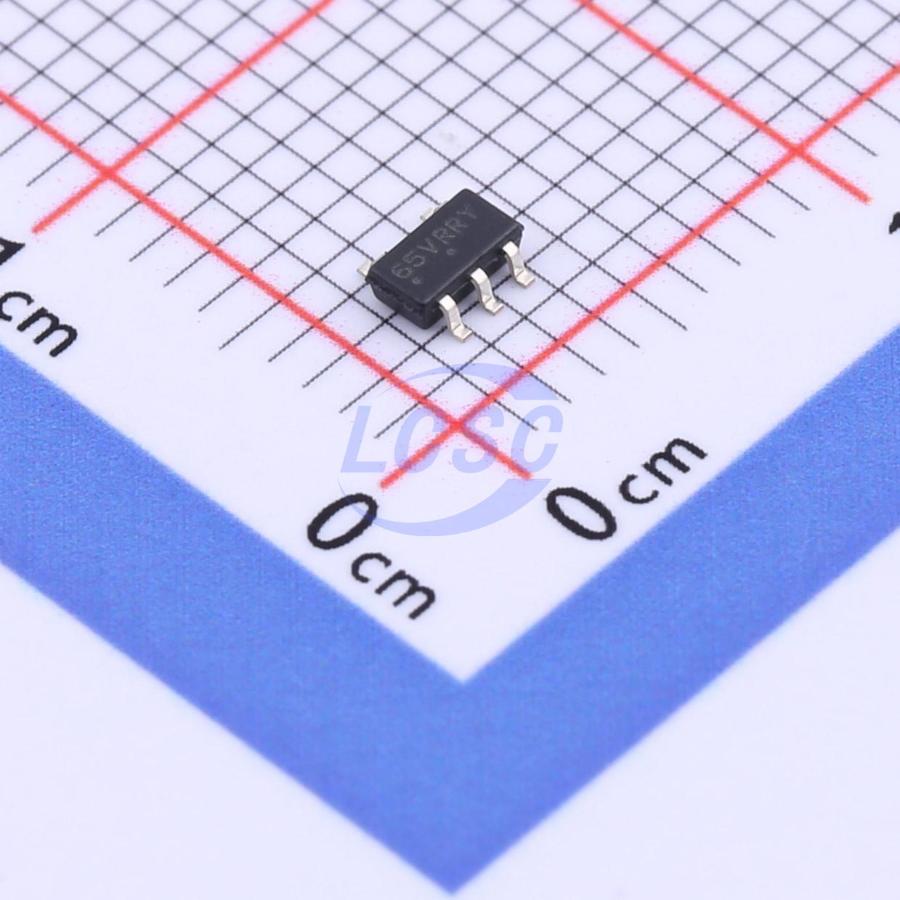

NCV4296-2CSN50T1G

5V Positive Fixed TSOP-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TSOP-5ROHS3 CompliantActive

Low Dropout Voltage Regulator with Inhibit

Manufacturer: onsemi
Manufacturer part #: NCV4296-2CSN50T1G
Store part #: C892951
Package / case: TSOP-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,967 in stock

#C892951

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
1+	₹56.19	₹56.19
10+	₹49.48	₹494.80
30+	₹46.03	₹1,380.90
100+	₹42.79	₹4,279.00
500+	₹40.63	₹20,315.00
1,000+	₹39.54	₹39,540.00

Quantity (min 1)

1 × ₹56.19

₹56.19

excl. GST

₹66.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCV4296-2CSN50T1G

₹56.19 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+150℃@(Tj)
Supply Current (Iq): 160uA
Output Configuration: Positive
Operating Voltage: 45V
Output Current: 30mA
Output Type: Fixed
Features: Enable control;Reverse polarity voltage protection;Short Circuit Protection;Thermal shutdown;Over Current Protection

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.04 g

Overview

The NCV4296−2C is a monolithic integrated low dropout voltage regulator with an output current capability of 30 mA available in the TSOP–5 package. The output voltage is accurate within ±4.0% with a maximum dropout voltage of 250 mV with an input up to 45 V. Low quiescent current is a feature typically drawing only 160 μA with a 1 mA load. With Inhibit feature, the regulator can be turned off and the device consumes less than 5 μA of quiescent current. This part is ideal for automotive and all battery operated microprocessor equipment. The regulator is protected against reverse battery, short circuit and thermal overload conditions.

Applications

Microprocessor Systems Power Supply

Key features

Output Voltage Options: 3.3 V, 5.0 V
Output Voltage Accuracy: ±4.0%
Output Current: up to 30 mA
Low Quiescent Current (typ. 160 μA @ 1 mA)
Low Dropout Voltage (typ. 65 mV @ 20 mA)
Wide Input Voltage Operating Range: up to 45 V
Inhibit Input
Protection Features:
Current Limitation
Thermal Shutdown
Reverse Polarity Protection and Reverse Bias Protection
AEC−Q100 Grade 1 Qualified and PPAP Capable
This is a Pb−Free Device
