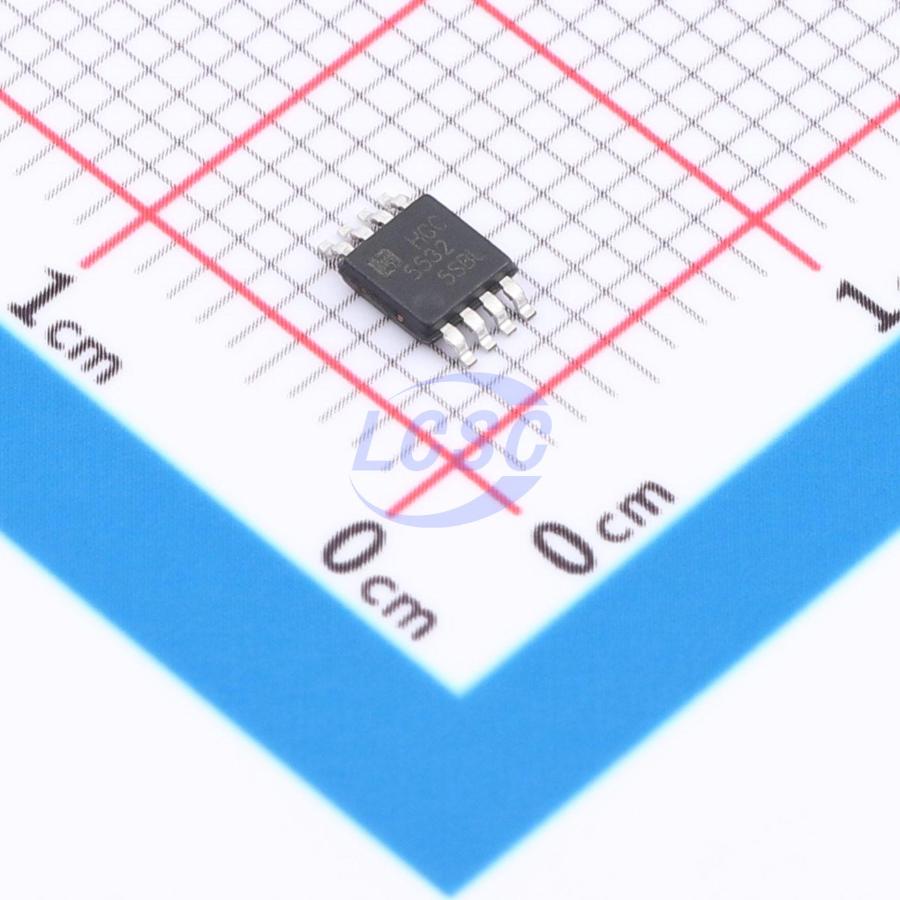

NE5532DGKRG
Standard (General Purpose) Amplifier 2 Circuit MSOP-8
MSOP-8ROHS CompliantActive
IC OPAMP GP 2 CIRCUIT MSOP-8
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- NE5532DGKRG
- Store part #
- C46552271
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,455 in stock
#C46552271
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.42 | ₹62.10 |
| 50+ | ₹9.83 | ₹491.50 |
| 150+ | ₹8.52 | ₹1,278.00 |
| 500+ | ₹7.54 | ₹3,770.00 |
| 3,000+ | ₹6.76 | ₹20,280.00 |
| 6,000+ | ₹6.38 | ₹38,280.00 |
5 × ₹12.42
₹62.10
excl. GST
₹73.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NE5532DGKRG
₹62.10 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 11V/us
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 30nA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -22V~22V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
The NE5532/SA5532 is a dual low-noise op-amp featuring two independent, internally frequency-compensated amplifiers. It offers high DC voltage gain (approximately 100 dB), high slew rate (typically 10V/μs), and low input noise voltage (8nV/√Hz at 1kHz). Available in DIP-8, SOP-8, or MSOP-8 packages.
Key features
- Internal frequency compensation
- High DC voltage gain (approx. 100 dB)
- High slew rate (typical 10 V/μs)
- Low input noise voltage (8 nV/√Hz at 1 kHz)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV722DGKRG#C19723758HANSCHIP semiconductor · MSOP-8 | HANSCHIP semiconductor | MSOP-8 | 2,075 | ₹17.90 · 2,075 in stock | View |
