TIDatasheet (PDF)

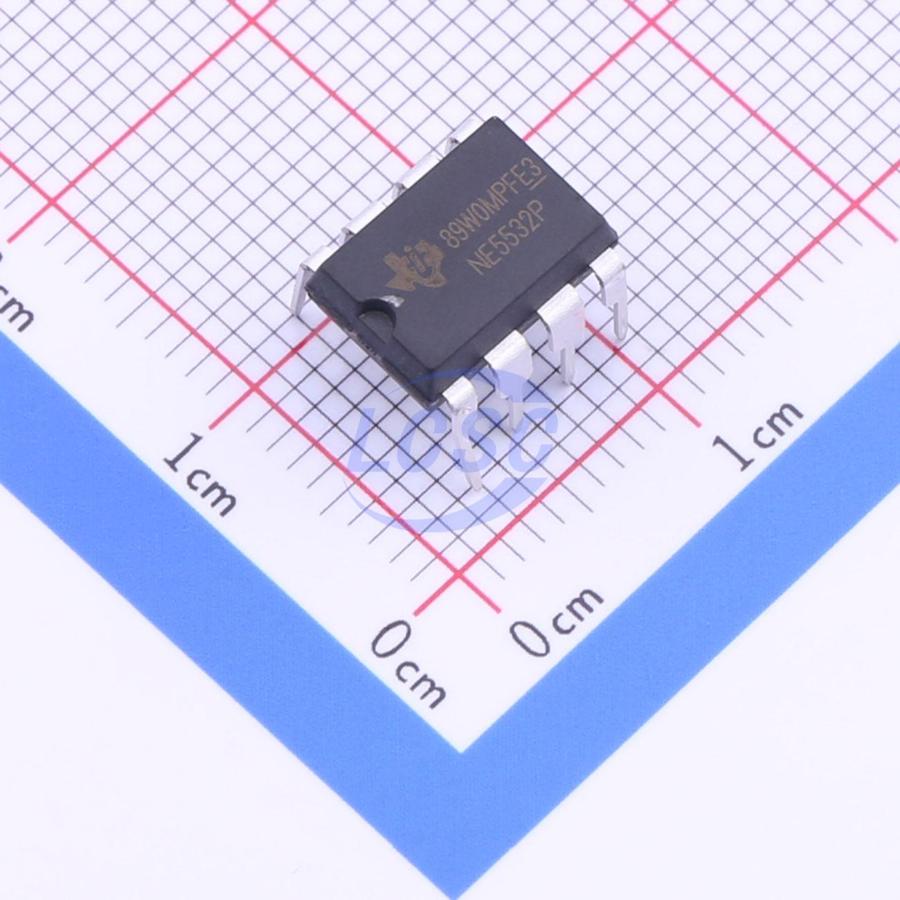

NE5532P
38mA 2 4mV 9V/us 100dB 1uA 16mA 10MHz PDIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
PDIP-8ROHS3 CompliantActive
Dual Low-Noise Operational Amplifiers
- Manufacturer
- TI
- Manufacturer part #
- NE5532P
- Store part #
- C5326
- Package / case
- PDIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,745 in stock
#C5326
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.66 | ₹243.30 |
| 50+ | ₹38.94 | ₹1,947.00 |
| 150+ | ₹35.44 | ₹5,316.00 |
| 500+ | ₹31.09 | ₹15,545.00 |
| 2,500+ | ₹29.15 | ₹72,875.00 |
| 5,000+ | ₹27.98 | ₹1,39,900.00 |
5 × ₹48.66
₹243.30
excl. GST
₹287.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
NE5532P
₹243.30 for 5 + GST
Specifications
- Output Current
- 38mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 9V/us
- Input Offset Current(Ios)
- 150nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 1uA
- Input Offset Voltage Drift(Vos TC)
- 5uV/℃
- Quiescent Current
- 16mA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 5nV/√Hz@1kHz
- Dual Supply
- -15V~15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.913 g
Overview
NE5532, NE5532A, SA5532, and SA5532 devices are high-performance operational amplifiers combining excellent DC and AC characteristics. These op-amps are internally compensated for unity-gain operation and specify a maximum limit for equivalent input noise voltage.
Applications
- AV receiver
- Embedded PC
- Netbook
- Video broadcast and infrastructure scalable platform
- DVD recorder and player
- Multi-channel video encoder
- Professional audio mixer
Key features
- Typical equivalent input noise voltage of 5nV/√Hz at 1kHz
- Typical unity-gain bandwidth of 12MHz
- Typical CMRR of 100dB
- Typical high DC voltage gain of 100V/mV
- Typical slew rate of 5V/μs
- Ultra-low noise
- High output drive capability
- High unity-gain bandwidth and maximum output swing bandwidth
- Low distortion
- Integrated input protection diodes
- Integrated output short-circuit protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NE5532N(XBLW)#C19267481XBLW · DIP-8 | XBLW | DIP-8 | 1,420 | ₹20.72 · 1,420 in stock | View |
 | HT5532ARZ#C2886399HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 352 | ₹45.03 · 352 in stock | View |
 | HX5532-P#C41399182ZHHXDZ · DIP-8 | ZHHXDZ | DIP-8 | 220 | ₹24.17 · 220 in stock | View |
 | COS5532DT#C5155885COSINE · DIP-8 | COSINE | DIP-8 | 130 | ₹17.60 · 130 in stock | View |
 | SA5532AP#C2872405TI · PDIP-8 | TI | PDIP-8 | 100 | ₹109.04 · 100 in stock | View |
