NJM4558(LX)
Standard (General Purpose) Amplifier 2 Circuit SOP-8
SOP-8RoHSActive

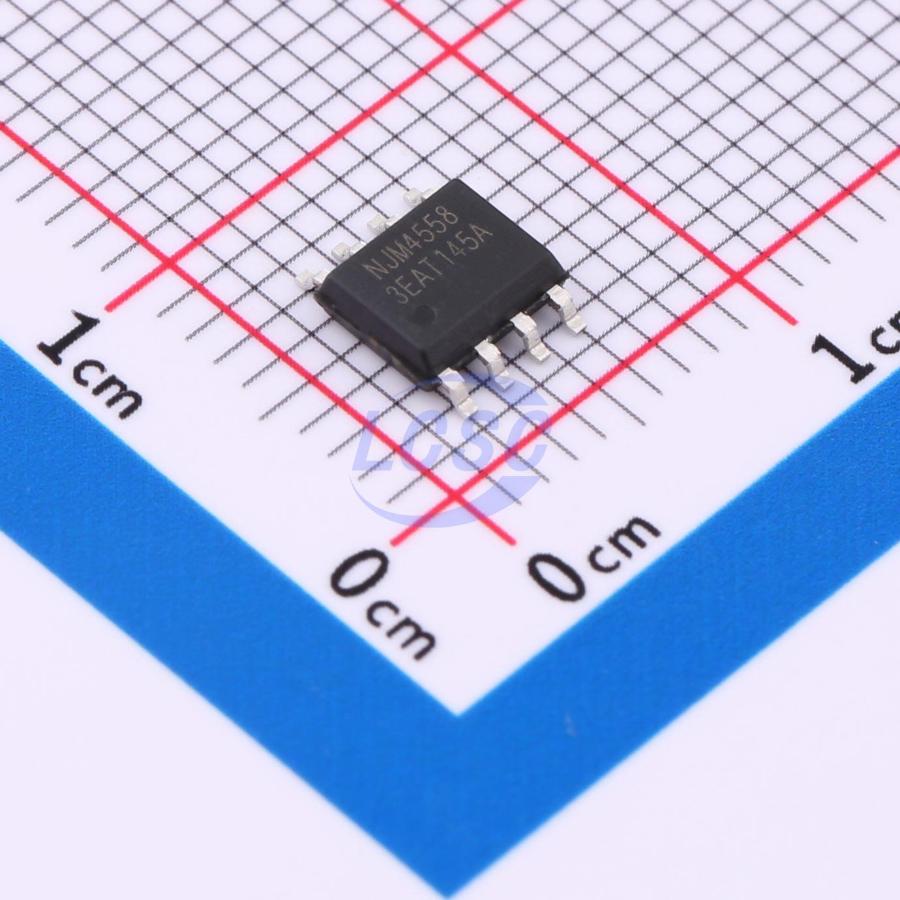

NJM4558 (LX) Dual Operational Amplifier
- Manufacturer
- lingxingic
- Manufacturer part #
- NJM4558(LX)
- Store part #
- C24833653
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,130 in stock
#C24833653
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.30 | ₹73.00 |
| 100+ | ₹5.79 | ₹579.00 |
| 300+ | ₹5.05 | ₹1,515.00 |
| 1,000+ | ₹4.48 | ₹4,480.00 |
| 4,000+ | ₹3.90 | ₹15,600.00 |
| 8,000+ | ₹3.68 | ₹29,440.00 |
10 × ₹7.30
₹73.00
excl. GST
₹86.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NJM4558(LX)
₹73.00 for 10 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 1.1V/us
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 150nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 7.5uV/℃
- Quiescent Current
- 2.8mA
- Gain Bandwidth Product
- 3MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -20V~20V
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.176 g
Overview
NJM4558 consists of two independent general-purpose op-amps. The high common-mode input voltage range and latch-up free operation make this amplifier ideal for voltage follower applications. The circuit features short-circuit protection and internal frequency compensation, ensuring stability without external components.
Key features
- Wide common-mode and differential voltage range
- No frequency compensation required
- Low power consumption
- Unity-gain bandwidth: 3MHz typical
- Gain and phase matching between amplifiers
- Low noise: 8nV/√Hz typical
- Package: SOP8/DIP8/SIP8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL072CDR(LX)#C49396713lingxingic · SOP-8 | lingxingic | SOP-8 | 3,055 | ₹12.67 · 3,055 in stock | View |
