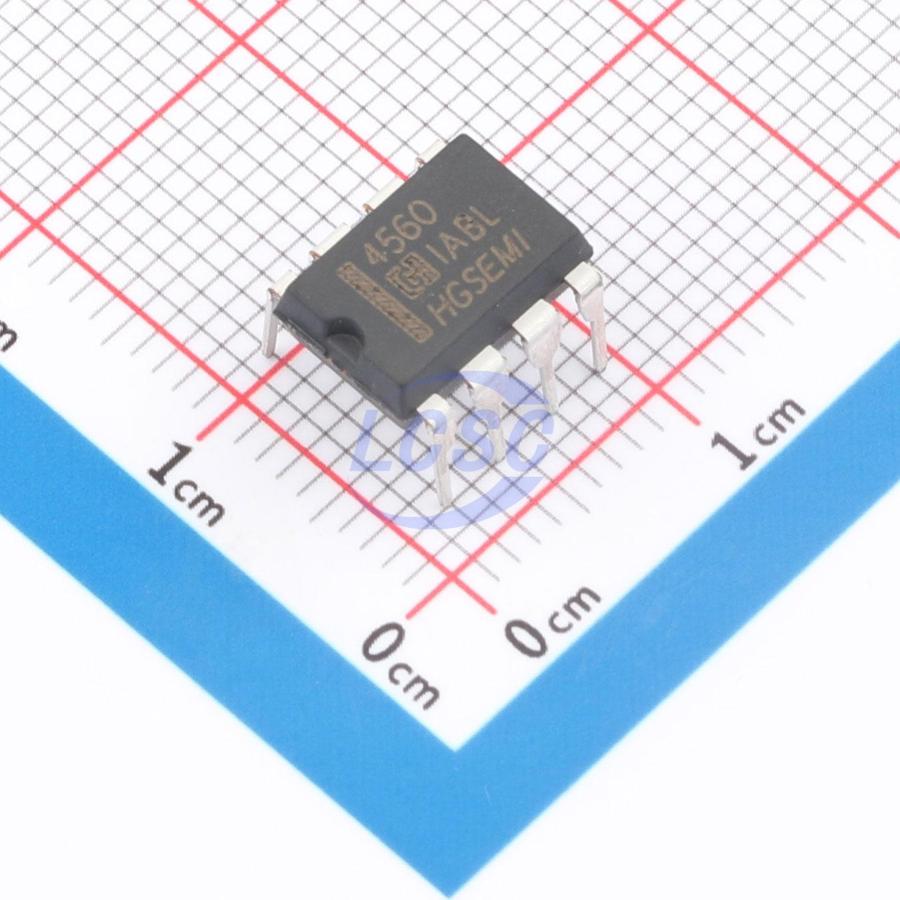

NJM4560N
15mA 2 6mV 5.5V/us 500nA 90dB 15MHz DIP-8 Instrumentation, Op Amps, Buffer Amps
DIP-8RoHSActive
Dual Audio Operational Amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- NJM4560N
- Store part #
- C41427256
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,505 in stock
#C41427256
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.82 | ₹134.10 |
| 50+ | ₹20.80 | ₹1,040.00 |
| 150+ | ₹18.22 | ₹2,733.00 |
| 500+ | ₹15.00 | ₹7,500.00 |
| 2,500+ | ₹13.57 | ₹33,925.00 |
| 5,000+ | ₹12.71 | ₹63,550.00 |
5 × ₹26.82
₹134.10
excl. GST
₹158.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
NJM4560N
₹134.10 for 5 + GST
Specifications
- Output Current
- 15mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 5.5V/us
- Input Offset Current(Ios)
- 200nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Gain Bandwidth Product
- 15MHz
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.06 g
Overview
The NJM4560 is a high-gain, wide-bandwidth, dual operational amplifier capable of driving 20V peak-to-peak into 400-Ω loads. The NJM4560 combines many of the features of the NJM4558, but with wider bandwidth and higher slew rate, making this device ideal for active filters, data and telecommunications, and many instrumentation applications.
Key features
- Operating Voltage ±2V to ±18V
- Low Noise Voltage 1.2 µVrms (Typ)
- Wide GBW 15 MHz (Typ)
- Low THD 0.05% (Typ)
- Slew Rate 5.5V/µsec (Typ) Suitable for Applications Such as Audio Preamplifier, Active Filter, Headphone Amplifier, Industrial Measurement Equipment
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| JRC4560N#C41415964HGSEMI · DIP-8 | HGSEMI | DIP-8 | 965 | ₹26.47 · 965 in stock | View | |
 | RC4580N#C2987281HGSEMI · DIP-8 | HGSEMI | DIP-8 | 295 | ₹31.02 · 295 in stock | View |
 | LM833N#C2987280HGSEMI · DIP-8 | HGSEMI | DIP-8 | 660 | ₹26.39 · 660 in stock | View |
| JRC4580N#C41427258HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,875 | ₹28.11 · 1,875 in stock | View | |
 | NJM4580N#C41427257HGSEMI · DIP-8 | HGSEMI | DIP-8 | 1,810 | ₹28.11 · 1,810 in stock | View |
