UMWDatasheet (PDF)

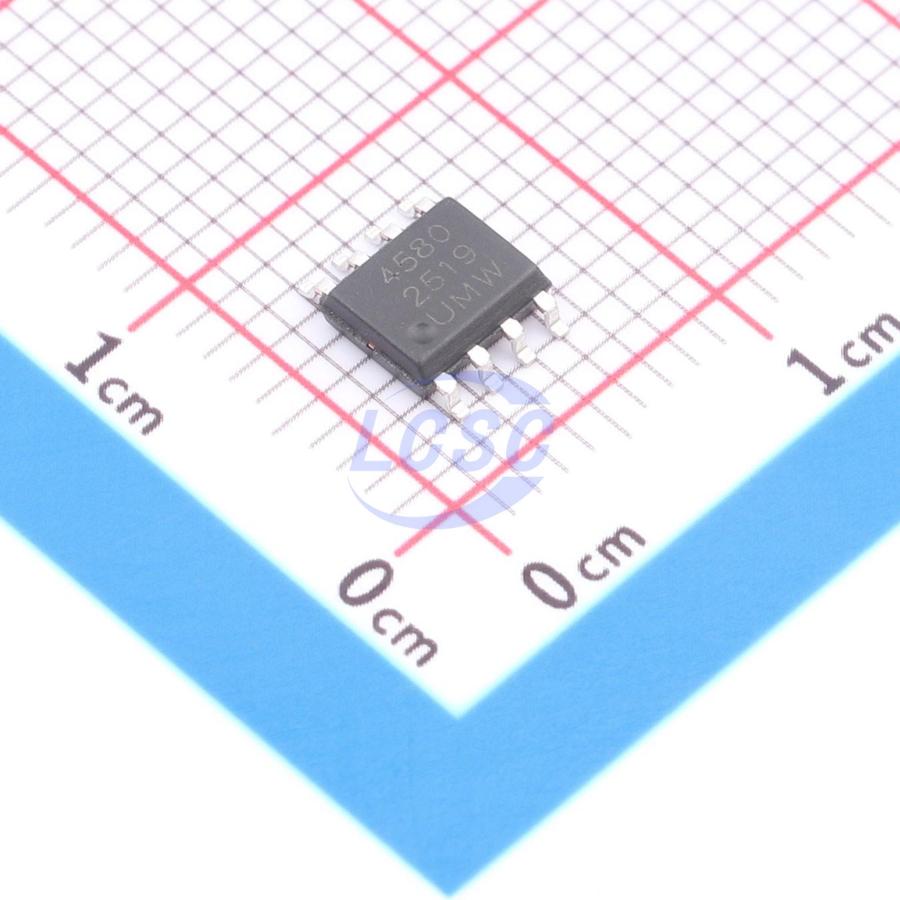

NJM4580E(UMW)
120mA 2 300uV 5V/us 500nA 100dB 10MHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- UMW
- Manufacturer part #
- NJM4580E(UMW)
- Store part #
- C52740939
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,865 in stock
#C52740939
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.50 | ₹62.50 |
| 50+ | ₹9.75 | ₹487.50 |
| 150+ | ₹8.37 | ₹1,255.50 |
| 500+ | ₹7.34 | ₹3,670.00 |
| 2,500+ | ₹6.51 | ₹16,275.00 |
| 5,000+ | ₹6.09 | ₹30,450.00 |
5 × ₹12.50
₹62.50
excl. GST
₹73.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NJM4580E(UMW)
₹62.50 for 5 + GST
Specifications
- Output Current
- 120mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 300uV
- Slew Rate
- 5V/us
- Input Offset Current(Ios)
- 200nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Gain Bandwidth Product
- 10MHz
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.196 g
Overview
The NJM4580E is a dual operational amplifier optimized for audio applications. This device features low noise, high gain bandwidth, low harmonic distortion, and high output current, making it well-suited for acoustic audio electronics such as audio preamplifiers and active filters, as well as industrial measurement equipment. Thanks to its wide operating supply voltage range, the NJM4580E can also be used in low-voltage applications.
Applications
- Audio preamplifier
- Active filter
Key features
- Low-noise voltage
- Total Harmonic Distortion: 0.0005%
- Slew Rate: 5 V/μs
- Wide Bandwidth: 10MHz
