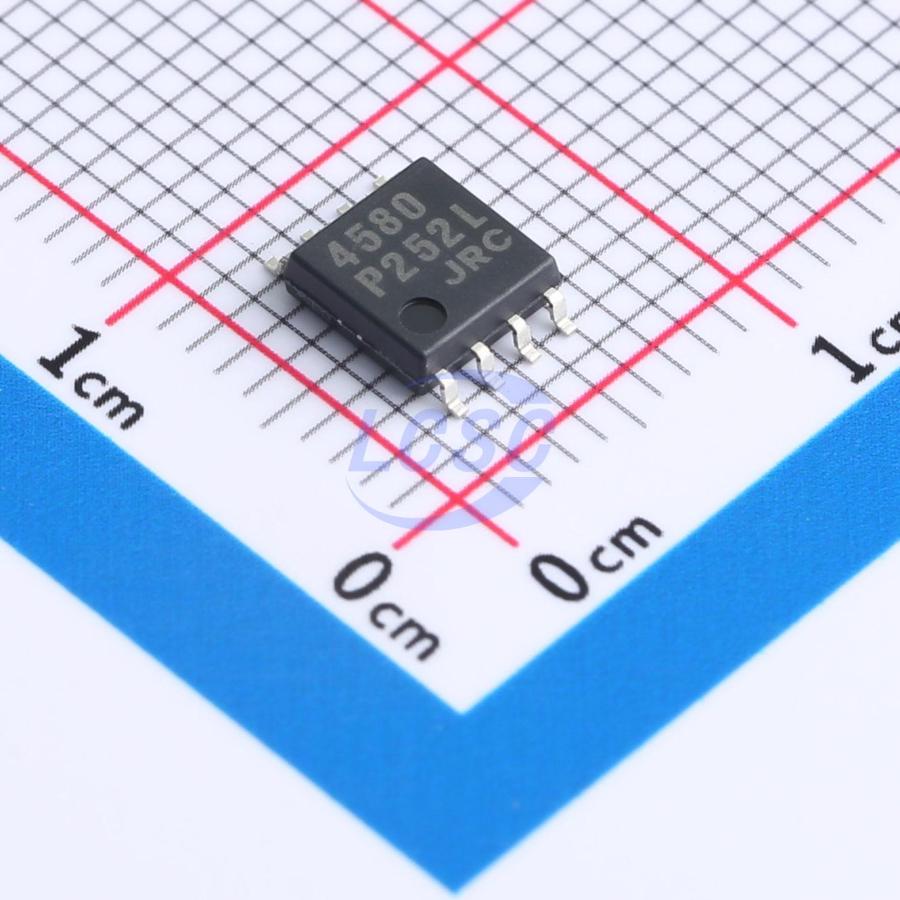

JRC

NJM4580M-TE1

2 300uV 5V/us 100nA 110dB 15MHz DMP-8 Instrumentation, Op Amps, Buffer Amps RoHS

DMP-8ROHS CompliantActive

DUAL OPERATIONAL AMPLIFIER

Manufacturer: JRC
Manufacturer part #: NJM4580M-TE1
Store part #: C8682
Package / case: DMP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,605 in stock

#C8682

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹30.32	₹151.60
50+	₹25.31	₹1,265.50
150+	₹23.17	₹3,475.50
500+	₹20.48	₹10,240.00
2,000+	₹18.95	₹37,900.00
4,000+	₹18.23	₹72,920.00

Quantity (min 5, multiples of 5)

5 × ₹30.32

₹151.60

excl. GST

₹178.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

NJM4580M-TE1

₹151.60 for 5 + GST

Specifications

Number of Channels: 2
Vos - Input Offset Voltage: 300uV
Slew Rate: 5V/us
Input Offset Current(Ios): 200nA
Operating Temperature: -40℃~+85℃
Ib - Input Bias Current: 100nA
Common Mode Rejection Ratio(CMRR): 110dB
Gain Bandwidth Product: 15MHz
Dual Supply: -18V~-2V;2V~18V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.331 g

Overview

The NJM4580 is a dual operational amplifier, specially designed for improving the tone control, which is most suitable for the audio application. Featuring noiseless, higher gain bandwidth, high output current and low distortion ratio, and it is most suitable not only for acoustic electronic parts of audio pre - amp and active filter, but also for the industrial measurement tools. It is also suitable for the head phone amp at higher output current, and further more, it can be applied for the handy type set operational amplifier of general purpose in application of low voltage single supply type which is properly biased of the low voltage source. The D - Rank type products(NJM4580DD/LD/MD/ED) have specified maximum limits for equivalent input noise voltage.

Applications

Audio pre - amp
Active filter
Industrial measurement tools
Head phone amp
Handy type set operational amplifier of general purpose in low voltage single supply type application

Key features

Operating Voltage ±2V~±18V
Low Input Noise Voltage 0.8µVrms typ. (RIAA)
Wide GBW 15MHz typ.
Low Distortion 0.0005% typ.
Slew Rate 5V/µs typ.
Bipolar Technology
Package Outline DIP8, SIP8, DMP8, SSOP8, MSOP8(VSP8) MEET JEDEC MO - 187 - DA SOP8 JEDEC 150mil

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MC4580G-S08-R#C73206UTC · SOP-8	UTC	SOP-8	6,160	₹14.75 · 6,160 in stock	View
NE5532DR-MS#C22462564MSKSEMI · SOP-8	MSKSEMI	SOP-8	1,005	₹14.78 · 1,005 in stock	View
ASOPD4580S-R#C2758239ASDsemi · SOP-8	ASDsemi	SOP-8	300	₹15.51 · 300 in stock	View
AiP4580SA8.TR#C3002784Wuxi I-core Elec · SOP-8	Wuxi I-core Elec	SOP-8	410	₹22.03 · 410 in stock	View
HT2365ARZ#C5241929HTCSEMI · SOP-8	HTCSEMI	SOP-8	550	₹36.28 · 550 in stock	View
