JRCDatasheet (PDF)

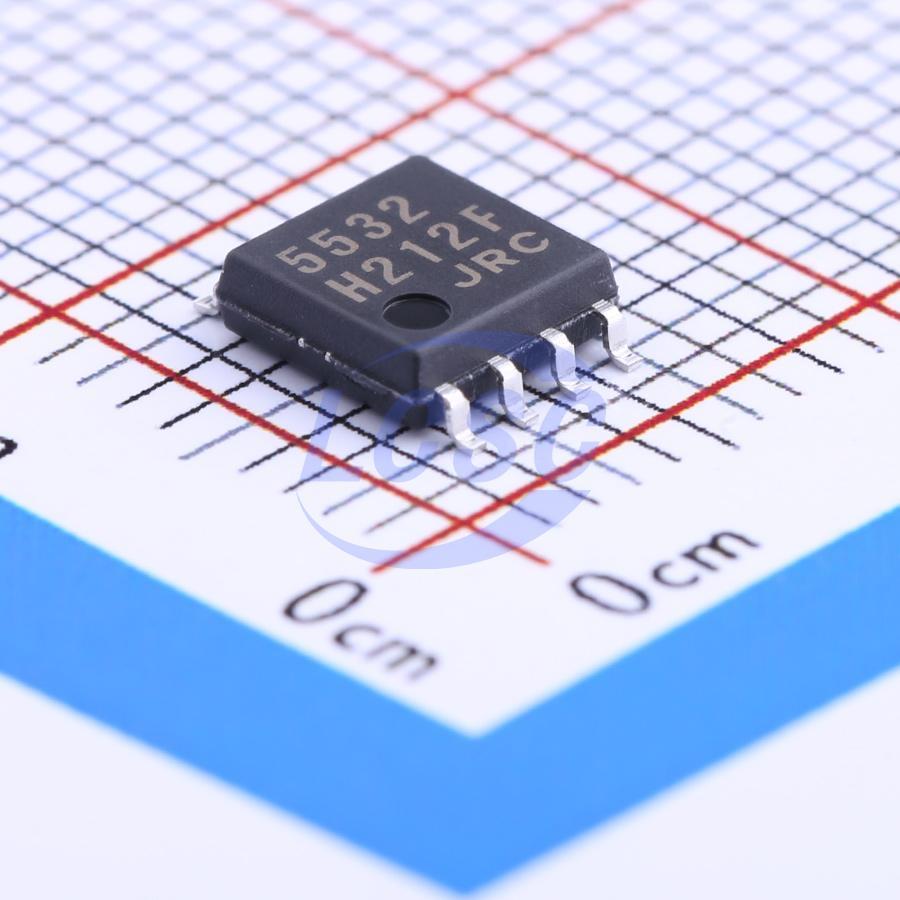

NJM5532M-TE1
38mA 2 4mV 8V/us 200nA 100dB 9mA 10MHz DMP-8 Instrumentation, Op Amps, Buffer Amps RoHS
DMP-8ROHS CompliantActive
LOW-NOISE DUAL OPERATIONAL AMPLIFIER
- Manufacturer
- JRC
- Manufacturer part #
- NJM5532M-TE1
- Store part #
- C8686
- Package / case
- DMP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,549 in stock
#C8686
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.36 | ₹63.36 |
| 10+ | ₹50.51 | ₹505.10 |
| 30+ | ₹44.85 | ₹1,345.50 |
| 100+ | ₹38.10 | ₹3,810.00 |
| 500+ | ₹31.79 | ₹15,895.00 |
| 1,000+ | ₹30.05 | ₹30,050.00 |
1 × ₹63.36
₹63.36
excl. GST
₹74.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
NJM5532M-TE1
₹63.36 for 1 + GST
Specifications
- Output Current
- 38mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 8V/us
- Input Offset Current(Ios)
- 10nA
- Operating Temperature
- -20℃~+75℃
- Ib - Input Bias Current
- 200nA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Quiescent Current
- 9mA
- Gain Bandwidth Product
- 10MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 5nV/√Hz@1kHz
- Dual Supply
- 3V~22V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
The NJM5532 is a high performance dual low noise operational amplifier. Compared to the standard dual operational amplifiers, such as the NJM1458, it shows better noise performance, improved output drive capability, and considerably higher small-signal and power bandwidths. it is compensated internally for voltage follower circuit. This makes the device especially suitable for application in high quality and professional audio equipment, instrumentation, control circuits, and telephone channel amplifiers. If very low noise characteristic is of prime importance, it is recommended D-Rank type products(NJM5532DD/LD/MD). These have specified maximum limits for equivalent input noise voltage.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS5532SRB#C5241965COSINE · SOP-8 | COSINE | SOP-8 | 205 | ₹16.03 · 205 in stock | View |
 | COS5532SR#C693059COSINE · SOP-8 | COSINE | SOP-8 | 4,200 | ₹18.10 · 4,200 in stock | View |
 | HT4582ARZ#C5143072HTCSEMI · SOP-8 | HTCSEMI | SOP-8 | 900 | ₹23.18 · 900 in stock | View |
 | HX5532-S#C41399181ZHHXDZ · SOP-8 | ZHHXDZ | SOP-8 | 815 | ₹12.91 · 815 in stock | View |
 | NE5532DR#C7426TI · SOIC-8 | TI | SOIC-8 | 1,72,910 | ₹14.35 · 1,72,910 in stock | View |
