onsemiDatasheet (PDF)

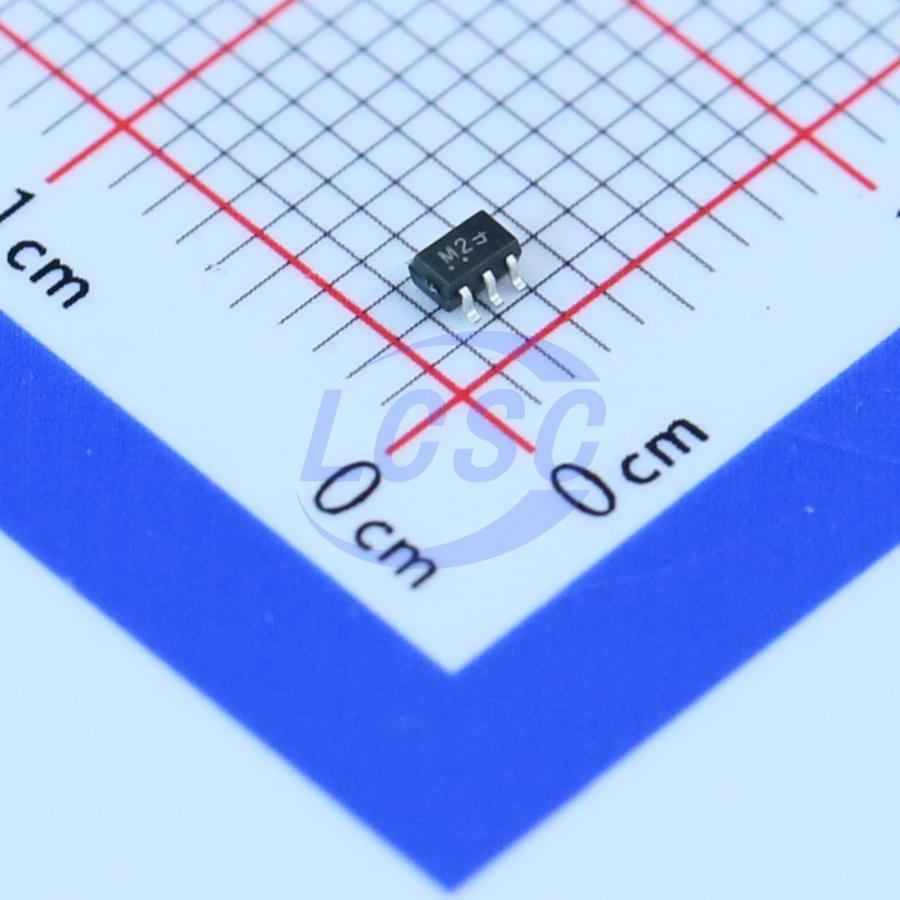

NL17SZ126DFT2G
1.65V~5.5V 1 1 2.6ns@5V,50pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-5ROHS3 CompliantActive
Non-Inverting 3-State Buffer
- Manufacturer
- onsemi
- Manufacturer part #
- NL17SZ126DFT2G
- Store part #
- C97775
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,620 in stock
#C97775
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.11 | ₹81.10 |
| 100+ | ₹6.52 | ₹652.00 |
| 300+ | ₹5.73 | ₹1,719.00 |
| 3,000+ | ₹5.13 | ₹15,390.00 |
| 6,000+ | ₹4.66 | ₹27,960.00 |
| 9,000+ | ₹4.42 | ₹39,780.00 |
10 × ₹8.11
₹81.10
excl. GST
₹95.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ126DFT2G
₹81.10 for 10 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 32mA
- Series
- 17SZ
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 2.6ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NL17SZ126 is a high performance single noninverting buffer operating from a 1.65V to 5.5V supply.
Key features
- Extremely High Speed: tpD 2.6ns (typical) at VCC = 5.0V
- Designed for 1.65V to 5.5V VCC Operation
- Over Voltage Tolerant Inputs and Outputs
- LVTTL Compatible
- Interface Capability With 5.0V TTL Logic with VCC = 3.0V
- LVCMOS Compatible
- 24mA Balanced Output Sink and Source Capability
- Near Zero Static Supply Current Substantially Reduces System Power Requirements
- 3-State OE Input is Active HIGH
- Chip Complexity = 36 FETs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q100 Qualified and PPAP Capable
- These Devices are Pb-Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NLV17SZ125DFT2G#C893571onsemi · SOT-353 | onsemi | SOT-353 | 5 | ₹32.94 · 5 in stock | View |
 | NL17SZ125DFT2G#C97774onsemi · SOT-353 | onsemi | SOT-353 | 11,490 | ₹6.55 · 11,490 in stock | View |
 | 74LVC1G125SE-7#C151022DIODES · SOT-353 | DIODES | SOT-353 | 1,930 | ₹9.22 · 1,930 in stock | View |
 | 74LVC1G126SE-7#C460528DIODES · SOT-353 | DIODES | SOT-353 | 2,000 | ₹9.34 · 2,000 in stock | View |
 | SN74LVC1G125DCKR-TP#C42394074TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,640 | ₹5.48 · 1,640 in stock | View |
