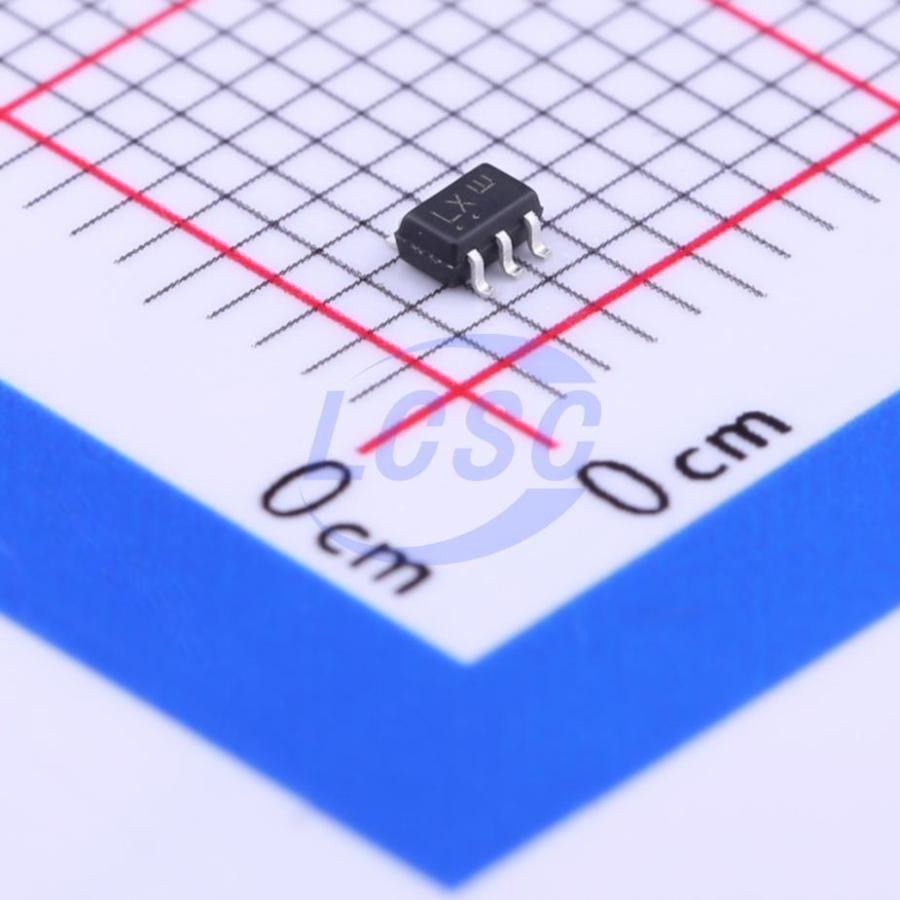

NL17SZ17DFT2G
Schmitt trigger 1.65V~5.5V 1 1 3.7ns@5V,50pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-5ROHS3 CompliantActive
Single Non-Inverting Buffer with Schmitt Trigger
- Manufacturer
- onsemi
- Manufacturer part #
- NL17SZ17DFT2G
- Store part #
- C233557
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,810 in stock
#C233557
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.70 | ₹57.00 |
| 100+ | ₹4.41 | ₹441.00 |
| 300+ | ₹3.76 | ₹1,128.00 |
| 3,000+ | ₹3.28 | ₹9,840.00 |
| 6,000+ | ₹2.88 | ₹17,280.00 |
| 9,000+ | ₹2.70 | ₹24,300.00 |
10 × ₹5.70
₹57.00
excl. GST
₹67.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NL17SZ17DFT2G
₹57.00 for 10 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 32mA
- Input type
- Schmitt trigger
- Series
- 17SZ
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -55℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 3.7ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The NL17SZ17 is a single Non−inverting Schmitt Trigger Buffer in tiny footprint packages.
Key features
- Designed for 1.65 V to 5.5 V VCC Operation
- 3.7 ns tPD at VCC = 5 V (typ)
- Input/Output Overvoltage Tolerant up to 5.5 V
- IOFF Supports Partial Power Down Protection
- Source/Sink 24 mA at 3.0 V
- Available in SC−88A, SC−74A, SOT−553, SOT−953 and UDFN6 Packages
- Chip Complexity < 100 FETs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
