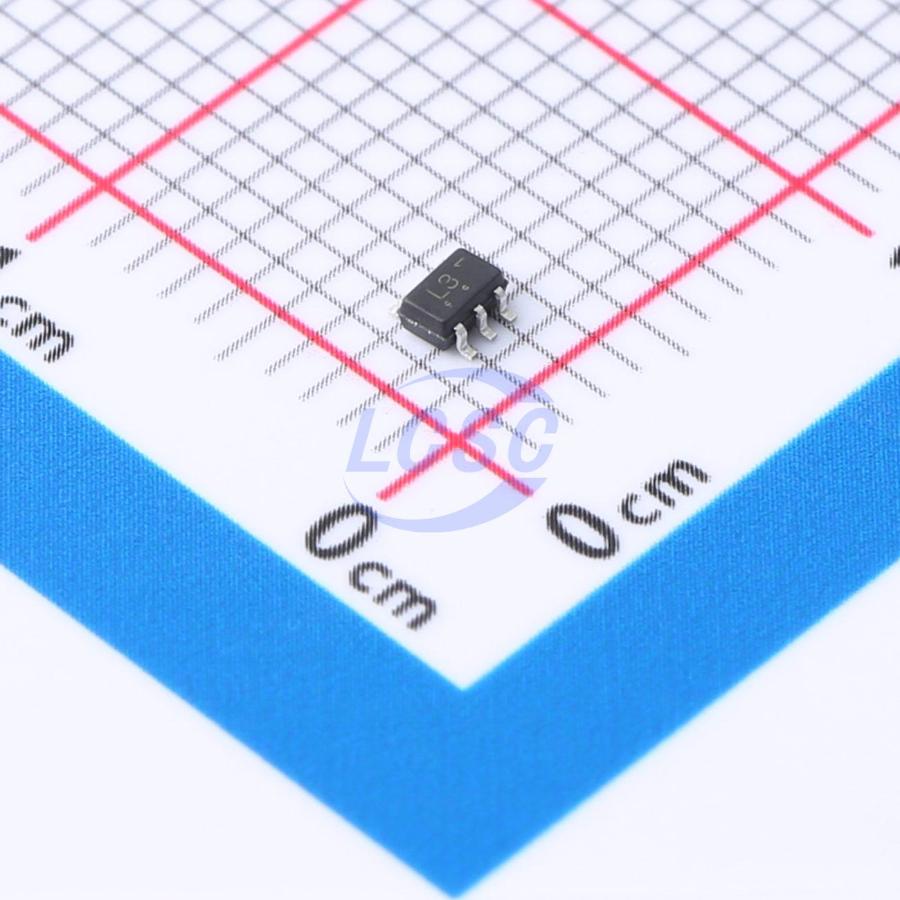

NLV17SZ02DFT2G
1uA 1.65V~5.5V 4.3ns@5V,50pF SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
2-Input NOR Gate
- Manufacturer
- onsemi
- Manufacturer part #
- NLV17SZ02DFT2G
- Store part #
- C893567
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,065 in stock
#C893567
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.83 | ₹64.15 |
| 50+ | ₹10.25 | ₹512.50 |
| 150+ | ₹8.97 | ₹1,345.50 |
| 500+ | ₹8.00 | ₹4,000.00 |
| 3,000+ | ₹7.22 | ₹21,660.00 |
| 6,000+ | ₹6.84 | ₹41,040.00 |
5 × ₹12.83
₹64.15
excl. GST
₹75.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NLV17SZ02DFT2G
₹64.15 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input;Local shutdown mode
- Logic Family
- 17SZ Series
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 2.8V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 4.3ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The NL17SZ02 is a single 2−input NOR Gate in tiny footprint packages.
Key features
- Designed for 1.65 V to 5.5 V VCC Operation
- 2.4 ns tPD at VCC = 5 V (typ)
- Inputs/Outputs Overvoltage Tolerant up to 5.5 V
- IOFF Supports Partial Power Down Protection
- Source/Sink 24 mA at 3.0 V
- Available in SC−88A, SC−74A, SOT−553, SOT−953 and UDFN6 Packages
- Chip Complexity < 100 FETs
- NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
