onsemi

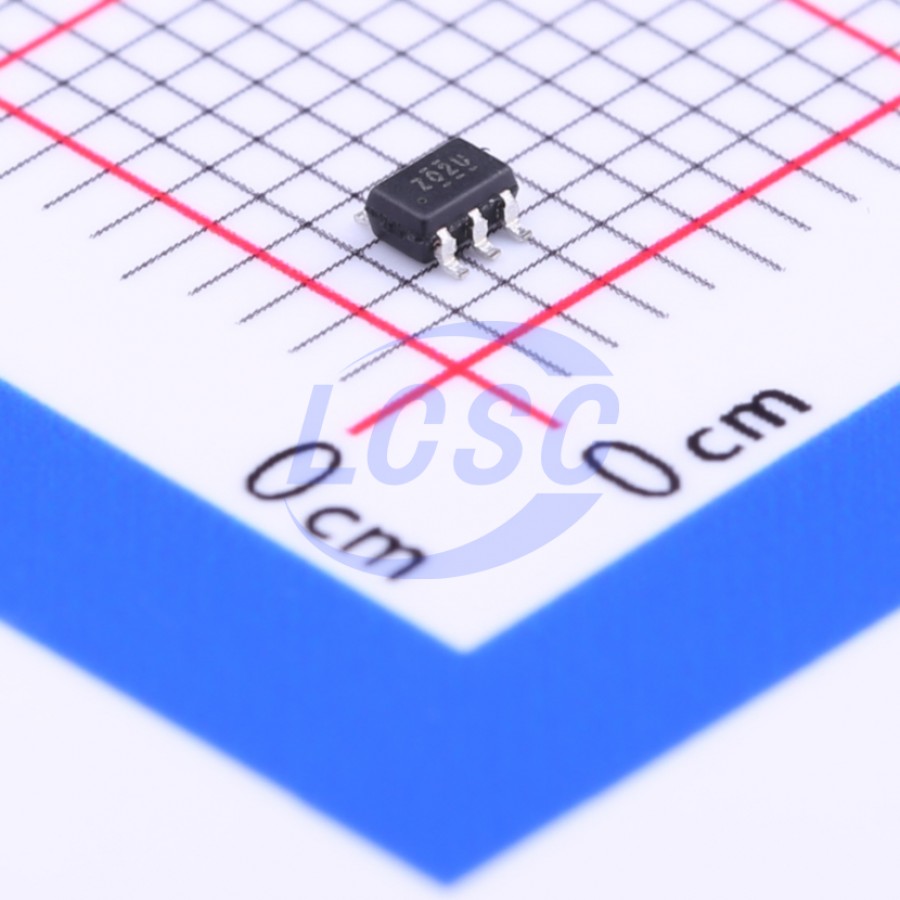

NC7SZ02P5X

2uA 1.65V~5.5V 4.3ns@5V,50pF SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

TinyLogic UHS Two-Input NOR Gate

Manufacturer: onsemi
Manufacturer part #: NC7SZ02P5X
Store part #: C232802
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,180 in stock

#C232802

Stock & price checked 31 h ago

Quantity	Unit price	Pack price
10+	₹8.78	₹87.80
100+	₹7.04	₹704.00
300+	₹6.18	₹1,854.00
3,000+	₹5.53	₹16,590.00
6,000+	₹5.00	₹30,000.00
9,000+	₹4.75	₹42,750.00

Quantity (min 10, multiples of 10)

10 × ₹8.78

₹87.80

excl. GST

₹103.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

NC7SZ02P5X

₹87.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Local shutdown mode;Overvoltage-tolerant input
Operating Temperature: -40℃~+85℃
Logic Family: 7SZ Series
Output Logic Level - High: 3.8V~4.2V;4.4V~4.5V
Quiescent Current(Iq): 2uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Output Logic Level - Low: 0V~100mV;220mV~550mV
Propagation Delay: 4.3ns@5V,50pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.028 g

Overview

Ultra-High Speed: tPD 2.4ns (Typical) into 50pF at 5V VCC High Output Drive: ±24mA at 3V VCC Broad VCC Operating Range: 1.65V to 5.5V Matches Performance of LCX Operated at 3.3V Power Down High-Impedance Inputs/Outputs Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation Proprietary Noise/EMI Reduction Circuitry Ultra-Small MicroPak™ Packages Space-Saving SOT23 and SC70 Packages The NC7SZ02 is a single two-input NOR gate from the Ultra-High Speed (UHS) series of TinyLogic. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC operating range. The inputs and output are high-impedance when VCC is 0V. Inputs tolerate voltages up to 6V, independent of VCC operating voltage.

Key features

Ultra-High Speed: tPD 2.4ns (Typical) into 50pF at 5V VCC
High Output Drive: ±24mA at 3V VCC
Broad VCC Operating Range: 1.65V to 5.5V
Matches Performance of LCX Operated at 3.3V
Power Down High-Impedance Inputs/Outputs
Over-Voltage Tolerance Inputs Facilitate 5V to 3V Translation
Proprietary Noise/EMI Reduction Circuitry
Ultra-Small MicroPak™ Packages
Space-Saving SOT23 and SC70 Packages

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
MSN74LVC1G02DCKR#C42403088MSKSEMI · SC-70-5	MSKSEMI	SC-70-5	1,890	₹7.18 · 1,890 in stock	View
TC7SZ02FU,LJ(CT#C388847TOSHIBA · SOT-353	TOSHIBA	SOT-353	2,610	₹16.84 · 2,610 in stock	View
TP74LVC1G02C5#C42460126TECH PUBLIC · SOT-353	TECH PUBLIC	SOT-353	2,830	₹7.55 · 2,830 in stock	View
AIP74LVC1G02GC353.TR#C4945061Wuxi I-core Elec · SOT-353	Wuxi I-core Elec	SOT-353	3,390	₹12.34 · 3,390 in stock	View
NLV17SZ02DFT2G#C893567onsemi · SOT-353	onsemi	SOT-353	1,065	₹12.83 · 1,065 in stock	View
