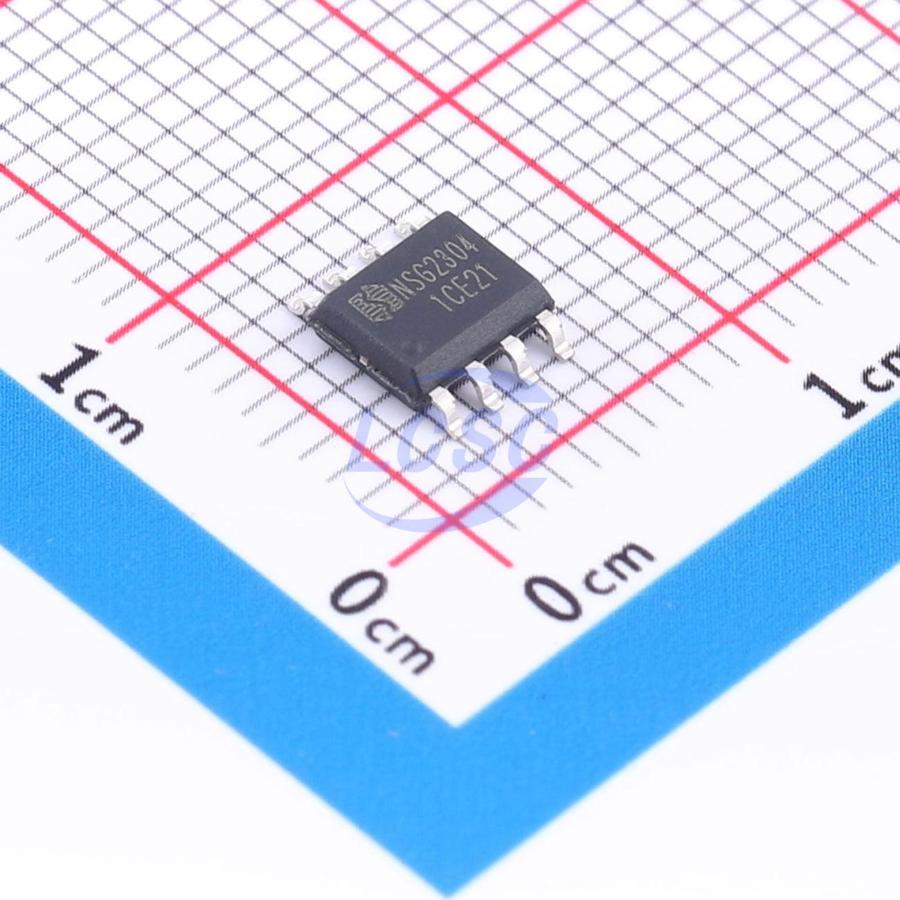

NSG2304
10V~20V 600mA 300mA SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG2304
- Store part #
- C53463327
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,985 in stock
#C53463327
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.94 | ₹73.94 |
| 10+ | ₹59.19 | ₹591.90 |
| 30+ | ₹52.91 | ₹1,587.30 |
| 100+ | ₹44.89 | ₹4,489.00 |
| 500+ | ₹41.42 | ₹20,710.00 |
| 1,000+ | ₹39.47 | ₹39,470.00 |
1 × ₹73.94
₹73.94
excl. GST
₹87.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG2304
₹73.94 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 120uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
NSG2304 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC with independent high-side and low-side referenced output channels. Built on a high-voltage compatible process, it integrates both high- and low-side gate drive circuits on a single chip, with logic input levels compatible with CMOS or LSTTL logic outputs as low as 3.3V. An integrated bootstrap diode simplifies the peripheral circuitry by charging the high-side supply. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply voltage of 700V. Available in SOP8 package, operating over a temperature range of -40℃ to 125℃.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Inverter Drive
Key features
- Floating-channel bootstrap operation
- Maximum operating voltage +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dVS/dt immunity up to ±50V/ns
- VS negative bias capability down to -9V
- Integrated VCC/VB UVLO; UVLO positive threshold 8.9V, UVLO negative threshold 8.2V
- Propagation delay characteristics: turn-on/turn-off delay Ton/Toff = 130ns/130ns, delay matching 50ns
- Cross-conduction prevention with dead time 100ns
- Wide temperature range -40°C ~ 125°C
- Output stage source/sink current capability 300mA/600mA
- Integrated bootstrap diode
- RoHS compliant, SOP8 (S)
