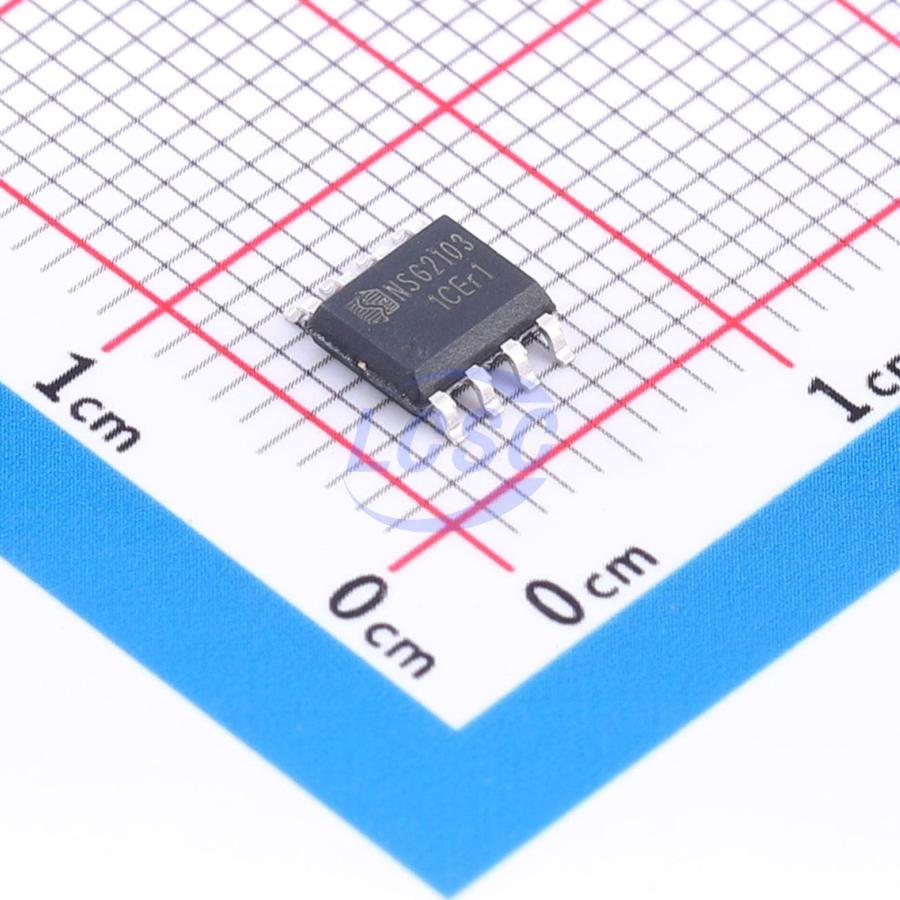

NSG2103
10V~20V 600mA 300mA SOP8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG2103
- Store part #
- C53436220
- Package / case
- SOP8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,675 in stock
#C53436220
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.25 | ₹57.25 |
| 10+ | ₹45.97 | ₹459.70 |
| 30+ | ₹41.20 | ₹1,236.00 |
| 100+ | ₹35.13 | ₹3,513.00 |
| 500+ | ₹32.53 | ₹16,265.00 |
| 1,000+ | ₹30.80 | ₹30,800.00 |
1 × ₹57.25
₹57.25
excl. GST
₹67.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG2103
₹57.25 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 120uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.277 g
Overview
NSG2103 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC with independent high-side and low-side referenced output channels. Fabricated using a high-low voltage compatible process, the high- and low-side gate drive circuits are integrated on a single chip, with logic input levels compatible with CMOS or LSTTL logic outputs as low as 3.3V. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply offset voltage of 700V. Available in SOP8 package, operating over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Inverter Drive
Key features
- Floating high-side channel with bootstrap operation
- Maximum operating voltage +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC undervoltage lockout
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay characteristics: turn-on/turn-off delay Ton/Toff = 650ns/130ns
- Delay matching time 50ns
- Cross-conduction protection with dead time 520ns
- Wide temperature range -40℃ to 125℃
- Output stage source/sink current capability 300mA/600mA
- RoHS compliant
- SOP8 (S)
