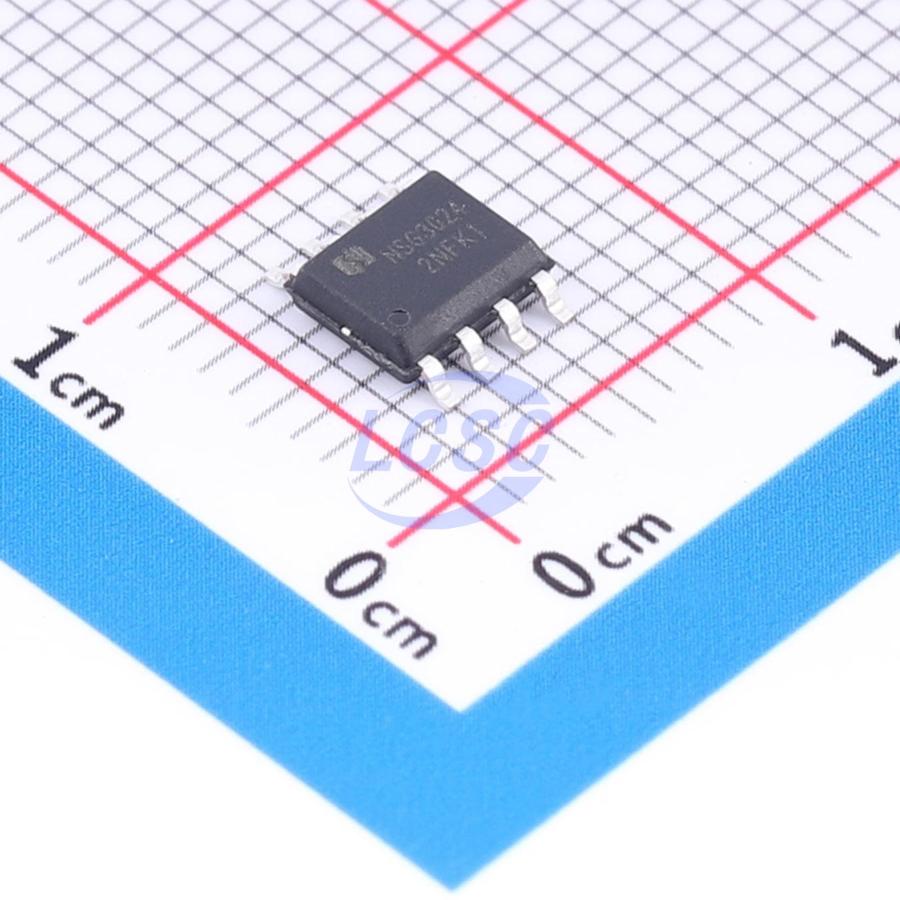

NSG3024
10V~20V 1.1A 600mA SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG3024
- Store part #
- C53436484
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,875 in stock
#C53436484
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.46 | ₹117.30 |
| 50+ | ₹18.84 | ₹942.00 |
| 150+ | ₹16.86 | ₹2,529.00 |
| 500+ | ₹14.38 | ₹7,190.00 |
| 2,500+ | ₹13.28 | ₹33,200.00 |
| 4,000+ | ₹12.62 | ₹50,480.00 |
5 × ₹23.46
₹117.30
excl. GST
₹138.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG3024
₹117.30 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Quiescent Current
- 50uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 1.1A
- Rise Time
- 35ns
- Fall Time
- 25ns
- Current - Output High(IOH)
- 600mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.277 g
Overview
NSG3024 is a high-voltage, high-speed power MOSFET high- and low-side gate driver IC with independent high-side and low-side referenced output channels. Fabricated using a high-low voltage compatible process, the high- and low-side gate drive circuits are integrated on a single chip. Logic input levels are compatible with CMOS or LSTTL logic outputs down to 3.3V. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply voltage of 300V. Available in SOP8 package, operating over a temperature range of -40℃ to 125℃.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Inverter Drive
Key features
- Floating high-side channel with bootstrap operation
- Maximum operating voltage +300V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated UVLO circuit
- VCC UVLO positive-going threshold 8.7V
- VCC UVLO negative-going threshold 7.7V
- Propagation delay characteristics: high-side turn-on/turn-off delay Ton/Toff = 680ns/140ns, low-side turn-on/turn-off delay Ton/Toff = 150ns/130ns
- Shoot-through protection with 540ns dead time
- Wide temperature range -40℃~125℃
- Output stage source/sink current capability 0.6A/1.1A
- Integrated bootstrap diode
- RoHS-compliant SOP8 (S)
