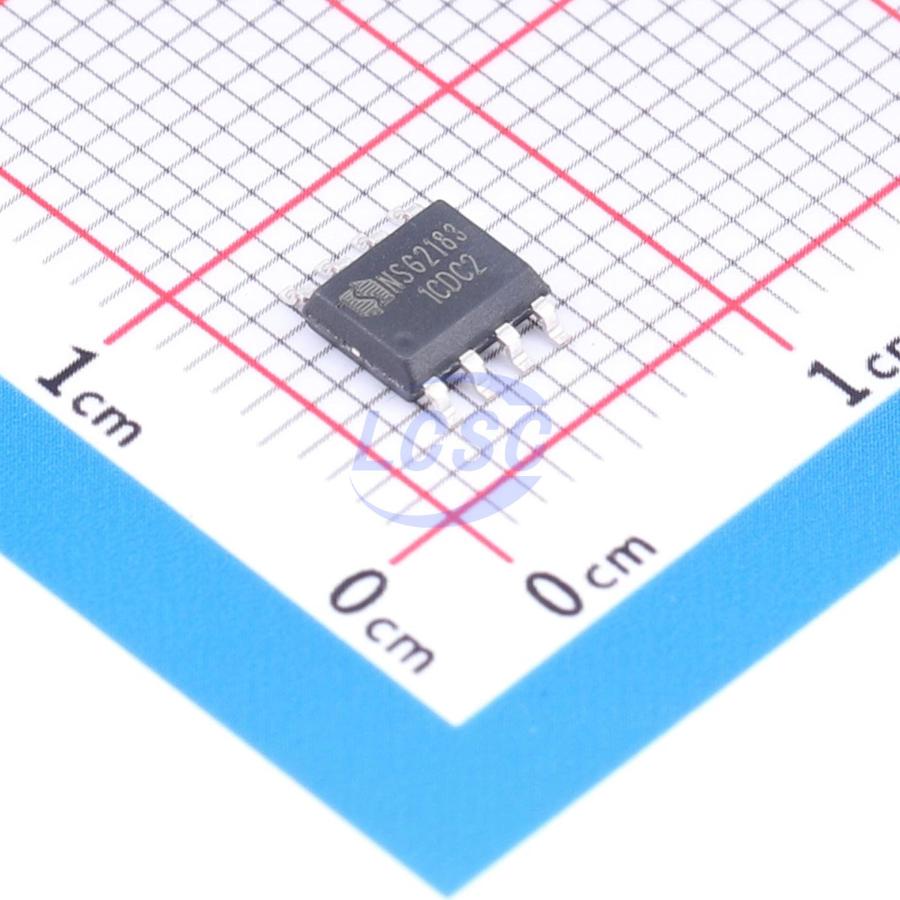

NSG2183
10V~20V 4A 4A SOP-8 Gate Drivers
- Manufacturer
- NCE
- Manufacturer part #
- NSG2183
- Store part #
- C53436451
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,872 in stock
#C53436451
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.10 | ₹125.10 |
| 10+ | ₹102.77 | ₹1,027.70 |
| 30+ | ₹91.50 | ₹2,745.00 |
| 100+ | ₹80.44 | ₹8,044.00 |
| 500+ | ₹73.94 | ₹36,970.00 |
| 1,000+ | ₹70.48 | ₹70,480.00 |
1 × ₹125.10
₹125.10
excl. GST
₹147.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NSG2183
₹125.10 for 1 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 150uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side;High Side
- Current - Output Low(IOL)
- 4A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.273 g
Overview
NSG2183 is a high-voltage, high-speed power MOSFET/IGBT high- and low-side gate driver IC featuring two non-independent propagation channels. It integrates high- and low-side UVLO, overvoltage clamp, and shoot-through lockout protection circuits. The device offers high peak current output capability, with logic inputs compatible with CMOS or LSTTL logic output levels as low as 3.3V. Peak output current reaches up to 4A, and the floating channel supports a maximum operating voltage of 700V. Suitable for driving N-channel high-voltage power MOSFETs/IGBTs and similar devices.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Micro Inverter Driver
Key features
- Floating channel for bootstrap operation
- Maximum operating voltage: 700V
- Compatible with 3.3V, 5V, and 15V input logic
- dV/dt immunity up to ±50V/nsec
- Vs negative voltage tolerance down to -9V
- Gate drive voltage: 10V to 20V
- High- and low-side undervoltage lockout
- UVLO positive threshold: 8.9V
- UVLO negative threshold: 8.2V
- Cross-conduction prevention dead-time logic
- Built-in 400ns dead time
- Turn-on/turn-off propagation delay
- Ton/Toff = 130ns/130ns
- High- and low-side delay matching
- Drive current capability: source/sink = 4.0A/4.0A
- RoHS compliant
- SOP8 (S)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NSG6020#C53436455NCE · SOP-8 | NCE | SOP-8 | 3,151 | ₹88.91 · 3,151 in stock | View |
 | NSG6021#C53436456NCE · SOP-8 | NCE | SOP-8 | 1,165 | ₹88.91 · 1,165 in stock | View |
 | NSG2181#C53436217NCE · SOP-8 | NCE | SOP-8 | 1,859 | ₹125.10 · 1,859 in stock | View |
 | NSG2184#C53436218NCE · SOP-8 | NCE | SOP-8 | 314 | ₹117.30 · 314 in stock | View |
 | NSG2186#C53436219NCE · SOP-8 | NCE | SOP-8 | 3,920 | ₹110.80 · 3,920 in stock | View |
