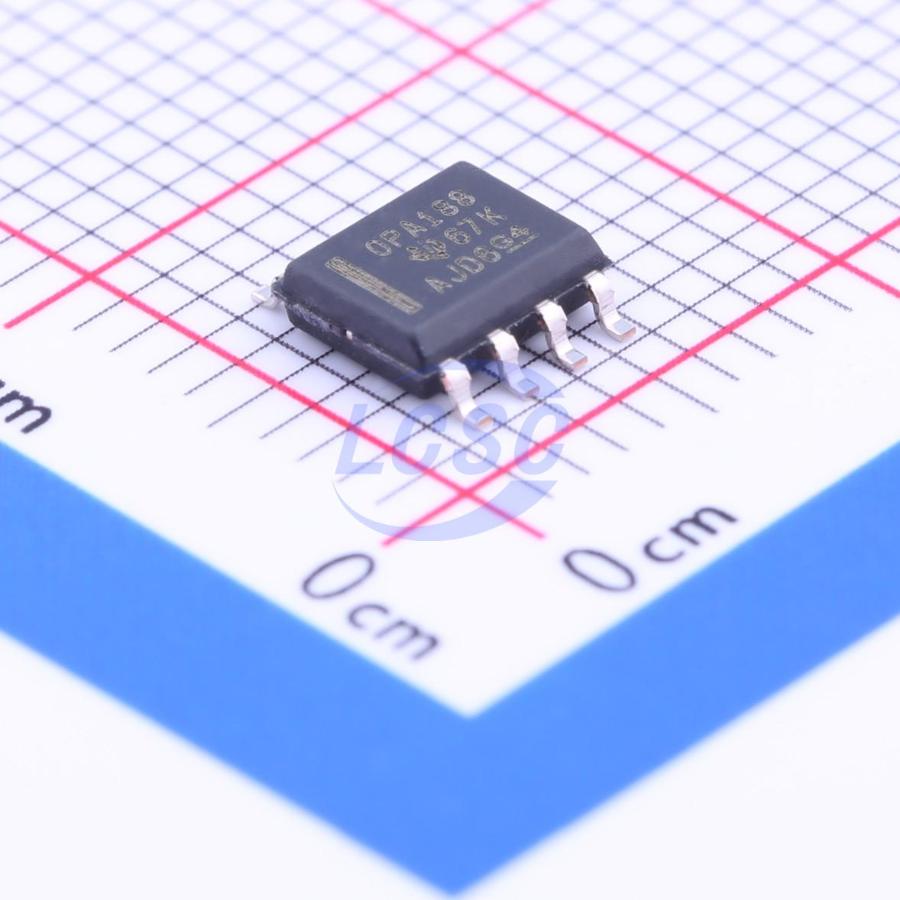

OPA188AIDR
16mA 1 25uV 0.8V/us 146dB 160pA 450uA 2MHz Rail-to-rail output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Precision, Low-Noise, Rail-to-Rail Output, 36-V, Zero-Drift Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- OPA188AIDR
- Store part #
- C85166
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,525 in stock
#C85166
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.24 | ₹101.24 |
| 10+ | ₹81.42 | ₹814.20 |
| 30+ | ₹71.63 | ₹2,148.90 |
| 100+ | ₹61.82 | ₹6,182.00 |
| 500+ | ₹55.95 | ₹27,975.00 |
| 1,000+ | ₹52.91 | ₹52,910.00 |
1 × ₹101.24
₹101.24
excl. GST
₹119.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA188AIDR
₹101.24 for 1 + GST
Specifications
- Output Current
- 16mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 25uV
- Slew Rate
- 0.8V/us
- Input Offset Current(Ios)
- 320pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 146dB
- Ib - Input Bias Current
- 160pA
- Input Offset Voltage Drift(Vos TC)
- 30nV/℃
- Quiescent Current
- 450uA
- Gain Bandwidth Product
- 2MHz
- Features
- EMI filtering/RF suppression;Zero drift / auto-zero;Built-in compensation;Reverse-phase input protection
- Input Voltage Noise Density
- 8.8nV/√Hz@1kHz
- Dual Supply
- -18V~-2V;2V~18V
- Rail to Rail
- Rail-to-rail output
- Single Supply
- 4V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The OPA188 operational amplifier uses TI's proprietary auto-zeroing techniques to provide low offset voltage (25 μV maximum) and near zero-drift over time and temperature. This miniature, high-precision, low-quiescent current amplifier offers high input impedance and rail-to-rail output swing within 15 mV of the rails. The input common-mode range includes the negative rail. Either single or dual supplies can be used in the range from 4 V to 36 V (±2 V to ±18 V). The single version is available in the MicroSIZE SOT23-5, MSOP-8, and SO-8 packages. All versions are specified for operation from -40°C to +125°C.
Applications
- Bridge Amplifiers
- Strain Gauges
- Transducer Applications
- Temperature Measurement
- Electronic Scales
- Medical Instrumentation
- Resistance Temperature Detectors
Key features
- Low Offset Voltage: 25 μV (Maximum)
- Zero-Drift: 0.03 μV/°C
- Low Noise: 8.8 nV/√Hz – 0.1-Hz to 10-Hz
- Noise: 0.25 μVPP
- Excellent DC Precision: PSRR: 142 dB – CMRR: 146 dB – Open-Loop Gain: 136 dB
- Gain Bandwidth: 2 MHz
- Quiescent Current: 510 μA (Maximum)
- Wide Supply Range: ±2 V to ±18 V
- Rail-to-Rail Output
- Input Includes Negative Rail
- RFI Filtered Inputs
- MicroSIZE Packages
