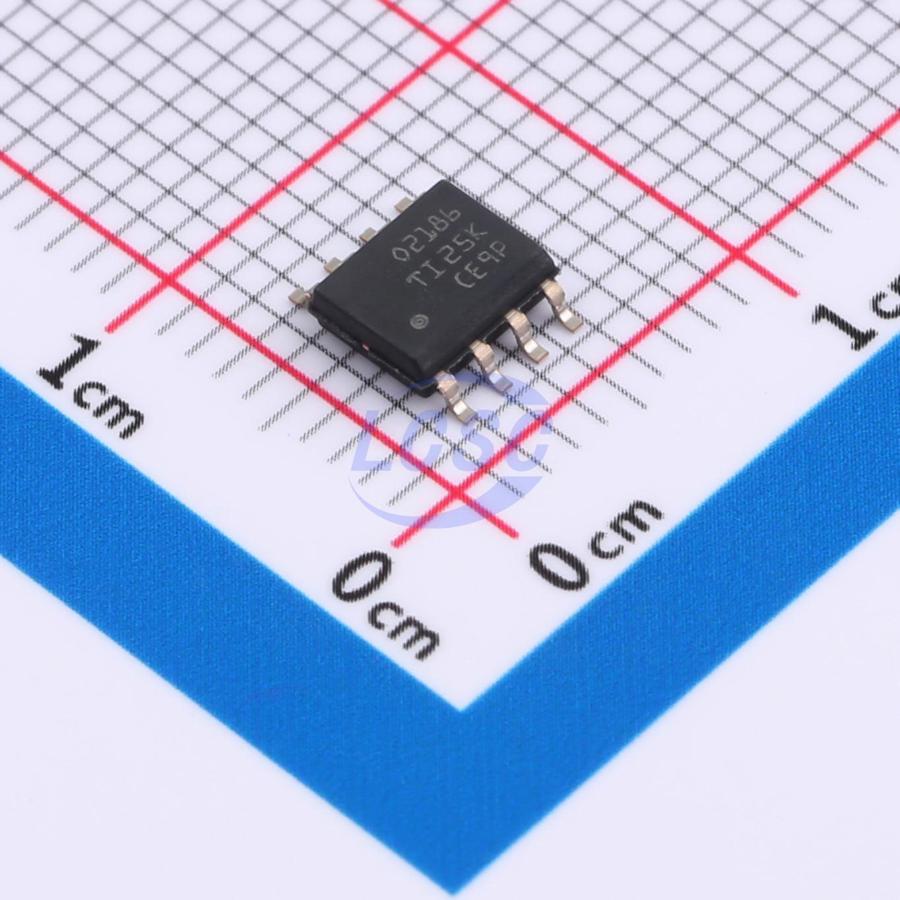

OPA2186DR

20mA 2 10uV 350V/ms 550pA 146dB 750kHz 90uA Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS

SOIC-8ROHS3 CompliantActive

OPAx186 Precision, Rail-to-Rail Input/Output, 24-V, Zero-Drift Operational Amplifiers

Manufacturer: TI
Manufacturer part #: OPA2186DR
Store part #: C7473287
Package / case: SOIC-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,503 in stock

#C7473287

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹269.07	₹269.07
10+	₹238.07	₹2,380.70
30+	₹215.95	₹6,478.50
100+	₹196.00	₹19,600.00
500+	₹186.69	₹93,345.00
1,000+	₹183.00	₹1,83,000.00

Quantity (min 1)

1 × ₹269.07

₹269.07

excl. GST

₹317.50 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA2186DR

₹269.07 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 20mA
Number of Channels: 2
Vos - Input Offset Voltage: 10uV
Slew Rate: 350V/ms
Input Offset Current(Ios): 1.25nA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 550pA
Common Mode Rejection Ratio(CMRR): 146dB
Input Offset Voltage Drift(Vos TC): 40nV/℃
Gain Bandwidth Product: 750kHz
Quiescent Current: 90uA
Features: Zero drift / auto-zero;EMI filtering/RF suppression;ESD protection
Input Voltage Noise Density: 120nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: 2.25V~12V;-12V~-2.25V
Single Supply: 4.5V~24V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.965 g

Overview

The OPA186, OPA2186, and OPA4186 (OPAx186) are low-power, 24-V, rail-to-rail input and output, zerodrift operational amplifiers (op amps). These op amps feature only 10 μv of offset voltage (maximum) and 0.04 μV/°C of offset voltage drift over temperature (maximum). These devices are a great choice for precision instrumentation, signal measurement, and active-filtering applications. The low quiescent current consumption of 90 μA makes the OPAx186 an excellent option for powersensitive applications, such as battery-powered instrumentation and portable systems.

Applications

PC PSU and game console unit
Merchant DC/DC
Flow transmitter
Pressure transmitter
Merchant battery charger
Electricity meter

Key features

High precision
Offset drift: 0.01 μV/°C
Low offset voltage: 1 μV
Low quiescent current: 90 μA
Excellent dynamic performance
Gain bandwidth: 750 kHz
Slew rate: 0.35 V/μs
Robust design
RFI/EMI filtered inputs
Rail-to-rail input/output
Supply range: 4.5 V to 24 V
Temperature: -40°C to +125°C
