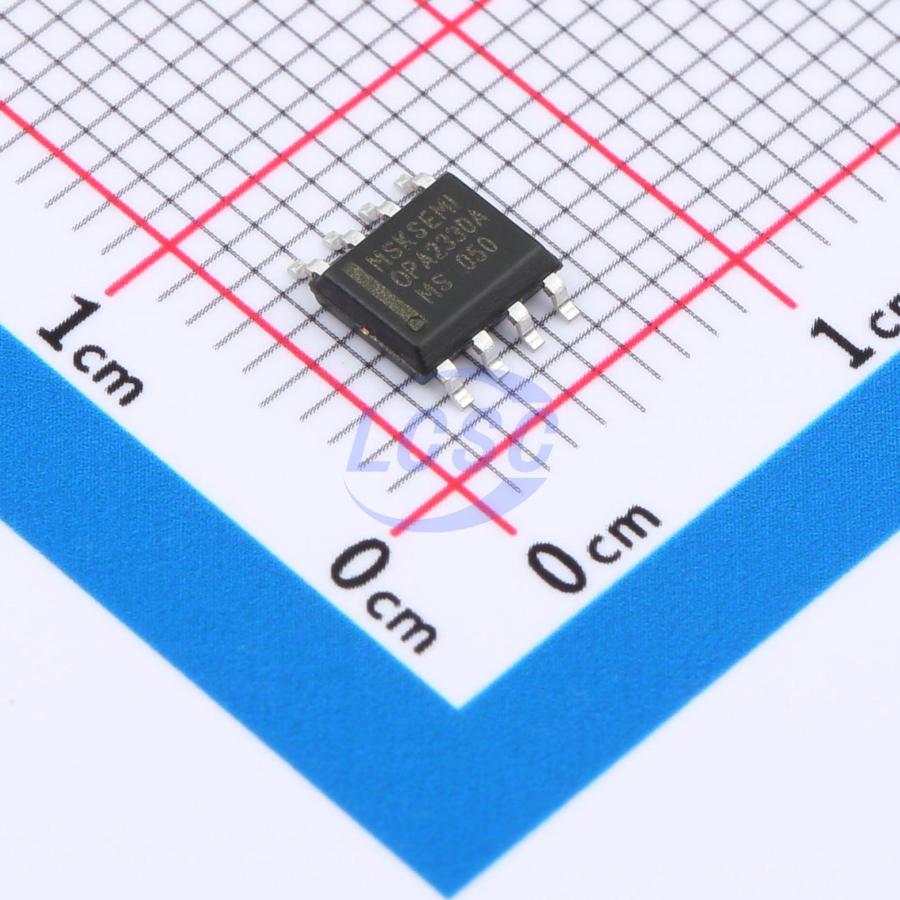

OPA2330AIDR-MS

21mA 2 1uV 0.1V/us 1pA 135dB 25uA 550kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps

SOP-8RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: OPA2330AIDR-MS
Store part #: C22462563
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,609 in stock

#C22462563

Stock & price checked 25 h ago

Quantity	Unit price	Pack price
1+	₹49.26	₹49.26
10+	₹43.74	₹437.40
30+	₹41.08	₹1,232.40
100+	₹38.22	₹3,822.00
500+	₹36.58	₹18,290.00
1,000+	₹35.76	₹35,760.00

Quantity (min 1)

1 × ₹49.26

₹49.26

excl. GST

₹58.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA2330AIDR-MS

₹49.26 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 21mA
Number of Channels: 2
Vos - Input Offset Voltage: 1uV
Slew Rate: 0.1V/us
Input Offset Current(Ios): 1pA
Operating Temperature: -25℃~+125℃
Ib - Input Bias Current: 1pA
Common Mode Rejection Ratio(CMRR): 135dB
Input Offset Voltage Drift(Vos TC): 10nV/℃
Quiescent Current: 25uA
Gain Bandwidth Product: 550kHz
Features: Zero drift / auto-zero;Reverse-phase input protection;Built-in compensation;ESD protection
Input Voltage Noise Density: 79.4nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-900mV;900mV~2.75V
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.176 g

Overview

The OPAx330 series of CMOS operational amplifiers use a proprietary auto - calibration technique to simultaneously provide very low offset voltage (±4μV, maximum) and near - zero drift over time and temperature. These miniature, high - precision, low quiescent current (13.5uA) amplifiers offer high impedance inputs that have a common - mode range 100mV beyond the rails, and rail - to - rail output that swings within 50mV of the rails. Single or dual supplies as low as 1.8V (±0.9V) and up to 5.5V (+2.75V) can be used. These devices are optimized for low voltage, single - supply operation. The OPA330AIDBVR - MS (single version) is available in the 5 - pin SOT23, while the OPA2330AIDR - MS (dual version) is available in the 8 - pin SOIC and packages. All versions are specified for operation from - 25°C to 125°C.

Applications

Temperature Sensors
Active Filtering
Transducers
Electronic Scales
Temperature Measurements
Medical Instrumentation
Battery - Powered Instruments
Handheld Test Equipment

Key features

Input Offset Voltage: ±1μV (Typ)
Zero Drift: 0.01μV/°C (Typ)
0.01Hz - 10Hz Noise: 1.5μVpp
Quiescent Current: 13.5μA
High Open - Loop Gain: 150dB
Single or Dual Supply Operation
Supply Voltage: 1.8V to 5.5V
