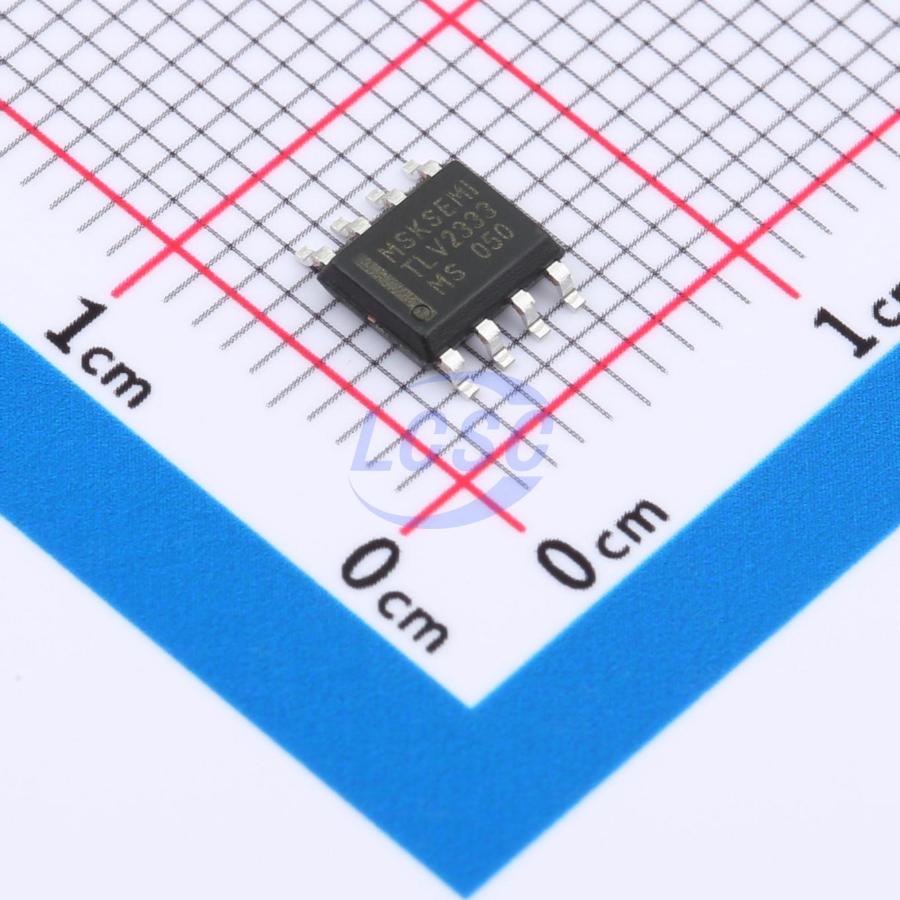

TLV2333IDR-MS
21mA 2 1uV 0.1V/us 1pA 135dB 25uA 550kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TLV2333IDR-MS
- Store part #
- C22462562
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,368 in stock
#C22462562
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹46.56 | ₹46.56 |
| 10+ | ₹40.99 | ₹409.90 |
| 30+ | ₹38.31 | ₹1,149.30 |
| 100+ | ₹35.64 | ₹3,564.00 |
| 500+ | ₹33.99 | ₹16,995.00 |
| 1,000+ | ₹32.96 | ₹32,960.00 |
1 × ₹46.56
₹46.56
excl. GST
₹54.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TLV2333IDR-MS
₹46.56 for 1 + GST
Specifications
- Output Current
- 21mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 1uV
- Slew Rate
- 0.1V/us
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -25℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 135dB
- Input Offset Voltage Drift(Vos TC)
- 10nV/℃
- Quiescent Current
- 25uA
- Gain Bandwidth Product
- 550kHz
- Features
- Zero drift / auto-zero;Reverse-phase input protection;Built-in compensation
- Input Voltage Noise Density
- 79.4nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
The TLV×333 series of CMOS operational amplifiers use a proprietary auto - calibration technique to simultaneously provide very low offset voltage (±4uV maximum) and near - zero drift over time and temperature. These miniature, high - precision, low quiescent current (13.5uA) amplifiers offer high impedance inputs that have a common - mode range 100mV beyond the rails, and rail - to - rail output that swings within 50mV of the rails. Single or dual supplies as low as 1.8V (±0.9V) and up to 5.5V (+2.75V) can be used. These devices are optimized for low voltage, single - supply operation. The TLV333IDBVR - MS (single version) is available in the 5 - pin SOT23, while the TLV2333IDR - MS (dual version) is available in the 8 - pin SOIC and packages. All versions are specified for operation from - 25°C to 125°C. The TLV×333 is a family of Zero - Drift, low - power, rail - to - rail input and output operational amplifiers. These devices operate from 1.8V to 5.5V, are unity - gain stable, and are suitable for a wide range of general - purpose applications. The Zero - Drift architecture provides ultra low offset voltage and near - zero offset voltage drift. The TLV×333 are unity - gain stable and free from unexpected output phase reversal. These devices use a proprietary auto - calibration technique to provide low offset voltage and very low drift over time and temperature. The TLV×333 input common - mode voltage range extends 0.1V beyond the supply rails. The TLVx333 is designed to cover the full range without the troublesome transition region found in some other rail - to - rail amplifiers. The TLVx333 device has a single functional mode. The device is powered on as long as the power supply voltage is between 1.8V (±0.9V) and 5.5V (±2.75V).
Applications
- Temperature Sensors
- Active Filtering
- Transducers
- Electronic Scales
- Temperature Measurements
- Medical Instrumentation
- Battery - Powered Instruments
- Handheld Test Equipment
Key features
- Input Offset Voltage: ±1μV (Typ)
- Zero Drift: 0.01μV/°C (Typ)
- 0.01Hz - 10Hz Noise: 1.5μVpp
- Quiescent Current: 13.5μA
- High Open - Loop Gain: 150dB
- Single or Dual Supply Operation
- Supply Voltage: 1.8V to 5.5V
- Rail - to - Rail Input/Output
- Micro Size Packages: TLV333IDBVR - MS: SOT - 23 - 5; TLV2333IDR - MS: SOP - 8
