UMWDatasheet (PDF)

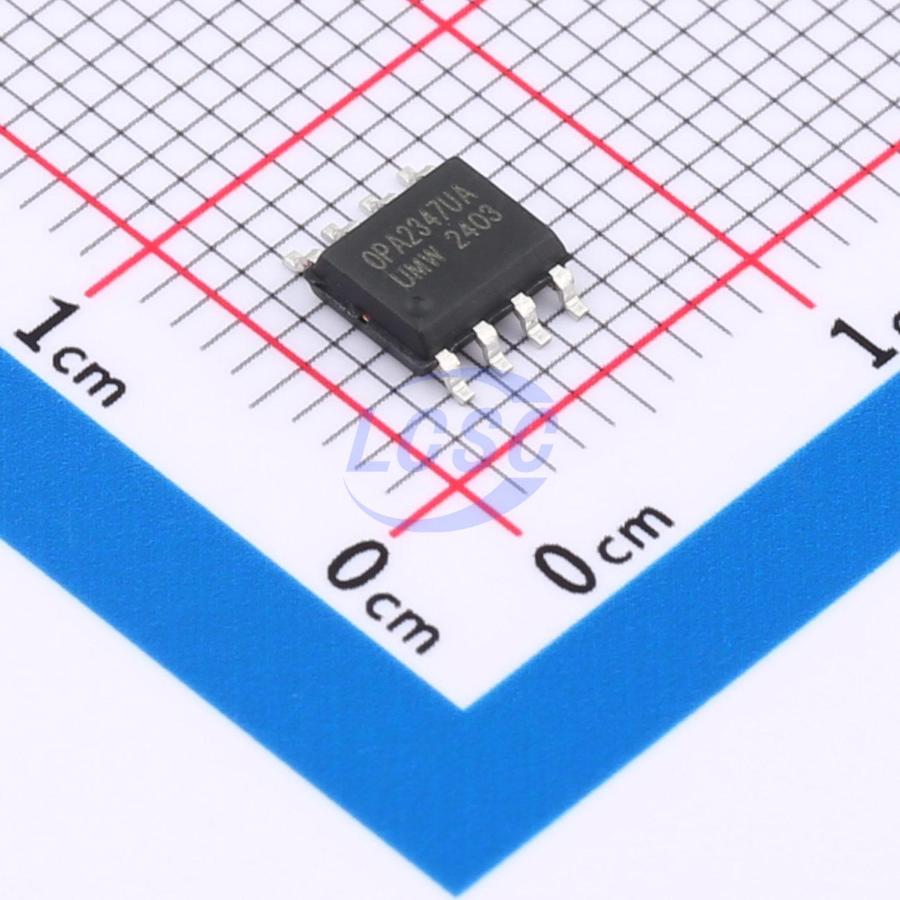

OPA2347UA(UMW)
17mA 2 2mV 170V/ms 80dB 0.5pA 20uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SOP-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-8ROHS3 CompliantActive
Low-Power, Rail-to-Rail Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- OPA2347UA(UMW)
- Store part #
- C21713893
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,370 in stock
#C21713893
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.46 | ₹92.30 |
| 50+ | ₹16.13 | ₹806.50 |
| 150+ | ₹15.12 | ₹2,268.00 |
| 500+ | ₹13.88 | ₹6,940.00 |
| 2,500+ | ₹13.32 | ₹33,300.00 |
| 5,000+ | ₹12.99 | ₹64,950.00 |
5 × ₹18.46
₹92.30
excl. GST
₹108.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
OPA2347UA(UMW)
₹92.30 for 5 + GST
Specifications
- Output Current
- 17mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 170V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -55℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 0.5pA
- Input Offset Voltage Drift(Vos TC)
- 3uV/℃
- Quiescent Current
- 20uA
- Gain Bandwidth Product
- 350kHz
- Input Voltage Noise Density
- 60nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.3V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
The OPA347 features a compact form factor and ultra-low power consumption (34μA max per channel), making it ideal for portable and battery-powered applications. Its input range extends 200mV beyond the supply rails, while the output swings to within 5mV of the supply rails. The OPA347 also offers an excellent speed-to-power ratio with a bandwidth of 350kHz. The device operates from a single or dual supply of 2.3V to 5.5V, and all versions are rated for an operating temperature range of -55℃ to +125℃.
Applications
- Portable devices
- Battery-powered devices
- Two-wire transmitters
- Smoke detectors
- Carbon monoxide detectors
Key features
- Low quiescent current IQ: 20μA
- High speed/power ratio, bandwidth: 350kHz
- Rail-to-rail input and output
- Single supply: 2.3V ~ 5.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OPA2348AIDR(UMW)#C22469435UMW · SOP-8 | UMW | SOP-8 | 570 | ₹21.55 · 570 in stock | View |
 | OPA2348AID(UMW)#C21713887UMW · SOP-8 | UMW | SOP-8 | 1,425 | ₹22.35 · 1,425 in stock | View |
 | TSV632AIDT(UMW)#C22373385UMW · SOP-8 | UMW | SOP-8 | 1,845 | ₹24.58 · 1,845 in stock | View |
 | TSV6392AIDT(UMW)#C22374965UMW · SOP-8 | UMW | SOP-8 | 2,475 | ₹34.76 · 2,475 in stock | View |
 | TSV6392IDT(UMW)#C22374966UMW · SOP-8 | UMW | SOP-8 | 2,500 | ₹34.76 · 2,500 in stock | View |
