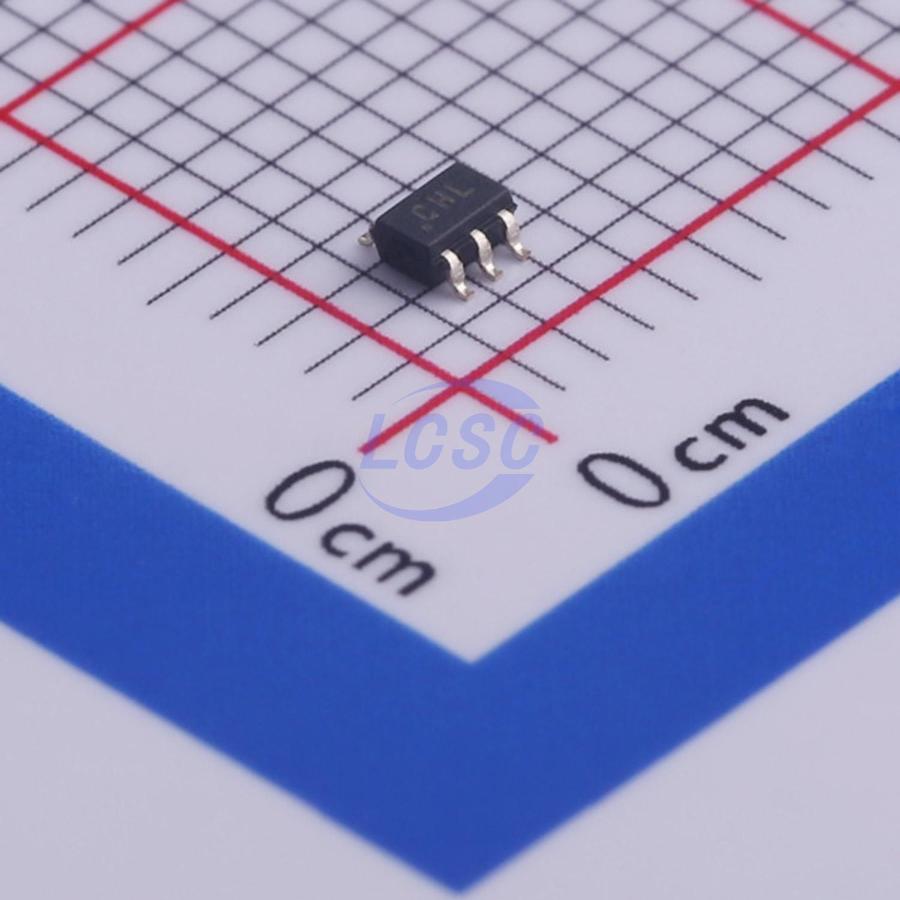

OPA330AIDCKR

5mA 1 8uV 0.16V/us 115dB 200pA 21uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5ROHS3 CompliantActive

OPAx330 CMOS Operational Amplifiers Zero-Drift Series

Manufacturer: TI
Manufacturer part #: OPA330AIDCKR
Store part #: C473401
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,797 in stock

#C473401

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹176.04	₹176.04
10+	₹141.22	₹1,412.20
30+	₹123.82	₹3,714.60
100+	₹106.62	₹10,662.00
500+	₹96.39	₹48,195.00
1,000+	₹90.96	₹90,960.00

Quantity (min 1)

1 × ₹176.04

₹176.04

excl. GST

₹207.73 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA330AIDCKR

₹176.04 for 1 + GST

Specifications

Output Current: 5mA
Number of Channels: 1
Vos - Input Offset Voltage: 8uV
Slew Rate: 0.16V/us
Input Offset Current(Ios): 400pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 115dB
Ib - Input Bias Current: 200pA
Input Offset Voltage Drift(Vos TC): 20nV/℃
Quiescent Current: 21uA
Gain Bandwidth Product: 350kHz
Features: EMI filtering/RF suppression;Zero drift / auto-zero;Reverse-phase input protection
Input Voltage Noise Density: 55nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.015 g

Overview

The OPA330 series of CMOS operational amplifiers offer precision performance at a very competitive price. These devices are members of the Zero-Drift family of amplifiers which use a proprietary autocalibration technique to simultaneously provide low offset voltage (50-μV maximum) and near-zero drift over time and temperature at only 35 μA (maximum) of quiescent current. The OPA330 family features rail-to-rail input and output in addition to near-flat 1/f noise, making this amplifier ideal for many applications and much easier to design into a system. These devices are optimized for low-voltage operation as low as 1.8 V (±0.9V) and up to 5.5 V (±2.75V).

Applications

Battery-Powered Instruments
Temperature Measurements
Transducer Applications
Electronic Scales
Medical Instrumentation
Handheld Test Equipment
Current Sense

Key features

Unmatched Price Performance
Low Offset Voltage: 50 μV (Maximum)
Zero Drift: 0.25 μV/°C (Maximum)
Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
Quiescent Current: 35 μA (Maximum)
Supply Voltage: 1.8 V to 5.5 V
Rail-to-Rail Input and Output
Internal EMI Filtering
microSize Packages: DSBGA, SC70, VQFN
