TIDatasheet (PDF)

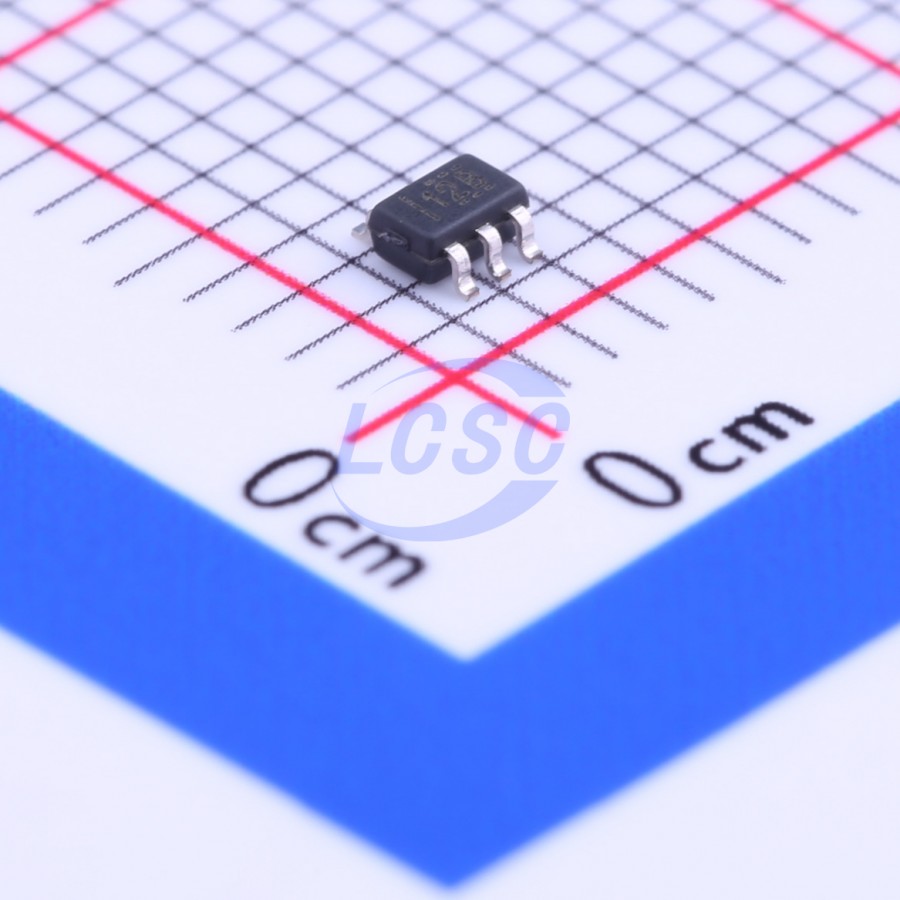

TLV333IDCKR
5mA 1 2uV 0.16V/us 115dB 70pA 17uA 350kHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS
SC-70-5ROHS3 CompliantActive
CMOS Operational Amplifiers Zero-Drift Series
- Manufacturer
- TI
- Manufacturer part #
- TLV333IDCKR
- Store part #
- C181502
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,290 in stock
#C181502
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.04 | ₹210.20 |
| 50+ | ₹33.09 | ₹1,654.50 |
| 150+ | ₹29.25 | ₹4,387.50 |
| 500+ | ₹22.86 | ₹11,430.00 |
| 3,000+ | ₹20.73 | ₹62,190.00 |
| 6,000+ | ₹19.45 | ₹1,16,700.00 |
5 × ₹42.04
₹210.20
excl. GST
₹248.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TLV333IDCKR
₹210.20 for 5 + GST
Specifications
- Output Current
- 5mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2uV
- Slew Rate
- 0.16V/us
- Input Offset Current(Ios)
- 140pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 115dB
- Ib - Input Bias Current
- 70pA
- Input Offset Voltage Drift(Vos TC)
- 20nV/℃
- Quiescent Current
- 17uA
- Gain Bandwidth Product
- 350kHz
- Features
- Zero drift / auto-zero;EMI filtering/RF suppression;Reverse-phase input protection
- Input Voltage Noise Density
- 55nV/√Hz@1kHz
- Dual Supply
- -2.75V~-900mV;900mV~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The TLVx333 series of CMOS operational amplifiers offer precision performance at a very competitive price. These devices are members of the zero-drift family of amplifiers that uses a proprietary autocalibration technique to simultaneously provide low offset voltage (15 μV, max) and near-zero drift over time and temperature at only 28 μA (max) of quiescent current. The TLVx333 family features rail-to-rail input and output in addition to near-flat 1/f noise, making this amplifier ideal for many applications and much easier to design into a system. These devices are optimized for low-voltage operation as low as 1.8 V (±0.9V) and up to 5.5 V (±2.75V).
Applications
- Battery-Powered Instruments
- Temperature Measurements
- Transducer Applications
- Electronic Scales
- Medical Instrumentation
- Handheld Test Equipment
- Current Sense
Key features
- Unmatched Price Performance
- Low Offset Voltage: 2 μV
- Zero Drift: 0.02 μV/°C
- Low Noise: 1.1 μVPP, 0.1 Hz to 10 Hz
- Quiescent Current: 17 μA
- Supply Voltage: 1.8 V to 5.5 V
- Rail-to-Rail Input/Output
- Internal EMI Filtering
- microSize Packages: SOT23, SC70
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| OPA333AMDCKREP#C2057422TI · SC-70-5 | TI | SC-70-5 | 118 | ₹1,104.60 · 118 in stock | View | |
| OPA330AIDCKT#C2866007TI · SC-70-5 | TI | SC-70-5 | 44 | ₹228.98 · 44 in stock | View | |
 | OPA330AIDCKR#C473401TI · SC-70-5 | TI | SC-70-5 | 1,797 | ₹176.04 · 1,797 in stock | View |
 | OPA333AIDCKT#C2057324TI · SC-70-5 | TI | SC-70-5 | 170 | ₹164.14 · 170 in stock | View |
 | OPA333AIDCKR#C44193TI · SC-70-5 | TI | SC-70-5 | 2,288 | ₹173.86 · 2,288 in stock | View |
