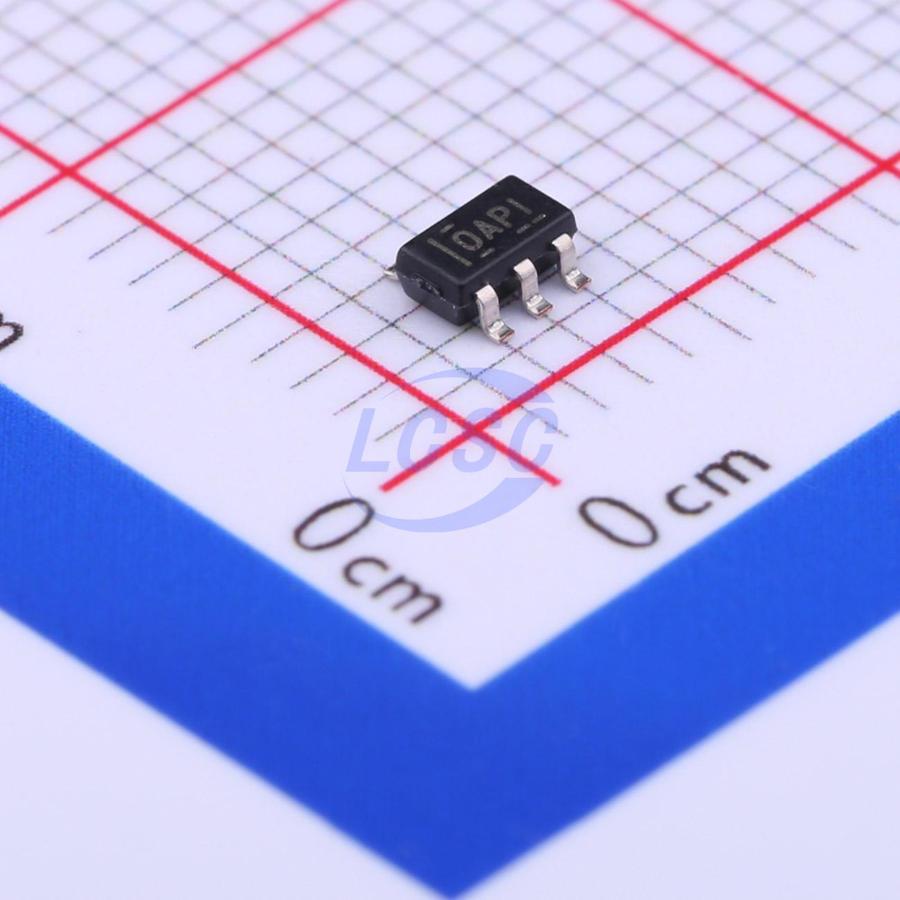

OPA335AIDBVR

The OPA334 and OPA335 series of CMOS operational amplifiers use auto-zeroing techniques to simultaneously provide very low offset voltage (5μV max), and near-zero drift over time and temperature. These miniature, high-precision, low quiescent current amplifiers offer high input impedance and rail-to-rail output swing. Single or dual supplies as low as +2.7V (±1.35V) and up to +5.5V (±2.75V) may be used. These op amps are optimized for low-voltage, single-supply operation. The OPA334 family includes a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current of 2μA. When the Enable pin is connected high, the amplifier is active. Connecting Enable low disables the amplifier, and places the output in a high impedance state. The OPA334 (single version with shutdown) comes in MicroSIZE SOT23-6. The OPA335 (single version without shutdown) is available in SOT23-5, and SO-8. The OPA2334 (dual version with shutdown) comes in MicroSIZE MSOP-10. The OPA2335 (dual version without shutdown) is offered in the MSOP-8 and SO-8 packages. All versions are specified for operation from -40℃ to +125℃.

Applications

• TRANSDUCER APPLICATIONS
• TEMPERATURE MEASUREMENT
• ELECTRONIC SCALES
• MEDICAL INSTRUMENTATION
• BATTERY-POWERED INSTRUMENTS
• HANDHELD TEST EQUIPMENT

Key features

• LOW OFFSET VOLTAGE: 5μV (max)
• ZERO DRIFT: 0.05μV/℃ (max)
• QUIESCENT CURRENT: 285μA
• SINGLE-SUPPLY OPERATION
• SINGLE AND DUAL VERSIONS
• SHUTDOWN
• MicroSIZE PACKAGES
