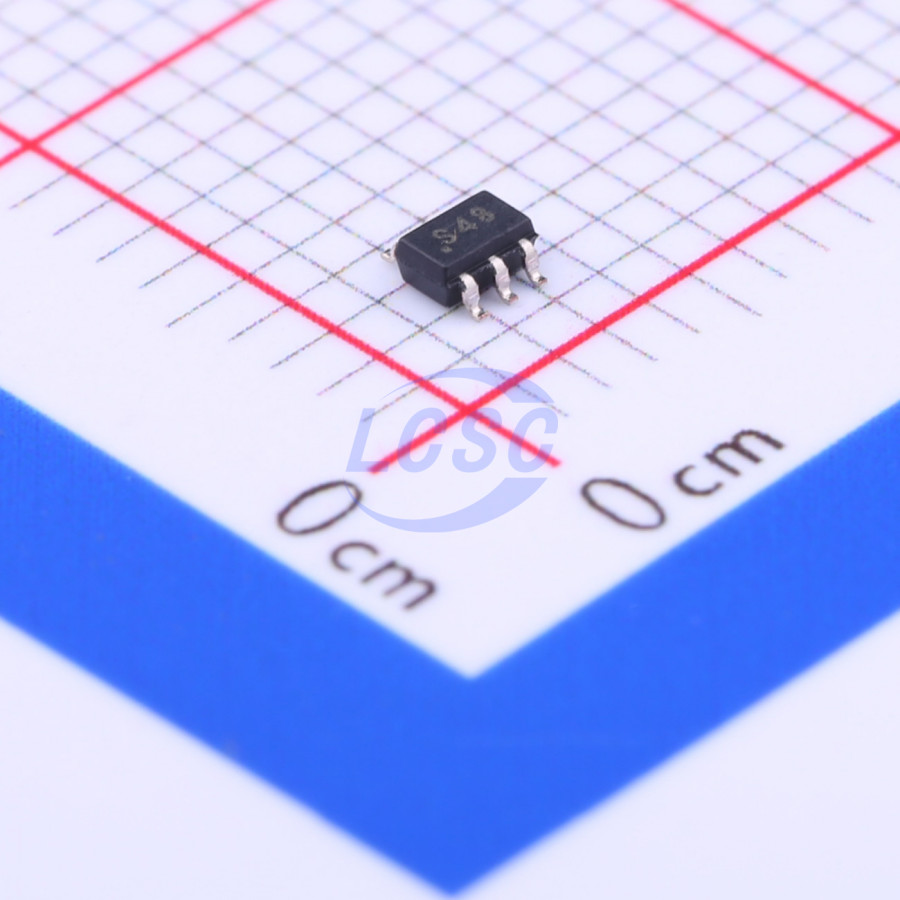

OPA348AIDCKR

10mA 1 5mV 1V/us 82dB 10pA 45uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5ROHS3 CompliantActive

1-MHz, 45-uA, CMOS, Rail-to-Rail Operational Amplifiers

Manufacturer: TI
Manufacturer part #: OPA348AIDCKR
Store part #: C353160
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,452 in stock

#C353160

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹61.80	₹61.80
10+	₹48.36	₹483.60
30+	₹42.72	₹1,281.60
100+	₹35.56	₹3,556.00
500+	₹32.53	₹16,265.00
1,000+	₹30.57	₹30,570.00

Quantity (min 1)

1 × ₹61.80

₹61.80

excl. GST

₹72.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA348AIDCKR

₹61.80 for 1 + GST

Specifications

Output Current: 10mA
Number of Channels: 1
Vos - Input Offset Voltage: 5mV
Slew Rate: 1V/us
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 82dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 175uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Input Voltage Noise Density: 35nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The OPAx348 series of amplifiers are single-supply, low-power, CMOS operational amplifiers. Featuring an extended bandwidth of 1 MHz, and a supply current of 45 µA, the OPAx348 series is useful for low-power applications on single supplies of 2.1 V to 5.5 V. A low supply current of 45 µA and an input bias current of 0.5 pA, makes the OPAx348 series an optimal candidate for low-power applications such as smoke detectors and other high-impedance sensors. The OPA348 is available in the miniature 5-pin SC70 (SOT), 5-pin SOT-23 (SOT), and 8-pin SO (SOIC) packages. The OPA2348 is available in 8-pin SOT-23 (SOT) and 8-pin SO (SOIC) packages, and the OPA4348 is offered in space-saving 14-pin TSSOP and 14-pin SO (SOIC) packages. The extended temperature range of -40℃ to +125℃ over all supply voltages offers design flexibility.

Applications

Portable Equipment
Battery-Powered Equipment
Smoke Alarms
CO Detectors
Medical Instrumentation

Key features

Low IQ: 45 µA (Typical)
Rail-To-Rail Input and Output
Single Supply: 2.1 V to 5.5 V
Input Bias Current: 0.5 pA
Micro Size Packages:
5-Pin SC70
8-Pin SOT-23
14-Pin TSSOP
Excellent Bandwidth-to-Power Consumption Trade-off
Number of Channels:
OPA348: 1
OPA2348: 2
OPA4348: 4
