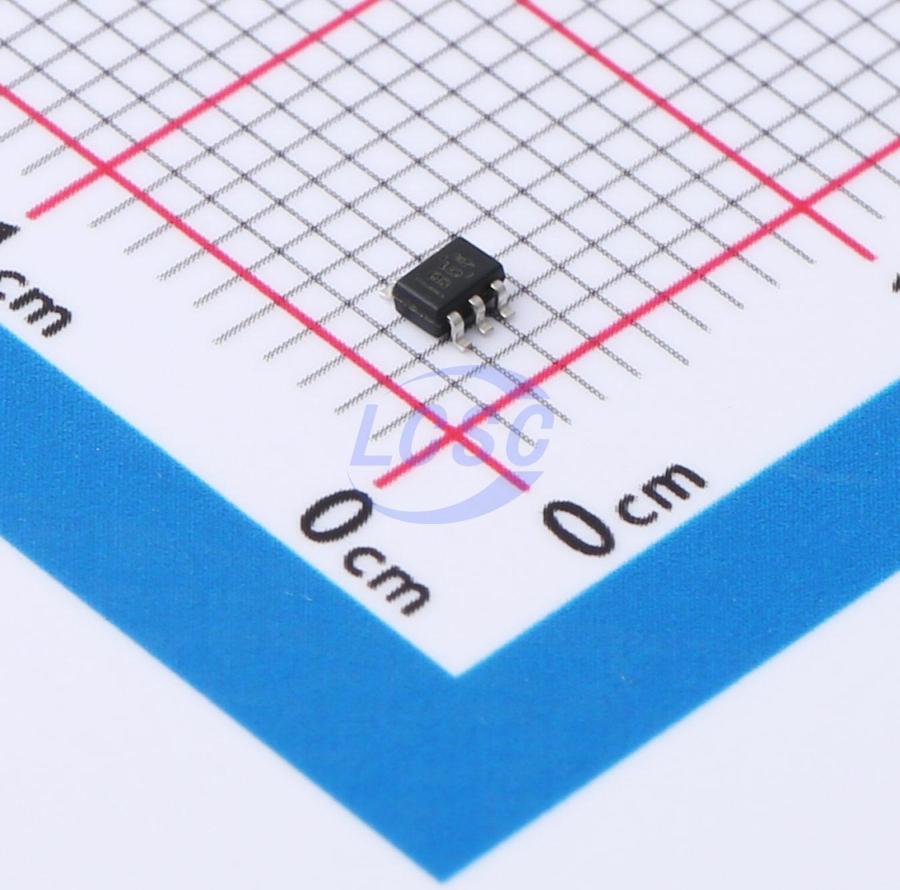

OPA379AIDCKR

5mA 1 1.5mV 30V/ms 100dB 5pA 2.9uA 90kHz Rail-to-Rail Input, Rail-to-Rail Output SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5ROHS3 CompliantActive

Micropower, Low-voltage Operational Amplifiers

Manufacturer: TI
Manufacturer part #: OPA379AIDCKR
Store part #: C576302
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,056 in stock

#C576302

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹146.64	₹146.64
10+	₹120.51	₹1,205.10
30+	₹107.33	₹3,219.90
100+	₹94.38	₹9,438.00
500+	₹86.82	₹43,410.00
1,000+	₹82.71	₹82,710.00

Quantity (min 1)

1 × ₹146.64

₹146.64

excl. GST

₹173.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

OPA379AIDCKR

₹146.64 for 1 + GST

Specifications

Output Current: 5mA
Number of Channels: 1
Vos - Input Offset Voltage: 1.5mV
Slew Rate: 30V/ms
Input Offset Current(Ios): 5pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 5pA
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 2.9uA
Gain Bandwidth Product: 90kHz
Input Voltage Noise Density: 80nV/√Hz@1kHz
Dual Supply: -2.75V~-900mV;900mV~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 1.8V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.035 g

Overview

The OPA379 family of micropower, low-voltage operational amplifiers is designed for battery-powered applications. These amplifiers operate on a supply voltage as low as 1.8V (±0.9V). High-performance, single-supply operation with rail-to-rail capability (10μV max) makes the OPA379 family useful for a wide range of applications. In addition to microSize packages, the OPA379 family of op amps features impressive bandwidth (90kHz), low bias current (5pA), and low noise (80nV/√Hz) relative to the very low quiescent current (5.5μA max). The OPA379 (single) is available in SC70-5, SOT23-5, and SO-8 packages. The OPA2379 (dual) comes in SOT23-8 and SO-8 packages. The OPA4379 (quad) is offered in a TSSOP-14 package. All versions are specified from -40°C to +125°C.

Applications

BATTERY-POWERED INSTRUMENTS
PORTABLE DEVICES
MEDICAL INSTRUMENTS
HANDHELD TEST EQUIPMENT

Key features

LOW NOISE: 2.8μVPP (0.1Hz - 10Hz)
microPower: 5.5μA (max)
LOW OFFSET VOLTAGE: 1.5mV (max)
DC PRECISION:
CMRR: 100dB
PSRR: 2μV/V
AOL: 120dB
WIDE SUPPLY VOLTAGE RANGE: 1.8V to 5.5V
microSize PACKAGES:
SC70-5, SOT23-5, SOT23-8, SO-8, TSSOP-14
