HGSEMI

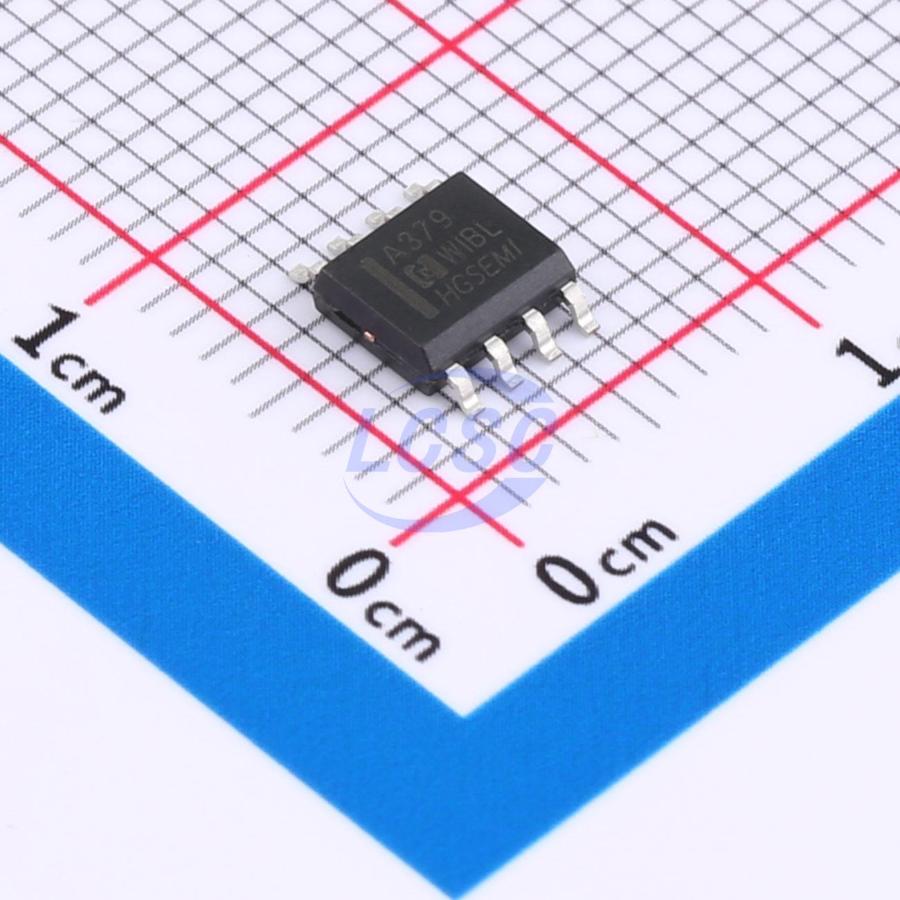

OPA379M/TR

Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5

SOP-8RoHSActive

600nA 100KHz Non-Unity Gain CMOS Rail-to-Rail IO Opamp with RF Filter

Manufacturer: HGSEMI
Manufacturer part #: OPA379M/TR
Store part #: C47411548
Package / case: SOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,453 in stock

#C47411548

Stock & price checked 47 h ago

Quantity	Unit price	Pack price
1+	₹42.85	₹42.85
10+	₹37.47	₹374.70
30+	₹35.10	₹1,053.00
100+	₹32.31	₹3,231.00
500+	₹31.01	₹15,505.00
1,000+	₹30.15	₹30,150.00

Quantity (min 1)

1 × ₹42.85

₹42.85

excl. GST

₹50.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

OPA379M/TR

₹42.85 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 20mA
Number of Channels: 1
Vos - Input Offset Voltage: 3mV
Slew Rate: 40V/ms
Input Offset Current(Ios): 1pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 82dB
Ib - Input Bias Current: 1pA
Input Offset Voltage Drift(Vos TC): 2.5uV/℃
Gain Bandwidth Product: 100kHz
Quiescent Current: 600nA
Features: EMI filtering/RF suppression;Decompensated stable
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-700mV;700mV~2.75V
Single Supply: 1.4V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.269 g

Overview

The OPA379 series operational amplifiers feature a 100kHz gain-bandwidth product, 40V/ms slew rate, stability at gains ≥10, and 600nA quiescent current per amplifier from a 5V supply. Designed to deliver performance in low-voltage, low-noise systems, they are capable of driving heavy loads with rail-to-rail output swing. The input common-mode voltage range includes ground, with a maximum input offset voltage of 3mV. The operating temperature range covers extended industrial grade (-40°C ~ +125°C), with a supply voltage range of 1.4V ~ 5.5V. The OPA379 single-channel variant is available in green SOT-23-5, SOP-8, and MSOP-8 packages; the OPA2379 dual-channel variant is available in green SOP-8 and MSOP-8 packages; the OPA4379 quad-channel variant is available in a green TSSOP-14 package.

Applications

ASIC input or output amplifier
Sensor interface
Smoke detector
Piezoelectric transducer amplifier
Portable systems

Key features

Single-supply operating voltage range: +1.4V ~ +5.5V
Rail-to-rail input/output
Gain bandwidth product: 100kHz (typical)
Low input bias current: 1pA (typical)
Low offset voltage: 3mV (maximum)
Stable at gain ≥ 10
Quiescent current: 600nA per amplifier (typical)
Operating temperature range: -40°C ~ +125°C
Built-in RF EMI filter
Small packages: OPA379 available in SOT23-5, MSOP-8, and SOP-8; OPA2379 available in SOP-8 and MSOP-8; OPA4379 available in TSSOP-14
