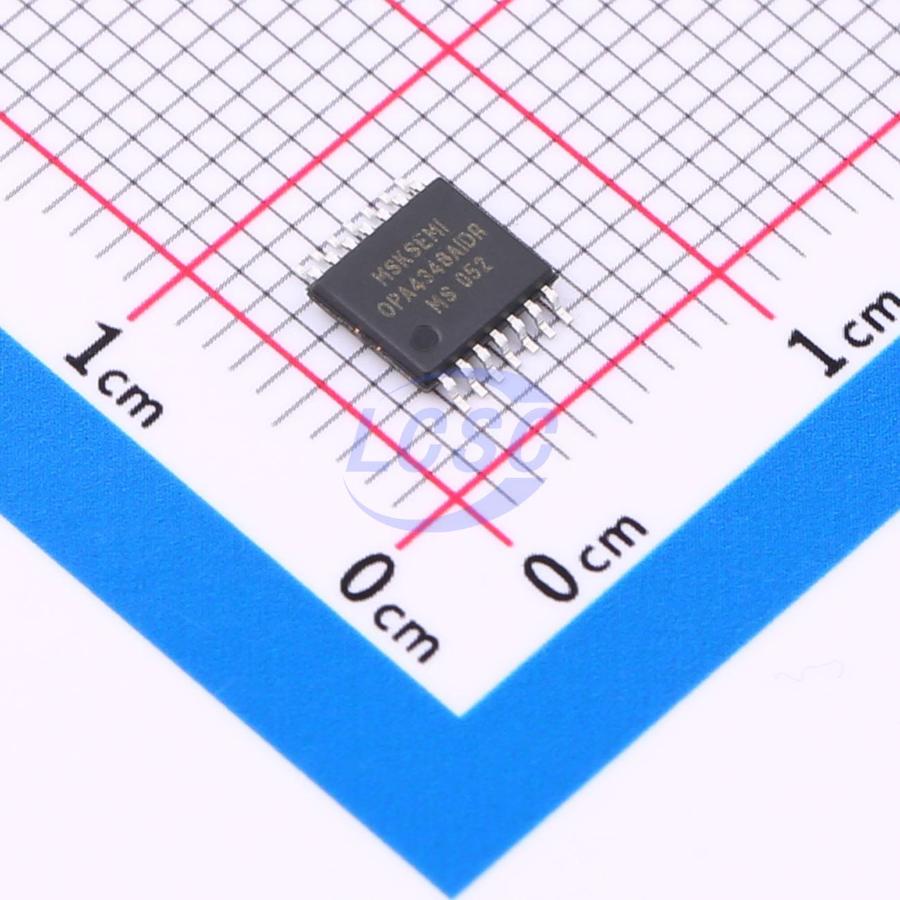

OPA4348AIPWR-MS

OPA4348AIDR-MS/OPA4348AIPWR-MS is a general-purpose, low-offset, high-bandwidth, low-power op amp. It features an excellent 1MHz bandwidth, 1V/μs slew rate, and 28μA quiescent current per amplifier at 5V, making it suitable for a wide range of applications. This op amp is designed to deliver optimal performance in low-voltage and low-power systems, with an input common-mode voltage range that includes ground, a maximum input offset voltage of 3mV, and rail-to-rail output swing capable of driving heavy loads. This series of op amps operates over the full temperature range of -40°C to +125°C from a single or dual supply of 1.5V to 5.5V. The OPA4348AIDR-MS/OPA4348AIPWR-MS devices are low-power, unity-gain stable, rail-to-rail op amps operating from a single supply voltage range of 1.8V to 5.5V (±0.9V to ±2.75V); a supply voltage above the absolute maximum of 6V will permanently damage the amplifier. Rail-to-rail input and output swing significantly increases dynamic range, especially in low-supply applications. Good layout practice requires a 0.1μF bypass capacitor placed close to the supply pins. The OPA4348AIDR-MS/OPA4348AIPWR-MS devices feature internal phase reversal protection — many op amps exhibit phase reversal when the input exceeds the linear common-mode range, but the inputs of these devices are protected against phase reversal due to excessive common-mode voltage, with the output clamped to the corresponding rail.

Applications

• Battery and power control
• Audio output
• Smoke/gas/environmental sensors
• Portable and mobile devices
• Sensor interface
• Active filters
• Medical devices

Key features

• Input offset voltage: 1mV (typical)
• Low supply current: 28μA (Vs = 5V)
• Supply voltage range: 1.8V to 5.5V
• Gain bandwidth: 1MHz (Vs = 5V)
• Slew rate: 1V/μs (Vs = 5V)
• Rail-to-rail input and output
• Low cost
• Compact packages: SOP-14, TSSOP-14
