TIDatasheet (PDF)

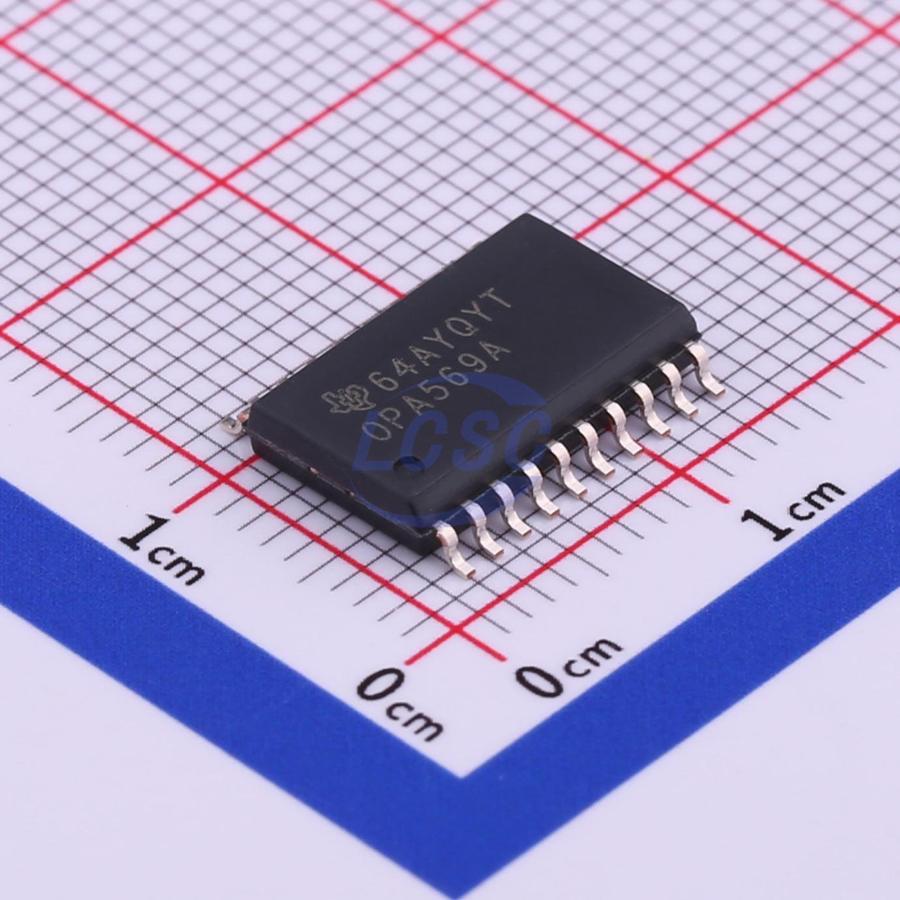

OPA569AIDWPR
2A 1 500uV 1.2V/us 80dB 12pA 1.2MHz 6mA Rail-to-Rail Input, Rail-to-Rail Output SO-20-EP-300mil Instrumentation, Op Amps, Buffer Amps RoHS
SO-20-EP-300milROHS3 CompliantActive
Rail-to-Rail I/O, POWER AMPLIFIER
- Manufacturer
- TI
- Manufacturer part #
- OPA569AIDWPR
- Store part #
- C529573
- Package / case
- SO-20-EP-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,439 in stock
#C529573
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,457.39 | ₹1,457.39 |
| 10+ | ₹1,284.94 | ₹12,849.40 |
| 30+ | ₹1,179.81 | ₹35,394.30 |
| 100+ | ₹1,091.85 | ₹1,09,185.00 |
1 × ₹1,457.39
₹1,457.39
excl. GST
₹1,719.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
OPA569AIDWPR
₹1,457.39 for 1 + GST
Specifications
- Output Current
- 2A
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 1.2V/us
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Ib - Input Bias Current
- 12pA
- Input Offset Voltage Drift(Vos TC)
- 1.3uV/℃
- Gain Bandwidth Product
- 1.2MHz
- Quiescent Current
- 6mA
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 12nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.768 g
Overview
The OPA569 is a low-cost, high-current, operational amplifier designed for driving a wide variety of loads while operating on low-voltage supplies. It operates from either single or dual supplies for design flexibility and has rail-to-rail swing on the input and output. Typical output swing is within 150mV of the supply rails, with output current of 2A. Output swing closer to the rails is achievable with lighter loads. The OPA569 is unity-gain stable, has low dc errors, is easy to use, and free from the phase inversion problems found in some power amplifiers. High performance is maintained at voltage swings near the output rails. The OPA569 provides an accurate user-selected current limit that is set with an external resistor, or digitally adjusted via a Digital-to-Analog Converter. The OPA569 output can be independently disabled using the Enable pin, saving power and protecting the load. The IMONITOR pin provides a 1:475 bidirectional copy of the output current. This eliminates the need for a series current shunt resistor, allowing more voltage to be applied to the load. This pin can be used for simple monitoring, or feedback control to establish constant output current. Two flags are provided: one for warning of thermal overstress, and one for current limit condition. The Thermal Flag pin can be connected to the Enable pin to provide a thermal shutdown solution. Packaged in the PowerPAD package, it is small and easy to heat-sink. The OPA569 is specified for operation over the industrial temperature range, -40°C to +85°C.
Applications
- THERMOELECTRIC COOLER DRIVER
- LASER DIODE PUMP DRIVER
- VALVE, ACTUATOR DRIVER
- SYNCHRO, SERVO DRIVER
- TRANSDUCER EXCITATION
- GENERAL LINEAR POWER BOOSTER FOR OP AMPS
- PARALLELING OPTION FOR HIGHER CURRENT APPLICATIONS
Key features
- HIGH OUTPUT CURRENT: 2A
- OUTPUT SWINGS TO: 150mV of Rails with I₀ = 2A
- THERMAL PROTECTION
- ADJUSTABLE CURRENT LIMIT
- TWO FLAGS: Current Limit and Temperature Warning
- LOW SUPPLY VOLTAGE OPERATION: 2.7V to 5.5V
- SHUTDOWN FUNCTION WITH OUTPUT DISABLE
- SMALL POWER PACKAGE: SO - 20 PowerPAD
