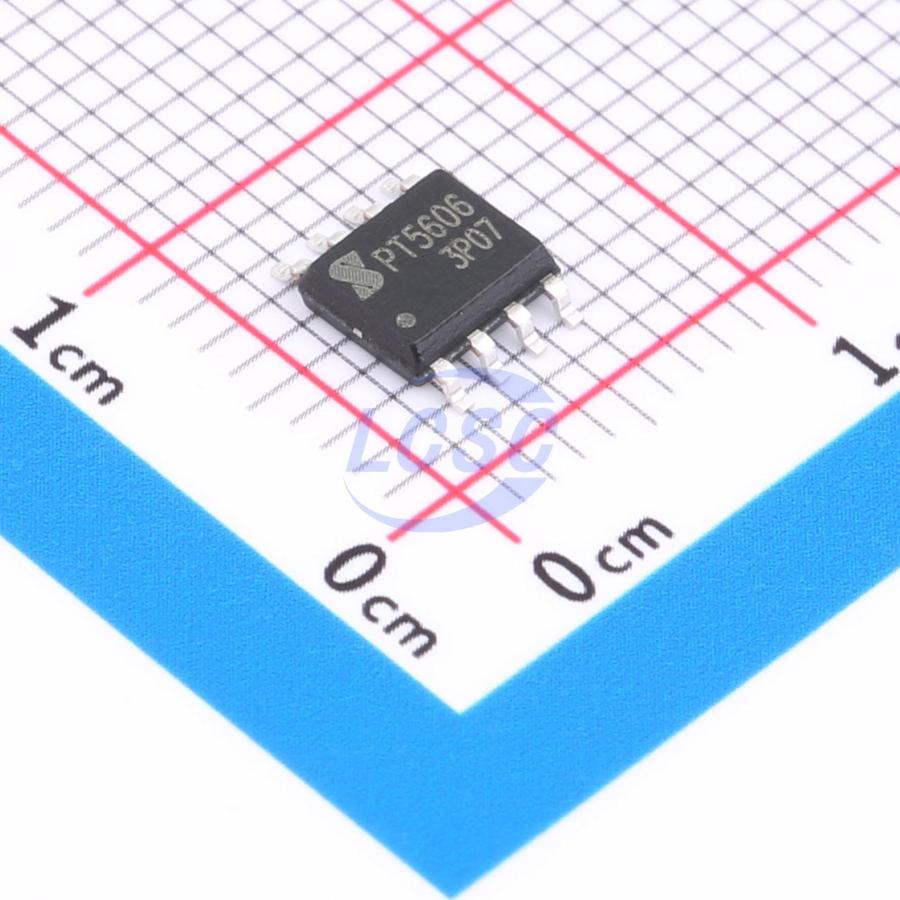

PT5606-S
Half-Bridge Gate Driver IC MOSFET SOP-8
700V integrated bootstrap high-power high-side and low-side motor driver chip
- Manufacturer
- JSMSEMI
- Manufacturer part #
- PT5606-S
- Store part #
- C17701716
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,102 in stock
#C17701716
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹34.77 | ₹34.77 |
| 10+ | ₹30.38 | ₹303.80 |
| 30+ | ₹28.50 | ₹855.00 |
| 100+ | ₹26.18 | ₹2,618.00 |
| 500+ | ₹25.14 | ₹12,570.00 |
| 1,000+ | ₹24.52 | ₹24,520.00 |
1 × ₹34.77
₹34.77
excl. GST
₹41.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PT5606-S
₹34.77 for 1 + GST
Specifications
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.108 g
Overview
This high-speed hair dryer dedicated motor driver IC is a high-voltage, high-speed power MOSFET high- and low-side gate driver. It features independent high-side and low-side referenced output channels. The high-low voltage compatible process enables monolithic integration of both high- and low-side gate drive circuits, with logic input levels compatible down to 3.3V CMOS or LSTTL logic output levels. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply voltage of 700V. Housed in a SOP-8 package, it operates over a temperature range of -40°C to 125°C.
Applications
- High-speed hair dryer motor chip
- Air conditioner/washing machine
- General-purpose inverter
- Inverter drive
Key features
- Bootstrap-operated floating high-side channel
- Maximum operating voltage +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dVs/dt immunity up to ±50V/ns
- Vs negative bias capability down to -9V
- Integrated VCC undervoltage lockout
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay: turn-on/turn-off delay Ton/Toff = 130ns/130ns
- Delay matching time 50ns
- Wide temperature range -40°C to 125°C
- Output source/sink current capability 300mA/600mA
- RoHS compliant
- SOP-8
